Kipor IG2000 User Manual

9. Generator/ Trigger

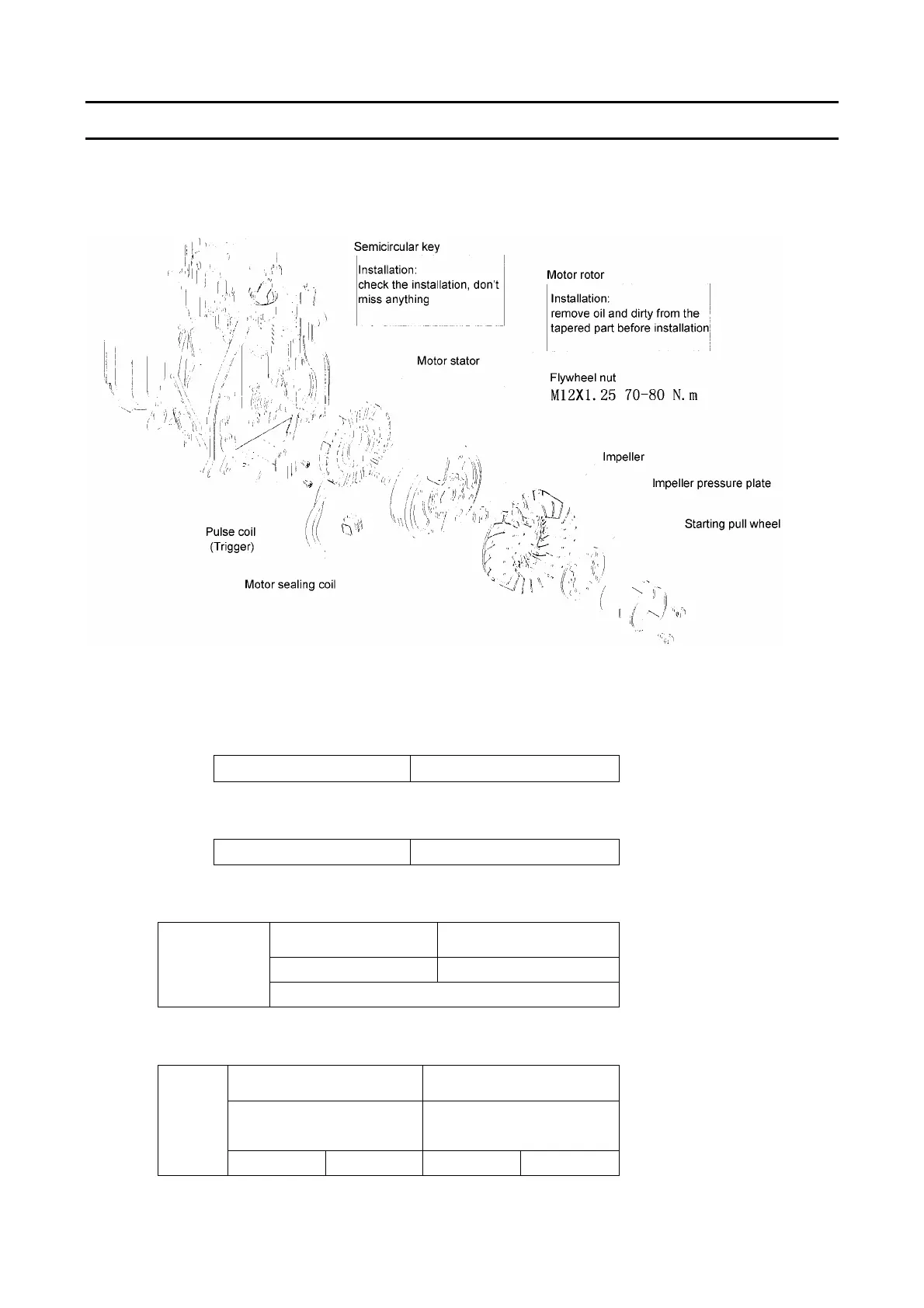

9.1 Generator
Disassembly/Reassembly
9.2 Inspection
(1) Ignition winding
Measure the resistance between the green terminal and yellow/green terminal.
Resistance 0.40-0.55Ω
(2) Outer charging winding
Measure the resistance between the two blue terminals.
Resistance 0.12-0.15Ω
(3) Sub winding
Measure the resistance between the two sub winding terminals.
IG series CG series
White-White Black-White
Resistance
(Ω)
0.15~0.30
(4) Main winding
Measure the resistance among the main winding terminals.
IG series CG series
Black-Black-Black
Black-Yellow\Black-Gree
n\Black-Red
Resist
ance
(Ω)
120V 230/240V 120V 230/240V
