Kipor IG2000 - Piston Assembly and Ring Installation

12.2 Piston

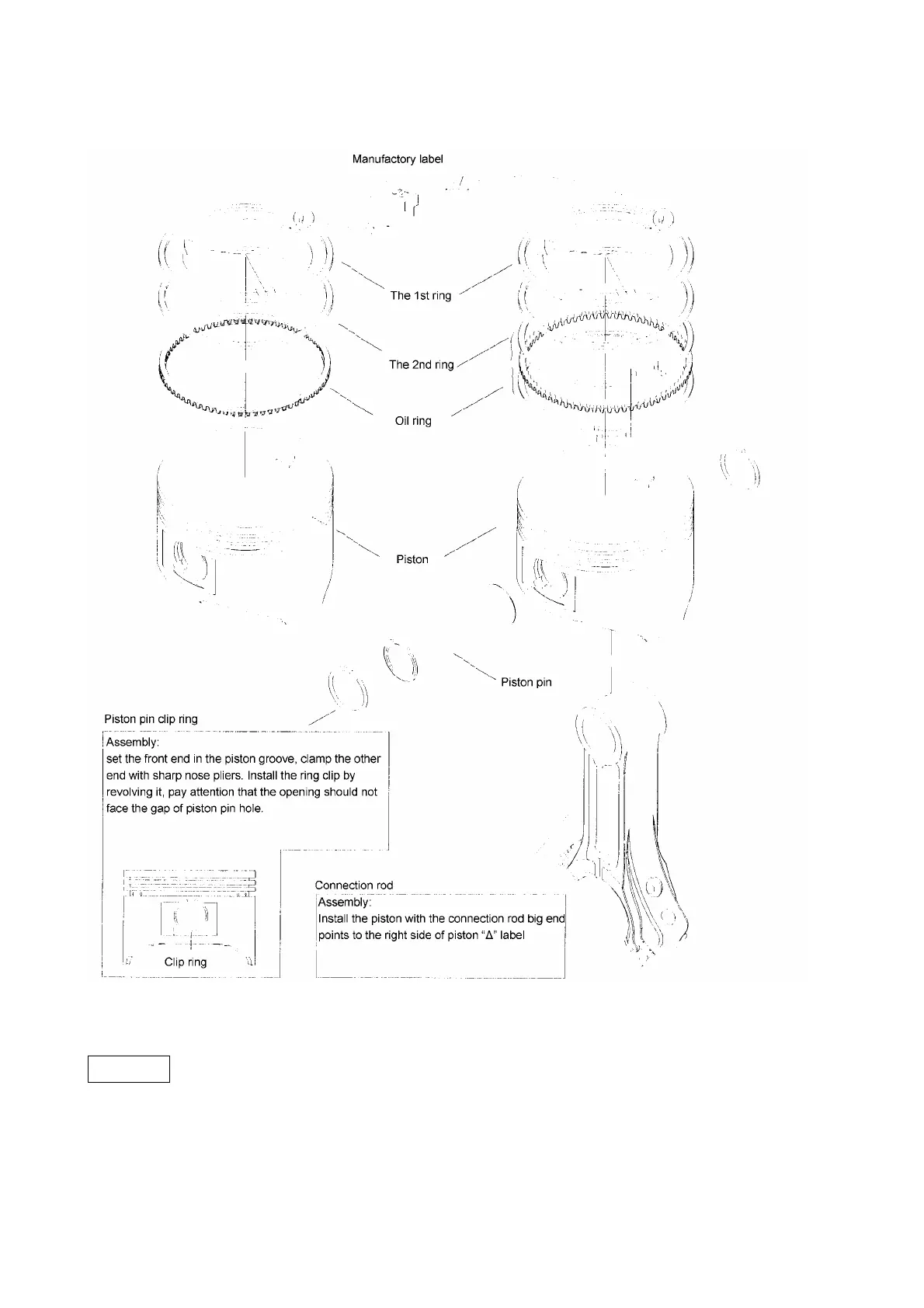

Assembly of piston ring
Caution
● Set the manufactory label upwards.
● Pay attention not to mix the location of the 1
st
ring and 2
nd
ring.
● Check the piston ring for flexibility after installation.
● Stagger each piston ring opening apart piston pin for 120°.
61
