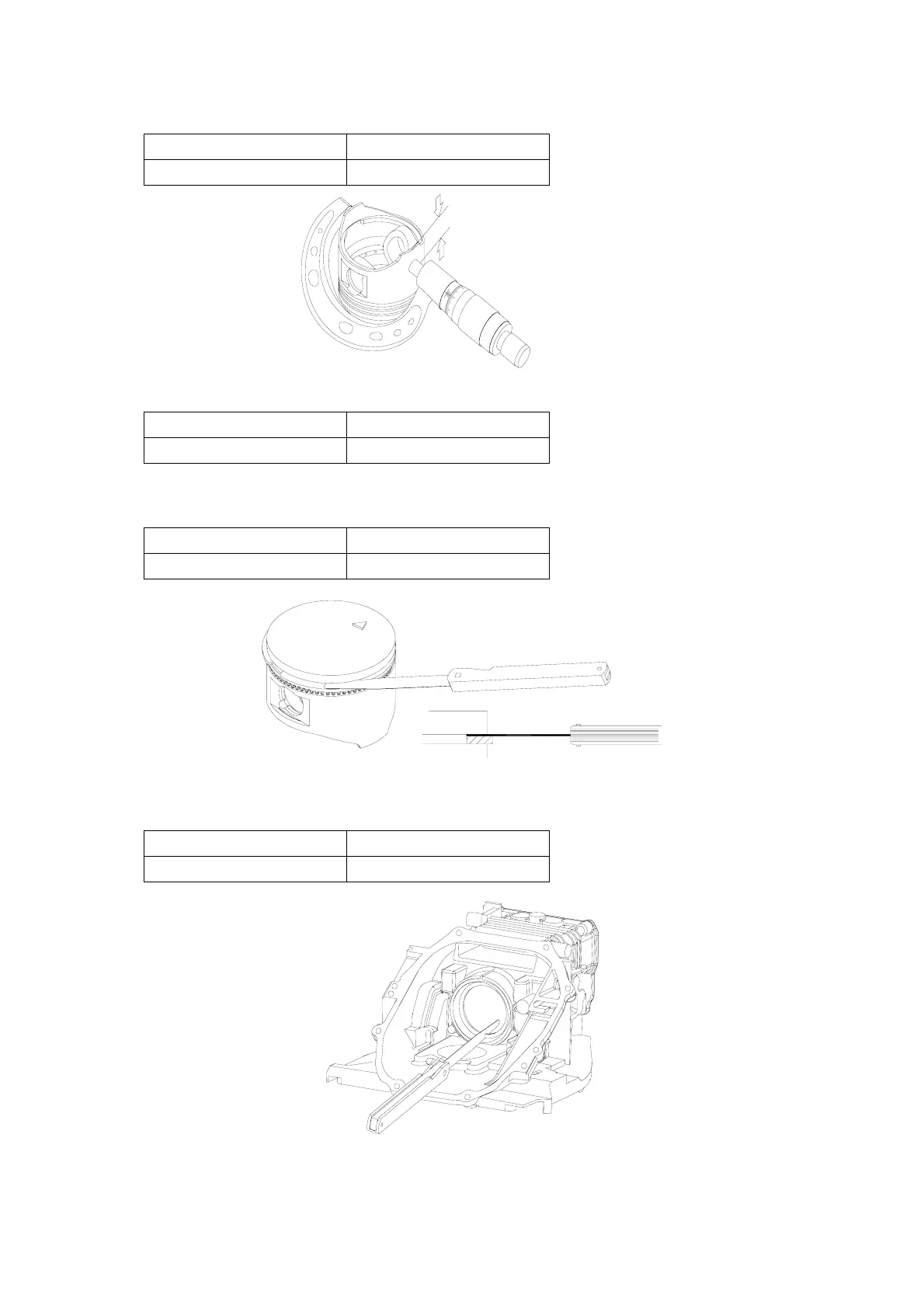

● Piston skirt outer diameter
Standard(mm) Service limit(mm)
57.960-57.980 57.850
10mm
● Clearance between piston and cylinder
Standard(mm) Service limit(mm)
0.020-0.042 0.120
● Side clearance of piston ring
Standard(mm) Service limit(mm)
0.02-0.06 0.15
● Piston ring end clearance
Locate the piston ring into cylinder with piston top, and measure the piston end clearance.
Standard(mm) Service limit(mm)
0.15-0.25 1.0
