Kirby G Series User Manual

10
The Kirby Company
CAUTION:
Do not pick up heavy objects, such as coins, screws, rocks or similar
objects. This may damage the fan.
!
Getting Started
Getting Started
Bag Support Strap/Mini Em-Tor
®
and Belt Lifter
BAGSUPPORTSTRAP
ChecktomakesuretheBagSupportStrap
o
4 is con-
nected to the Top Adaptor
o
5.TheBagSupportStrap
provides the support required for proper operation of
theDisposableFilterBag.
If it is not connected, thread the strap through the small hole
of the Top Adaptor. Then place the hole in the strap over the
stud on the Top Adaptor.
Finally, insert the adaptor and new filter bag into the Outer
PermanentBag
o
1 and close the zipper completely for
maximum performance.
NOTE: In order for the Filtration System to perform effectively,
use only Kirby
®
Micron Magic
®
HEPAFiltrationBags.Ifthe
outside bag is torn or damaged, please replace immediately. ❏

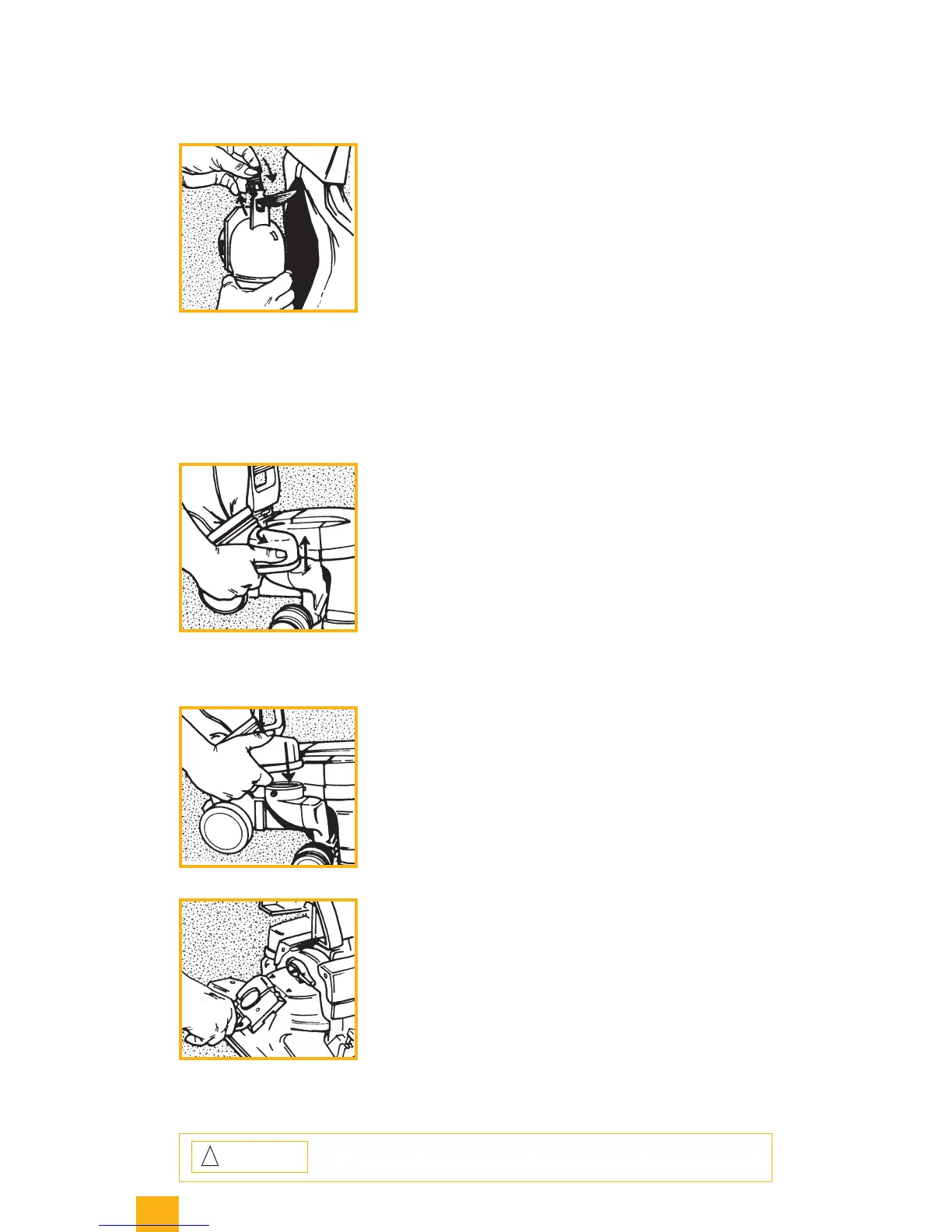

EMPTYINGTHEMINIEM-TOR
The Mini Em-Tor
o
6 is designed to collect large, heavy particles
which can be emptied by removing the Mini Em-Tor.
To remove, grasp the Mini Em-Tor in the handhold
provided and rotate it away from the body of the
Ultimate G as far as it will go, then lift it off.
ThetopofthebagisreleasedfromthehandlebypressingtheBag
ReleaseButton
o
16 . After removing the Mini Em-Tor and the
entireBagAssembly,positionthefrontopeningoftheMini
Em-Tor over a newspaper and shake it to remove the particles. ➤
ToreplacetheMiniEm-Tor,re-attachtheentireBag
AssemblybyinsertingtheBagLatchTab
o
2 at the top of
thebagintotheslotundertheBagReleaseButton
o
16 .
Finally, line up the raised indicator arrow of the Mini Em-Tor
with the indicator arrow on the Air Exhaust Port
o
19 . Rotate the
Mini Em-Tor towards the Ultimate G and lock it in place.
NOTE: The Mini Em-Tor must be securely locked in place
or the Ultimate G will not operate. ❏
USINGTHEBELTLIFTER
TheBeltLifter
o
20 on your Ultimate G is used for two purposes:
l) ToengageordisengagetheBrushRoll.WhentheBrushRoll
is disengaged, the Ultimate G can be used as a straight suction
cleaner(page14),and;
2) To allow removal of the Power Nozzle when converting
your Ultimate G for use with various attachments and
optional accessories.
To avoid damaging the belt, turn the Ultimate G OFF before
usingtheBeltLifter.➤
4
1
2
