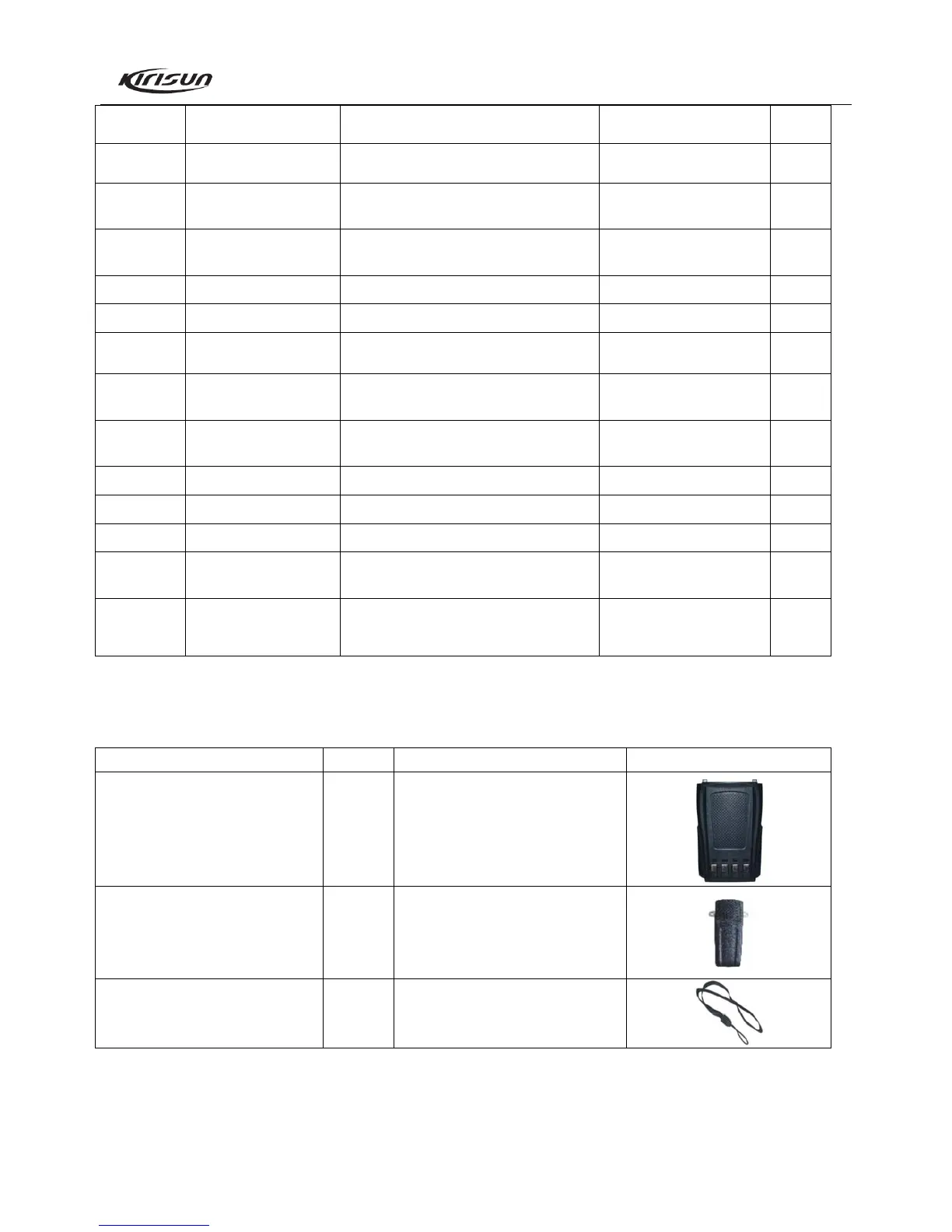

PT260 Service Manual
21
122 5FE1-BLM11A221SPT EMI,FILTER, SMT,BLM11A221S,0603,ROHS L41 L61 L71 L73 L60 5
123 5FE1-BLM21P300S EMI,FILTER, SMT,BLM21P300S,0805,ROHS L27 L31 L24 3
124 4SM3-6027-A56B Microphone, =6.0mm,H=2.7mm,-56dB±2dB, with
terminal (aside)ROHS
MIC1 1
125 5OD1-13R0-DBF3-0302 Chip fixed temperature compensation transistor
/NT5032SC,13±2.5PPM,3.0*2.5*1.6mm,ROHS
X1 1
126 5XT1-CSTCR-7R30G53 CSTCR7M30G53-R0,7.3M,ROHS X2 1
127 3CE3-ST212-35K 3.5mm Microphone jack/SP/MIC,ST-212,ROHS J2 1
128 3CE3-EJ-2507-CCPAK 2.5mm Earphone jack /SP/MIC,EJ-2507-CCPA,ROHS J1 1
129 3CR7-SMA-50JFB-4 SMA-J, Flange (3208, aperture 14mm,core length
10.5mm)
CN1 1
130 4SS7-3605-008-100 =36mm,H=5.0mm,impedance 8,rated power
1.0W(FCE Company)
SP1 1
131 3WLP-30070-0 Plastic cable, cable no. 30,cable length 7cm, black 1
132 3WLP-30070-2 Plastic cable, cable no. 30, cable length 7cm, red 1
133 6PD7-7058-HMD G3280 PCB/U, two layers of turmeric, 0.8mm, ROHS 1
134 6PS7-7025-HSA
PT3500S Small board of volume knobboard with one
side, 1.2mm (Depth)
1
135 6PS7-7025-HSB PT3500S Small board of encoder switch, board with
one side, 1.2mm (Depth), ROHS
1
Appendix 4 Accessories Lists
Name Type Specifications Picture
Battery KB-260 7.4V 1000mAH Li-ion Battery
Belt clip KBJ-09
Hand strap KGS-01
