PT260 Service Manual
9
1) Frequency tuning
2) Transmitting power
3) Low voltage threshold

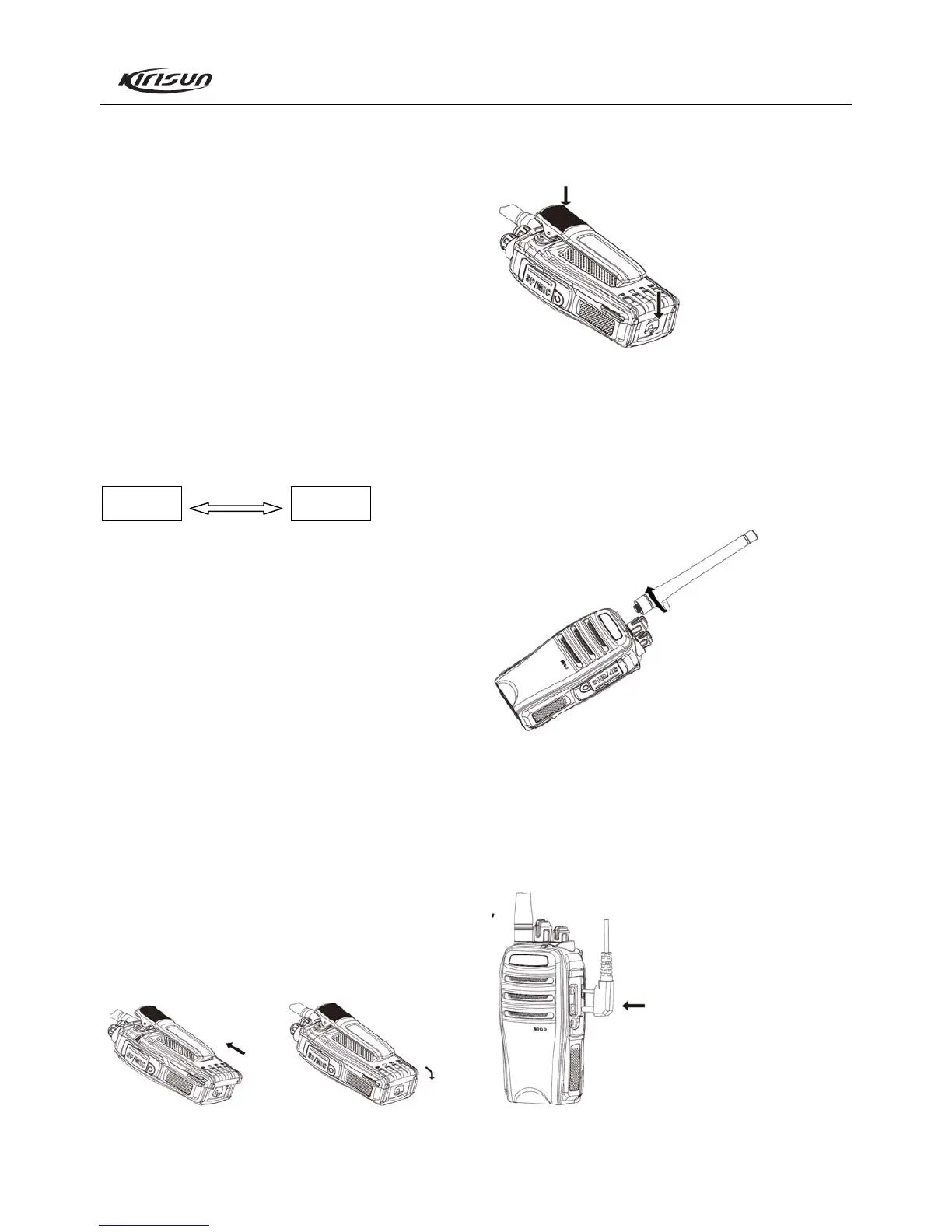

4.4 Wired Clone Parameter
If there are many radios needing to be edited, and one radio
has already been edited by the computer, the data in this radio can
be cloned to other radio through the wire.
Steps are as follows:
a. Turn off the master radio which the parameters have been
set. Press the “Monitor” Key on the radio to turn on the radio and
hold this key until Red LED indicator flashes for 2 seconds and an
alert tone sends out, the radio enters into wired clone mode.
b. Connect the radio (master radio) in wired clone mode to
another radio which needs to be set with the special clone cable.
See figure 4.2.
Figure 4.2
c. Press the “Monitor” Key on the master radio, the master
radio starts to send data to the other radio. During the transmission,
Red LED indicator of the master radio lights.
d. LED indicator of the receiving radio turns green.
Note: The clone data contain all the data under the
“Functional parameter settings” menu, but not the data under the
“Test mode” menu.
Chapter 5 Disassembly for Repair
The radio is a piece of precision communication equipment.
Please be careful when disassembling the radio during service. The
instructions for the disassembly are as follows.
5.1 Attaching and Removing the Battery
Attaching the Battery
Match the protrusions on the battery with the slots at the back
of the radio. Press the battery pack and push it forward until a click
is heard.
Removing the Battery
Press the belt clip, and then push backward until it separates
from the radio.
Note:
Please reverse the battery terminals or discard it in the fire.
Do not disassemble the cover of the battery by yourself.
5.2 Installing the Antenna
Hold the antenna at its base, and screw the antenna into the
connector on the top of the radio clockwise until secure.
5.3 Installing the External Speaker/Microphone
Uncover the jack cover, and insert the external
speaker/microphone into the jack.
Note: When using the external speaker/microphone, the radio
cannot be waterproof.
