Kirisun PT3600 User Manual

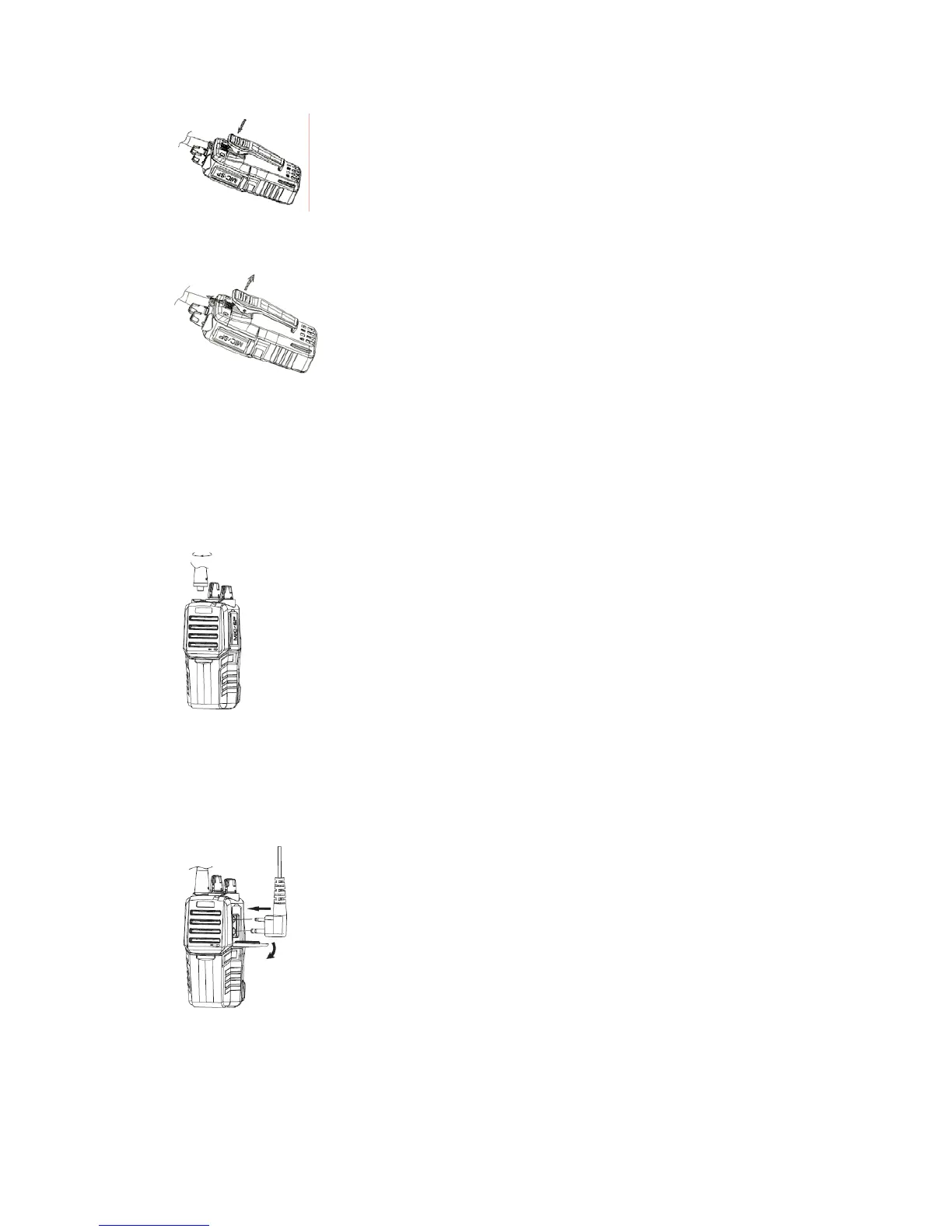

To remove the battery pack, push the battery latch upwards, and then remove the battery away
from the radio.
Note:
* Do not short-circuit the battery terminals or dispose battery in fire.
* Do not disassemble the battery casing by yourself.
2.3 Installing the Antenna
Hold the base of the antenna and turn the antenna clockwise into the connector on the top of
the radio until secure.
2.4 Installing the External Speaker/MIC
Open the cover for external speaker/MIC jacks, and then insert the external speaker/MIC plug
into the jacks on the radio.
Note: When using the external speaker/MIC, the radio will not be waterproof.
2.5 Installing/Removing the Belt Clip
Align the grooves of the belt clip with those on the rear of the battery. Then press the belt clip
downwards until a click is heard. To remove the belt clip, use your fingernail or a tool to press the

Kirisun PT3600 Specifications

General

Brand	Kirisun
Model	PT3600
Category	Transceiver
Language	English
