16
INSTALLATION
INSTALLATION

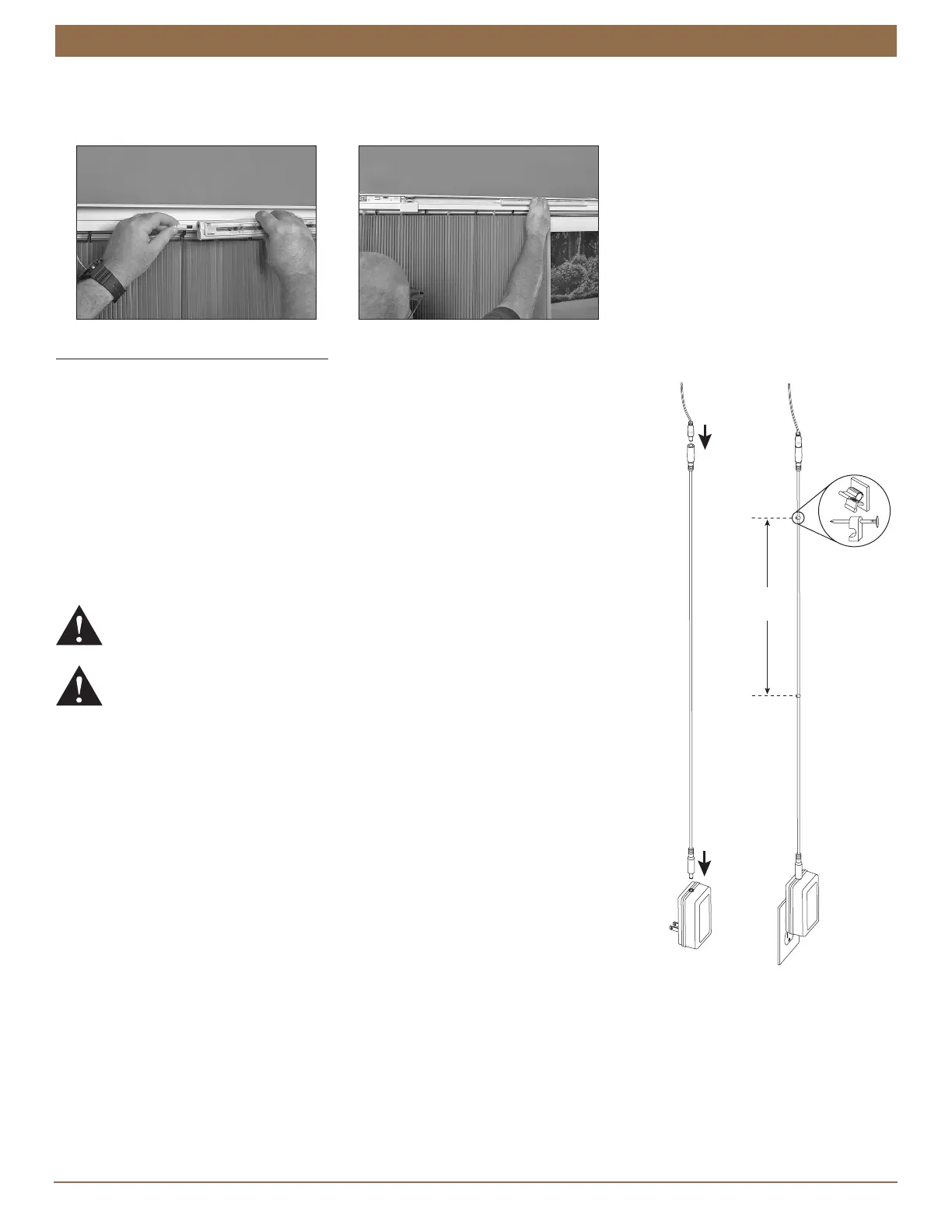

If Your Order Came with One Battery Wand Only...
Plug the single power cable from the motor into the socket on the battery wand.
Place the battery wand into the front channel of the headrail. The front lip on the channel holds the wand in position.
If You Have an 18V DC Power Supply...
Connect the Power Supply
Plug the power cable from the shade into the extension cable.
Route the extension cable over the top of the headrail and behind the stationary rail
or fabric stack.
Plug the other end of the extension cable into the 18V DC Power Supply.
Plug the 18V DC Power Supply into a standard outlet.
Secure the extension cable using wire retainers (not supplied). Be sure the cable does
not impede the operation of the shade.
Space the wire retainers approximately 15" apart along the power supply cable, as
shown.
WARNING: Keep cables and small parts out of the reach of children. They can
wrap cables around their necks and STRANGLE. They can also put small parts in
their mouths and CHOKE.
WARNING: Electric shock and/or a fire hazard may occur, if not properly installed.
15"
Maximum
Wire Re
Power Cable
from Motor
Extension
Cable
18V DC
Power
Supply
To Next Page
