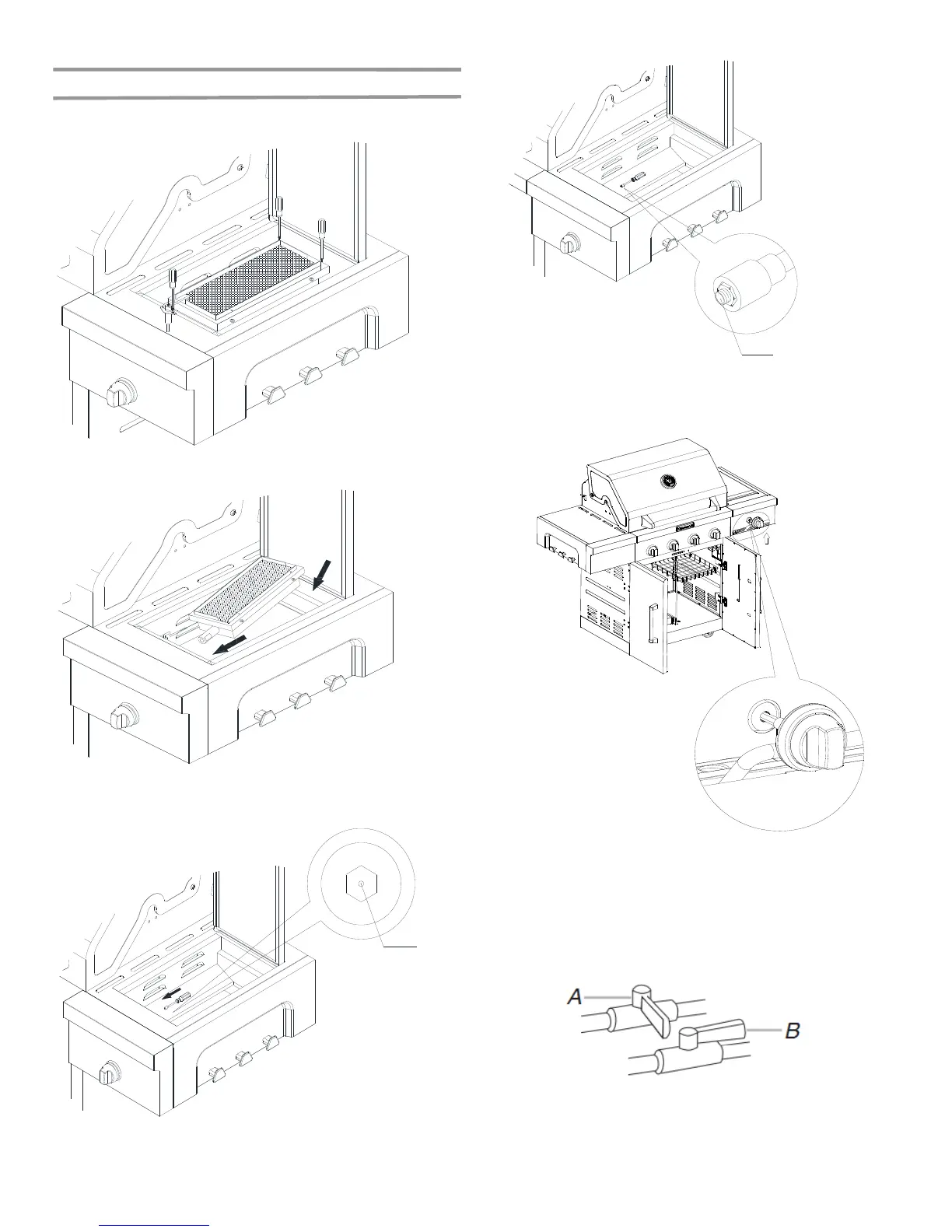

Change the Sear Burner orifice
1. Remove the screw securing the igniter and the 2 searing
side burner screws.
2 Lift out the searing side burner
A
A. Orifice
IMPORTANT: Check that the orifice is properly installed
inside of the valve. Check the orifice is properly installed inside of
the burner venturi under the searing side burner control panel.
2
.
Lift
out
the
searing
side
burner
.
3. Locate the Liquid propane orifice at the end of the valve
and use 6 mm socket wrench or 6 mm nut driver to
remove. Replace with natural gas orifice.
4. Reinstall the searing side burner. Make sure that the igniter
is out of the way to allow proper positioning of burner. Use
Phillips screwdriver to attach the mounting screws.
5
Use Phillips screwdriver to reattach the igniter and searing
A
5
.
Use
Phillips
screwdriver
to
reattach
the
igniter
and
searing
side burner plate.
6. Open the manual shutoff valve in the gas supply line. The
valve is open when the handle is parallel to the gas pipe.
A. Orifice
A. Closed valve
B. Open valve
