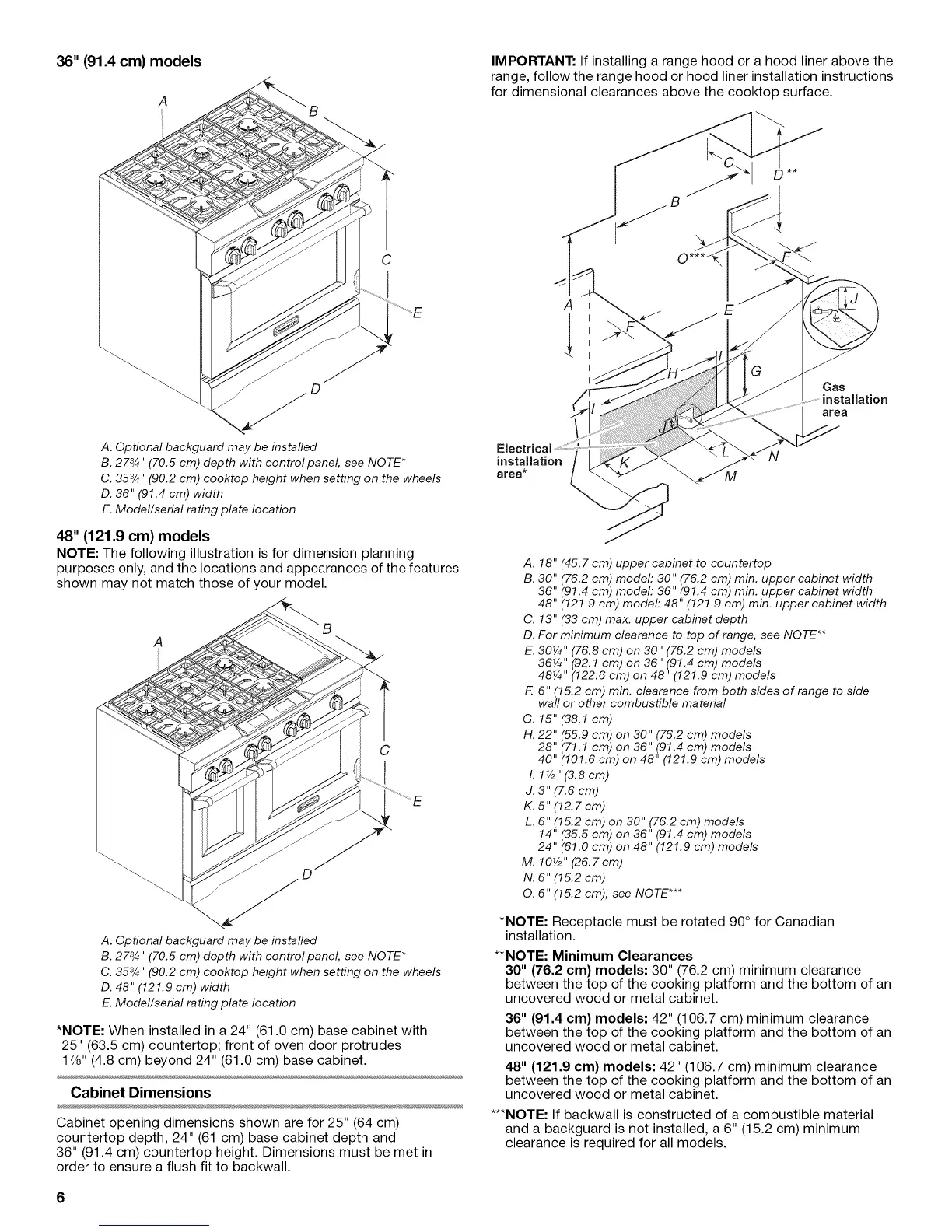

36" (91.4 cm) models
A
C
A. Optional backguard may be installed
B. 273/4'' (70.5 cm) depth with control panel, see NOTE*
C. 353/4"(90.2 cm) cooktop height when setting on the wheels
D. 36" (91.4 cm) width
E. Model/serial rating plate location
48" (121.9 cm) models
NOTE: The following illustration isfor dimension planning
purposes only, and the locations and appearances of the features
shown may not match those of your model.
A
C
A. Optional backguard may be installed
B. 273/4'' (70.5 cm) depth with control panel, see NOTE*
C. 353/4"(90.2 cm) cooktop height when setting on the wheels
D. 48" (121.9 cm) width
E. Model/serial rating plate location
*NOTE: When installed in a 24" (61.0 cm) base cabinet with
25" (63.5 cm) countertop; front of oven door protrudes
17/8'' (4.8 cm) beyond 24" (61.0 cm) base cabinet.
Cabinet Dimensions
Cabinet opening dimensions shown are for 25" (64 cm)
countertop depth, 24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height. Dimensions must be met in
order to ensure a flush fit to backwall.
IMPORTANT: If installing a range hood or a hood liner above the
range, follow the range hood or hood liner installation instructions
for dimensional clearances above the cooktop surface.
B
A
Gas
area
installation
area*
N
A. 18" (45.7 cm) upper cabinet to countertop
B. 30" (76.2 cm) modeh 30" (76.2 cm) min. upper cabinet width
36" (91.4 cm) modeh 36" (91.4 cm) min. upper cabinet width
48" (121.9 cm) modeh 48" (121.9 cm) min. upper cabinet width
C. 13" (33 cm) max. upper cabinet depth
D. For minimum clearance to top of range, see NOTE**
E. 30¼" (76.8 cm) on 30" (76.2 cm) models
36¼" (92.1 cm) on 36" (91.4 cm) models
48¼" (122.6 cm) on 48" (121.9 cm) models
F. 6" (15.2 cm) min. clearance from both sides of range to side
wall or other combustible material
G. 15" (38.1 cm)
H. 22" (55.9 cm) on 30" (76.2 cm) models
28" (71.1 cm) on 36" (91.4 cm) models
40" (101.6 cm) on 48" (121.9 cm) models
I. 1V2" (3.8 cm)
J. 3" (7.6 cm)
K. 5" (12. 7 cm)
L. 6" (15.2 cm) on 30" (76.2 cm) models
14" (35.5 cm) on 36" (91.4 cm) models
24" (61.0 cm) on 48" (121.9 cm) models
M. 10V2" (26.7cm)
N. 6" (15.2 cm)
O. 6" (15.2 cm), see NOTE***
*NOTE: Receptacle must be rotated 90° for Canadian
installation.
**NOTE: Minimum Clearances
30" (76.2 cm) models: 30" (76.2 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.
36" (91.4 cm) models: 42" (106.7 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.
48" (121.9 cm) models: 42" (106.7 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.
***NOTE: If backwall is constructed of a combustible material
and a backguard is not installed, a 6" (15.2 cm) minimum
clearance is required for all models.
6
