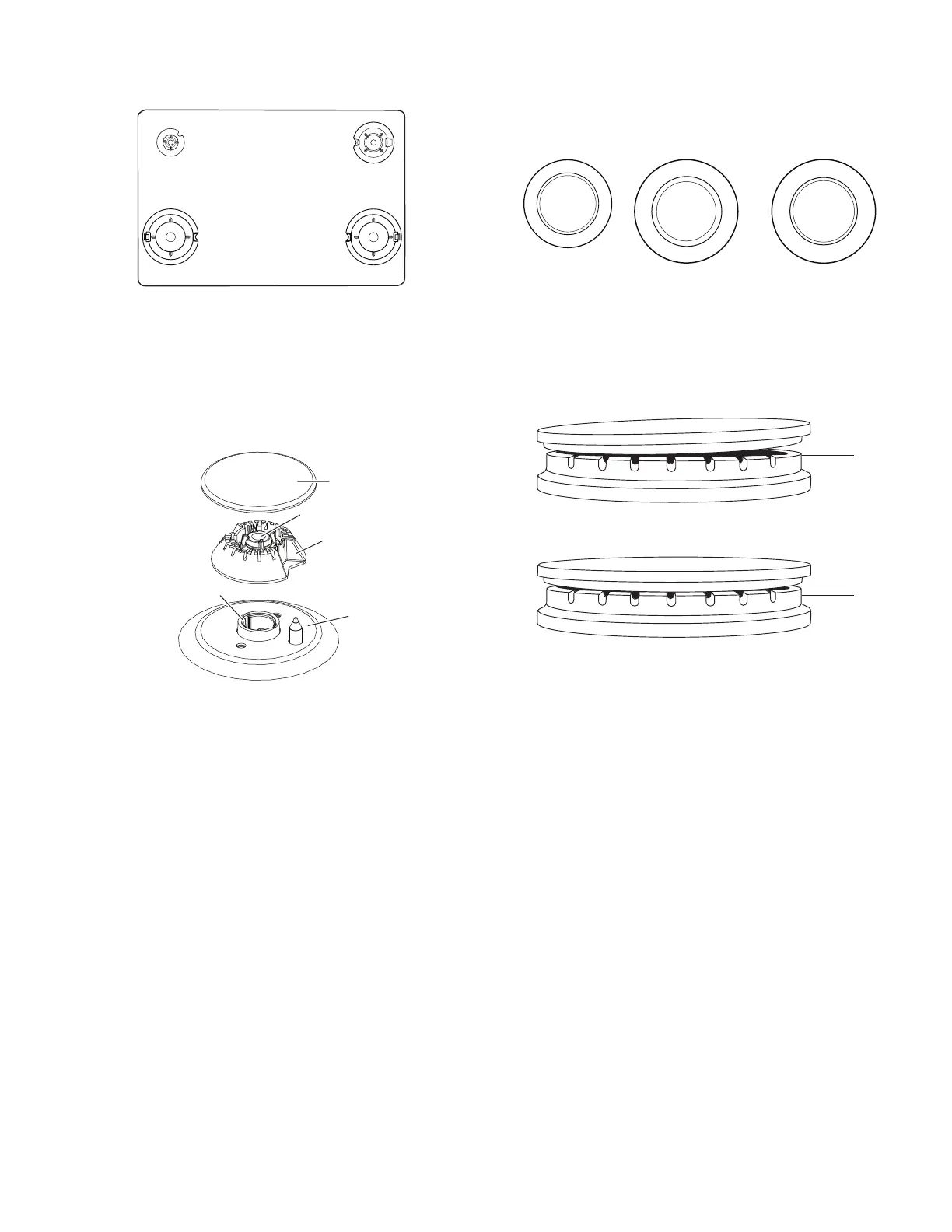

3. Remove cooktop burner caps and bases from package
containing parts. Place the burner bases as indicated below:
A
C
DB
A. Small (Auxiliary)
B. Large (Ultra Rapid)
C. Medium (Semi Rapid)
D. Large (Ultra Rapid)
NOTE: Each round burner base is marked with one of the
following: AUX, SR, or UR.
4. Align the gas tube opening in the burner base with the orifice
holder on the cooktop and the igniter electrode with the notch
in the burner base.
A
B
C
D
E
A. Burner cap
B. Gas tube
opening
C. Burner base
D. Igniter electrode
E. Orifice holder
5. Place the burner caps on the appropriate burner bases.
NOTE: The bottom of the small and medium caps are
different. Do not put the wrong size burner cap on the burner
base. Each round burner cap is marked with an AUX, SR, or
UR to match with a letter on the burner base.
AUX
SR
UR
Small cap
(Auxiliary)
Medium cap (Semi
Rapid)
Large cap (Ultra
Rapid)
Burner caps should be level when properly positioned. If
burner caps are not properly positioned, surface burners will
not light. The burner cap should not rock or wobble when
properly aligned.
A
B
A. Incorrect
B. Correct
6. Place burner grates over burners and caps.
7. Plug into appropriate outlet. See the appropriate “Electrical
Requirements” section.
8. Turn on power.
