23
Install Blower
Install Blower Cover

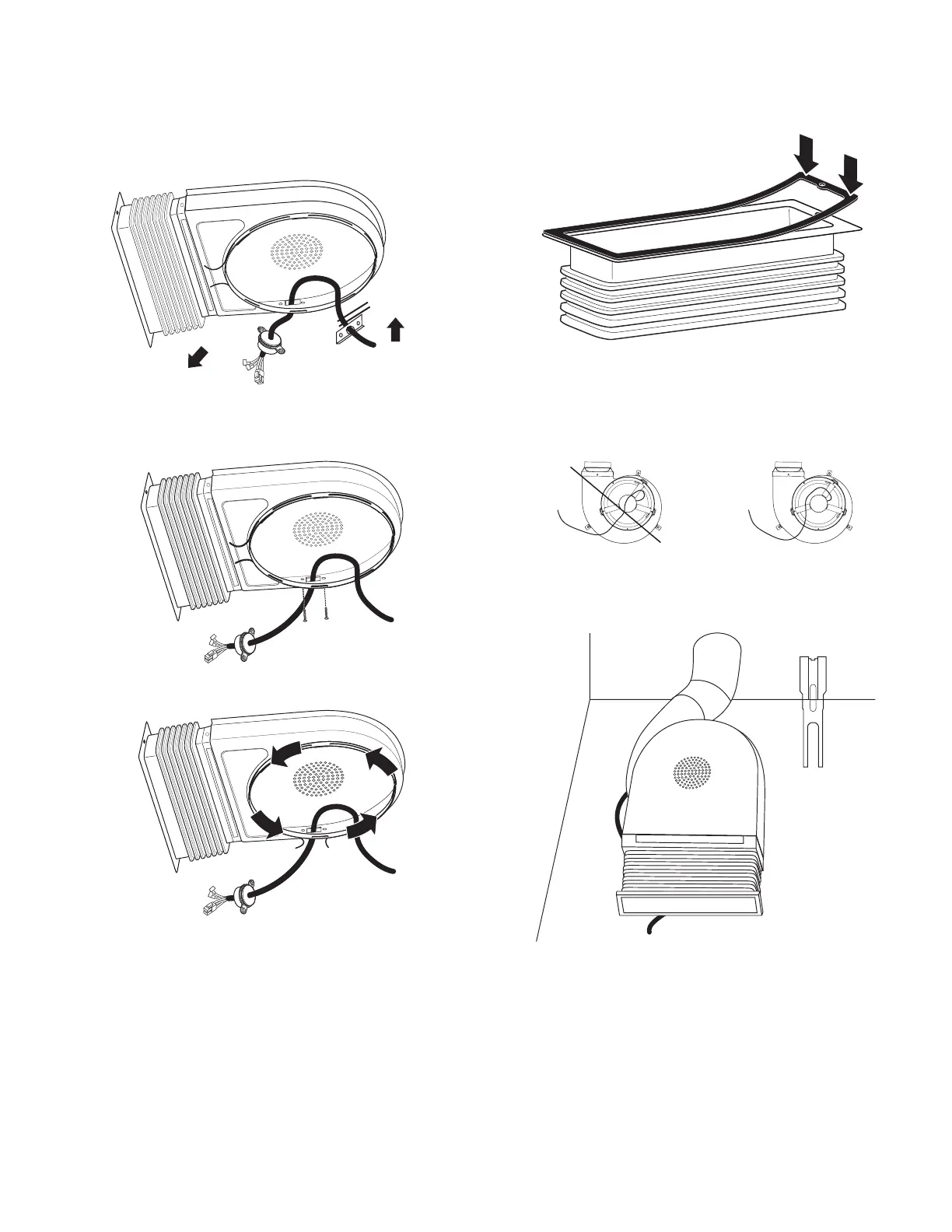

1. Locate blower motor cover.
2. Run the blower motor wires with strain relief through the small
opening in the blower motor cover, starting from the inside and
feeding out.
3. Feed blower motor wire through opening and place the strain
relief bracket to the inside of the blower cover. Install and
tighten the two (2) provided #8–18 x 3/8" screws to secure the
strain relief bracket.
4. Reposition the blower motor cover retainer spring as
illustrated.
5. Remove paper from the rear of the rectangular felt pad and
apply adhesive side of felt to the bellow flange.
NOTE: This step is important to ensure maximum blower
performance.
6. Apply blower motor cover to the blower. Slightly spread the
cover retainer spring to allow the cover to drop into position on
the blower motor.
NOTE: The blower motor cover will not properly install if the
motor wire is on the top of the motor.
Incorrect correct
7. Rotate blower motor cover so the bellows are facing towards
the front of the installation.
8. Move blower motor wire to the front of the installation.
9. Remove the cardboard or hardboard from under the range.
10. Remove the front lower access panel of the range by gently
lifting on the panel then pull outward.
11. Using 2 or more people, gently move the range into its final
location.
12. Check to ensure the flexible metal gas connector and
electrical cord are not kinked. Use a flashlight to look
underneath the bottom of and behind the range.
