KitchenAid KUDD03DTSS - Route Water Supply Line and Drain Hose

10

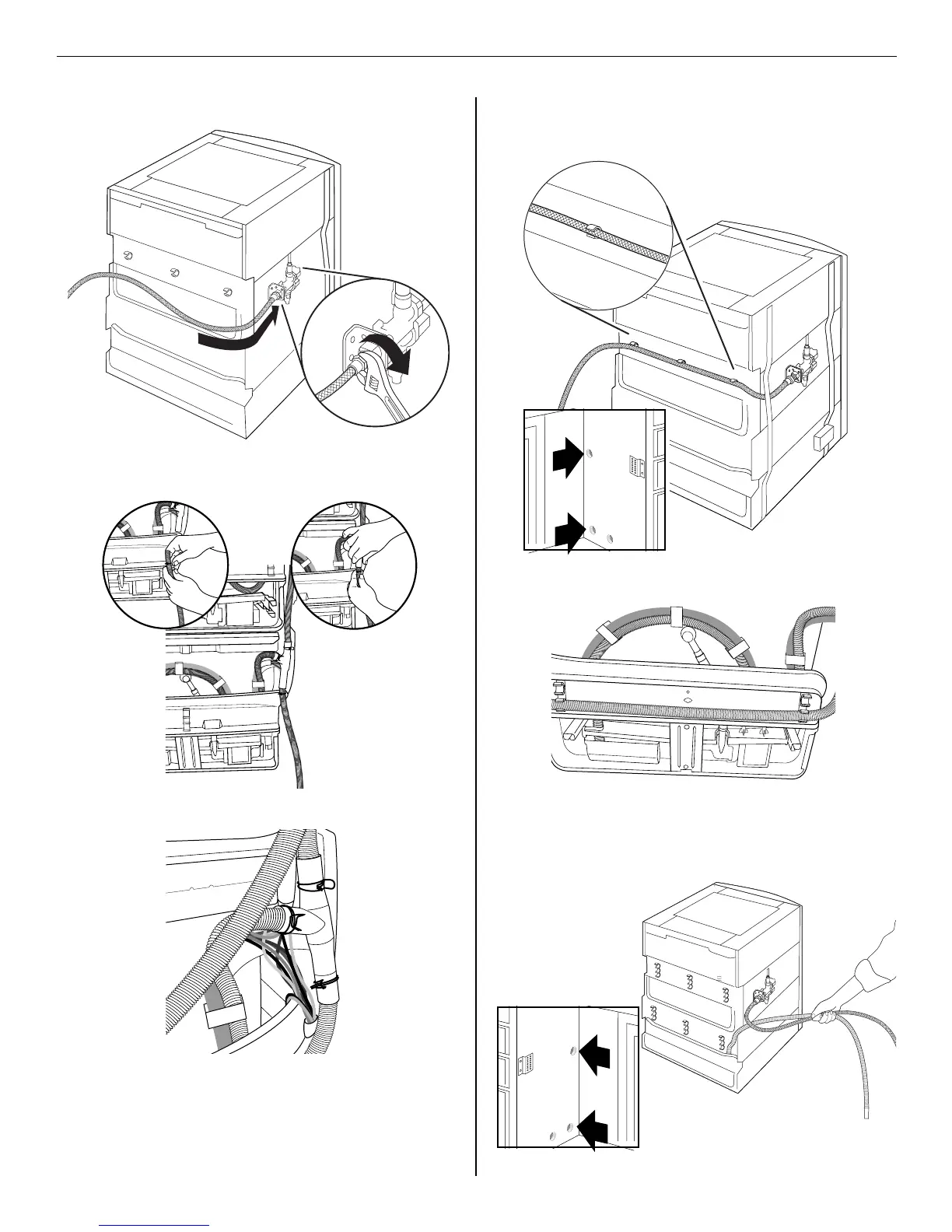

Route Water Supply Line and Drain Hose
1. Connect water supply line to water valve on dishwasher.
2. Slide clamp onto drain hose, and then push hose into “Y”
connector until fully seated. Several clicks will be heard.
3. Slide clamp into position over the “Y” connector.
Option 1: Right-Hand Side Utility Access
■ For right-hand routing, place the water supply line in the
clips.
■ Route drain hose on clips on bottom/back of unit.
Option 2: Left-Hand Side Utility Access
■ For left-hand routing, place hose in clip on bottom right-
hand side of the dishwasher.
