12

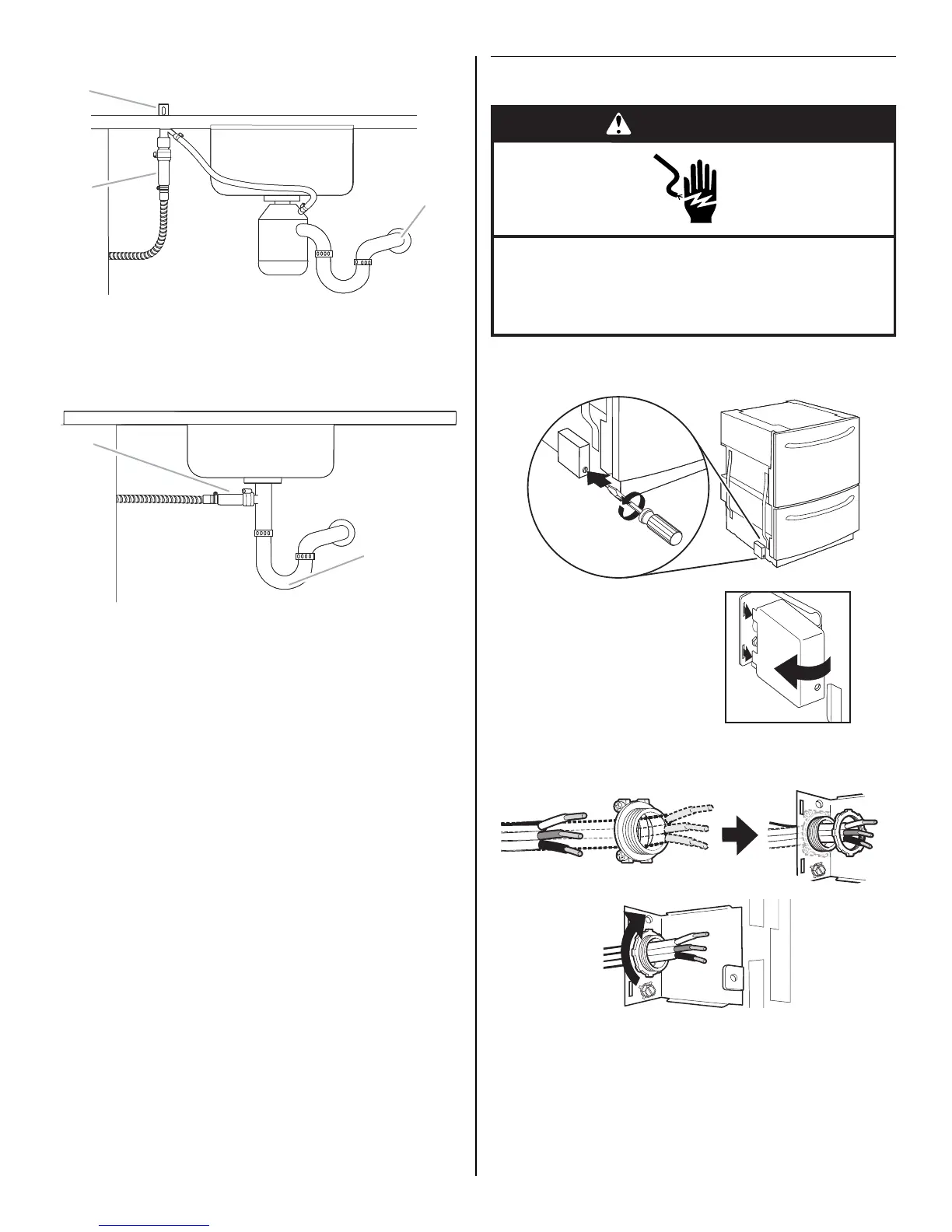

Option 3: Waste Disposer and Drain Air Gap
Option 4: No Waste Disposer, No Drain Air Gap
NOTES:
■ Attach the drain hose connector to the water waste line
using the supplied hose clamp.
■ This connection must be before the drain trap and at least
20" (50.8 cm) above the floor where the dishwasher will be
installed. It is recommended that the drain hose be looped
up and securely fastened to the underside of the counter.
6. Turn on water and check for leaks.
Make Electrical Connection
1. Remove screw securing the electrical box cover. Remove
cover.
2. Route electrical wires through strain relief and secure to
electrical plate.
A. Drain air gap
B. Drain hose connector
C. Waste
A. Drain hose connector
B. Waste
A
B
B
A
WARNING
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
Electrical Shock Hazard
