Kiturami TURBO-21 - Page 12

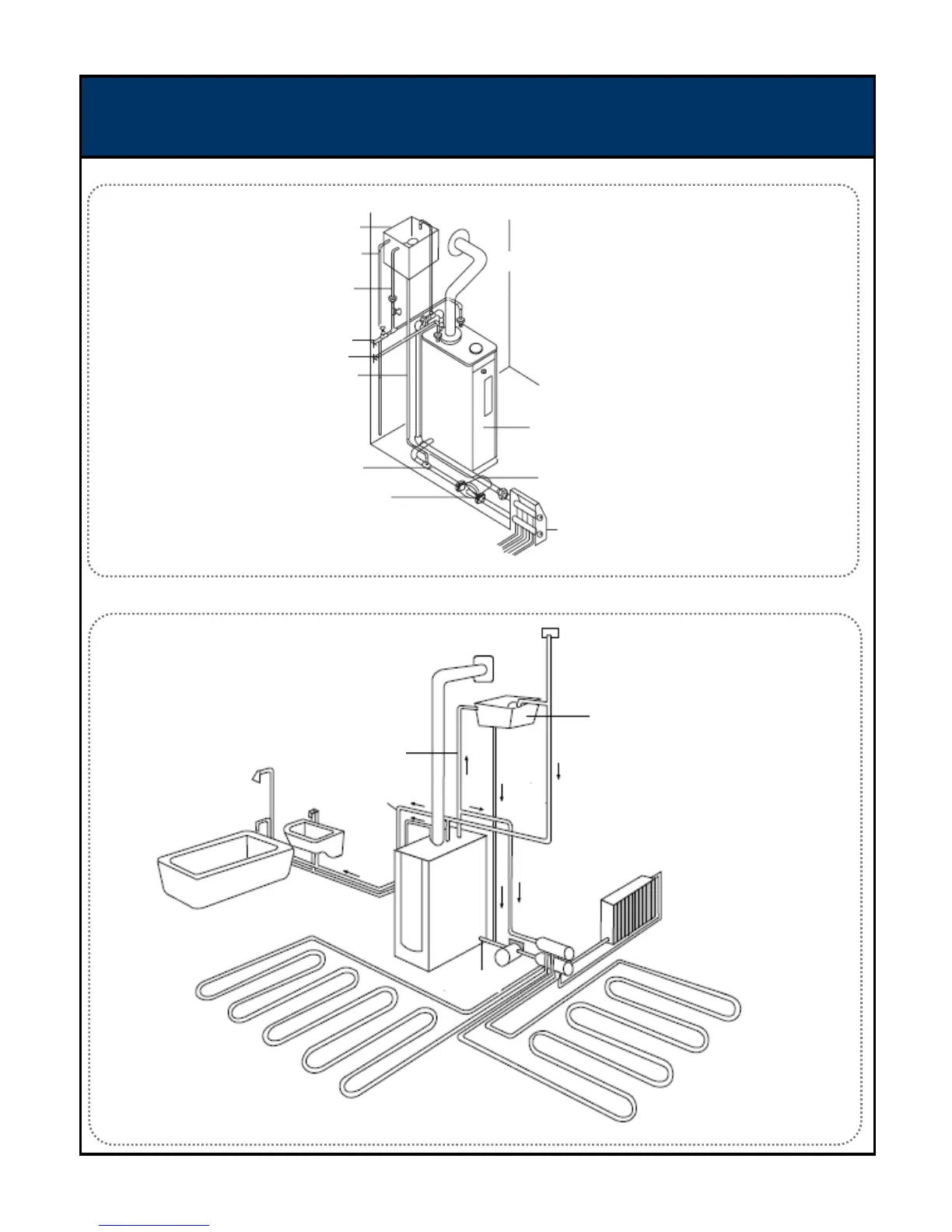

3-2-1 Installing Downward piping type
3-2-2 Installing Downward piping type (Diagram of Total Piping)
expansion tank
chimney
Boiler
circulation pump
Heating return
Heating supply
Over flow pipe
DHW outlet
DHW inlet
Cool water inlet
pipe
Over flow
Heating
header
expansion tank
Over flow
* radiator
DHW outlet
Heating return
Heating supply
DHW inlet
Bath
* Heating coil
12페이지
