4. MAIN PART SPEC

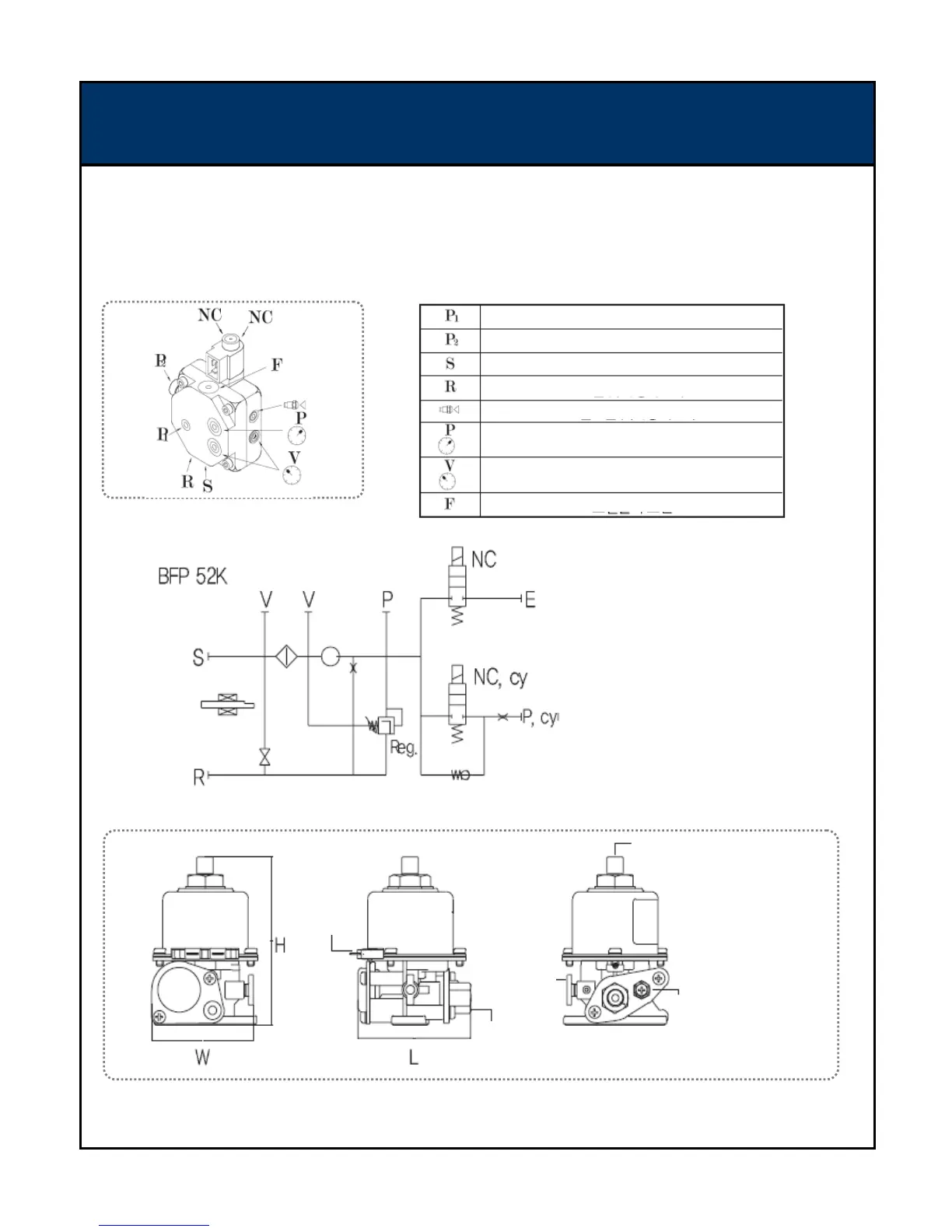

4 - 1 GEAR PUMP
① Pressure of pump
-. 10 bar : Adjusted pressure out of factory
-. 12 bar : Change the pressure when the burner ignites at a low temperature.
② Structure of pump (based on DANFOSS pump)
③ Gear pump work SYSTEM
4 - 2 ELECTRONIC PUMP
W x L x H = 60mm x 67mm x 89mm
Power
connector
Oil outlet
Outlet pressure
adjusting screw
Air outlet
Oil filter
connector
Adjusting Pressure
Cylinder Port
Inlet (Φ 1/4")
Outlet (Φ 1/4")
Nozzle Connection (Φ 1/8")
Pressure Gauge Connection (Φ
1/8")
Vacuum Gauge Connection (Φ
1/8")
Oil Filter Replacement
