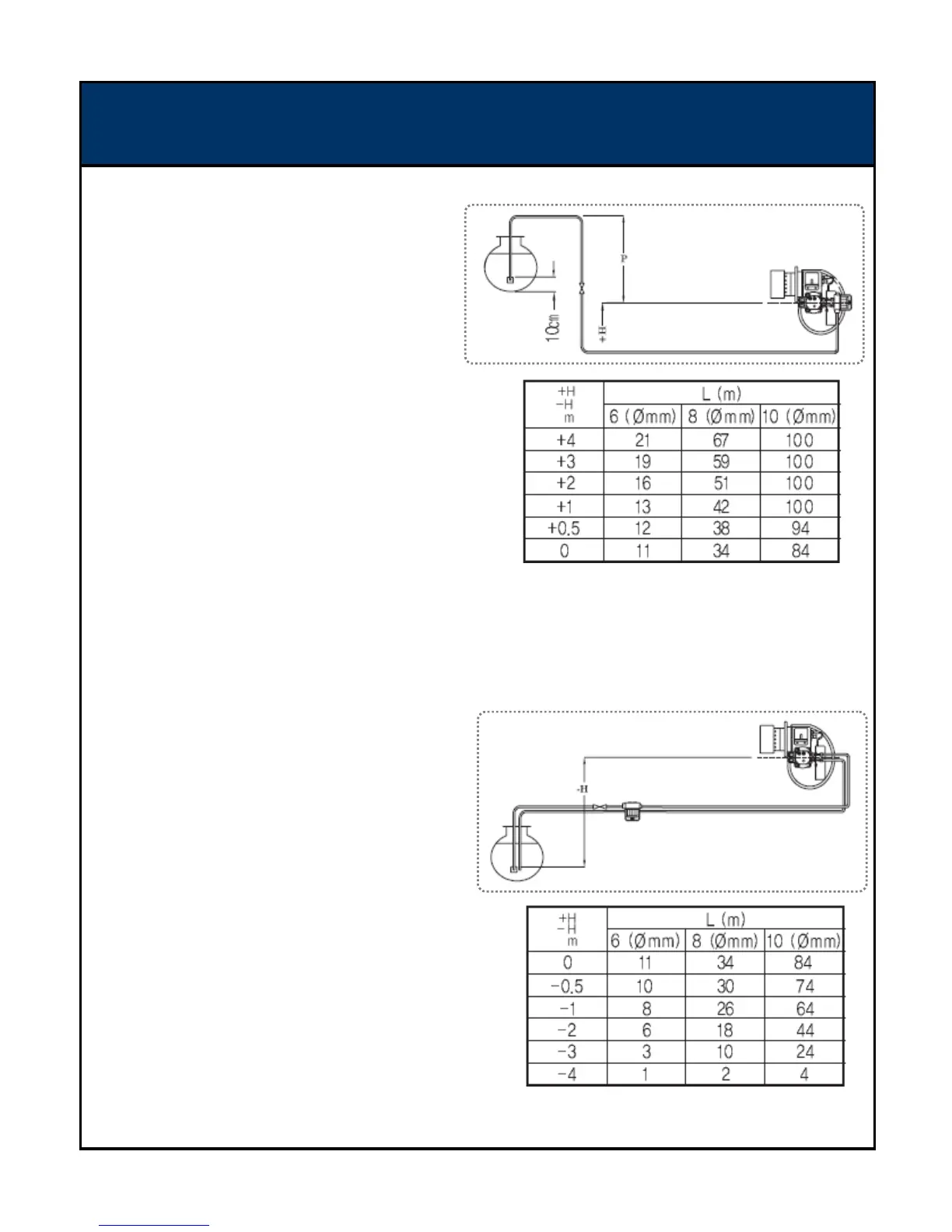

Oil supply pipe
-. When installing the Oil tank higher than Burner.
(Upward type)
① KITURAMI burner is equipped the special filter,
which protects gear pump and motor.
When install the Oil tank higher than Burner, follow
below instructions.
② The P should be lower than 4m to protect the
Pump retainer.
③ Oil pressure from the pump should be less than
0.4bar/30cmHg.
④ As for Downward type Oil supply pipe, refer to below
Figure and instructions.
H = Height from pump
L = Total length of Oil supply pipe
Values in the right table is for the Copper pipe of 8mm
and 10mm, which can be substituted with the steel pipe
of 1/4" , 3/8".
-. When installing the Oil tank lower than Burner. (Downward type)
※ Caution : Surely check whether the return line is open or not. In case of operation of burner with it open,
the retainer in pump will be damaged.
① Install the oil pipe, if possible, with the copper pipe,
and check the air infiltration clearly.
② Place the both tips of return pipe and supply pipe
at the same position.
H = Height from pump
L = Total length of Oil supply pipe
Values in the right table is for the Copper pipe of 8mm
and 10mm, which can be substituted with the steel pipe
of 1/4" , 3/8".
