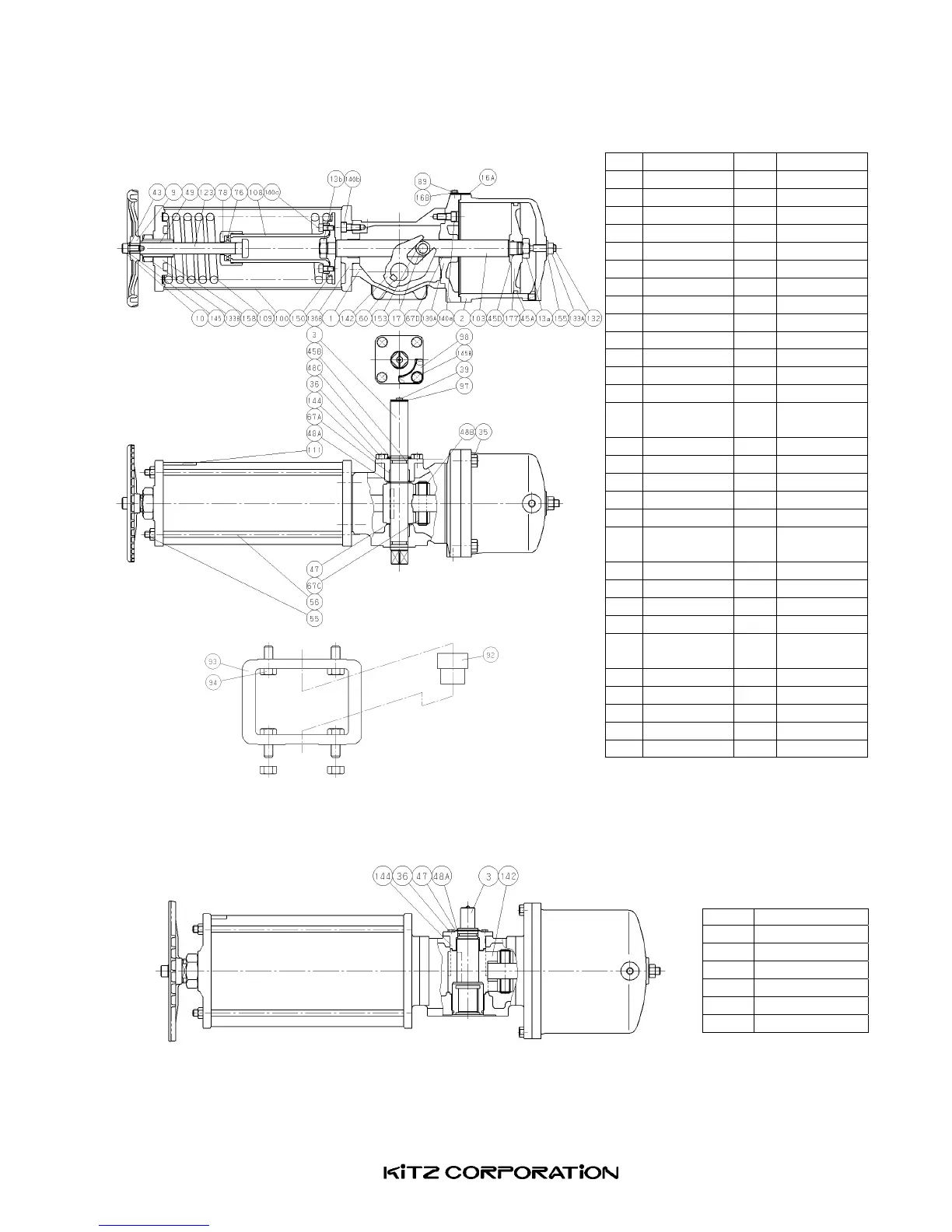

AssemblyDiagramofTypeBSW-1toBSW-6 
























*1  OnlyBSW-6
*2  BSW-5orhigher






No. Parts No.  Parts
1 Housing 89 Bolt
2 Cylinder 92 Connector
3 Shaft 93 Bracket
9 Handwheel 94 Bolt
10 Capscrew  97 Indicator
13a Nut 98 Indicatorplate
13b Nut 100 Springcase 
16A Plate 103 Pistonrod
16B Washer 108 Guide
17 Pin 109 Spring
35 Bolt 111 Cautionplate
36 Bolt 123 Spindle
39 Screw 132 Adjustscrew
43
Handle
washer
133A Nut
45A Oring 133B Nut
45B Oring 136A Rodguide
45D Oring 136B Rodguide
47 ThrustBearing  140a Capscrew 
48A Snapring 140b Capscrew 
48B Snapring
140c
(*1)
Capscrew 
48C Snapring 142 Scotchyoke
49 Stopper 144 Housingcover
55 Nut 145A Springwasher
56 Tierod 145B Washer
60 Key
146
(*2)
Backupring 
67A Bearing 150 Springretainer
67C Bearing 153 Roller
67D Bearing 155 Sealwasher
76 ThrustBearing  140a Springcover 
78 Guidecap 177 Piston
No.  Parts
3 Shaft
36 Bolt
47
ThrustBearing
48A Snapring
142 Scotchyoke
144 Housingcover
Fig.30
BSW-6ActuatorShaftPortion
Some parts are different dependin
g
ontheactuatortype.
