Document No.:KE-4011-03 Page: 20/27

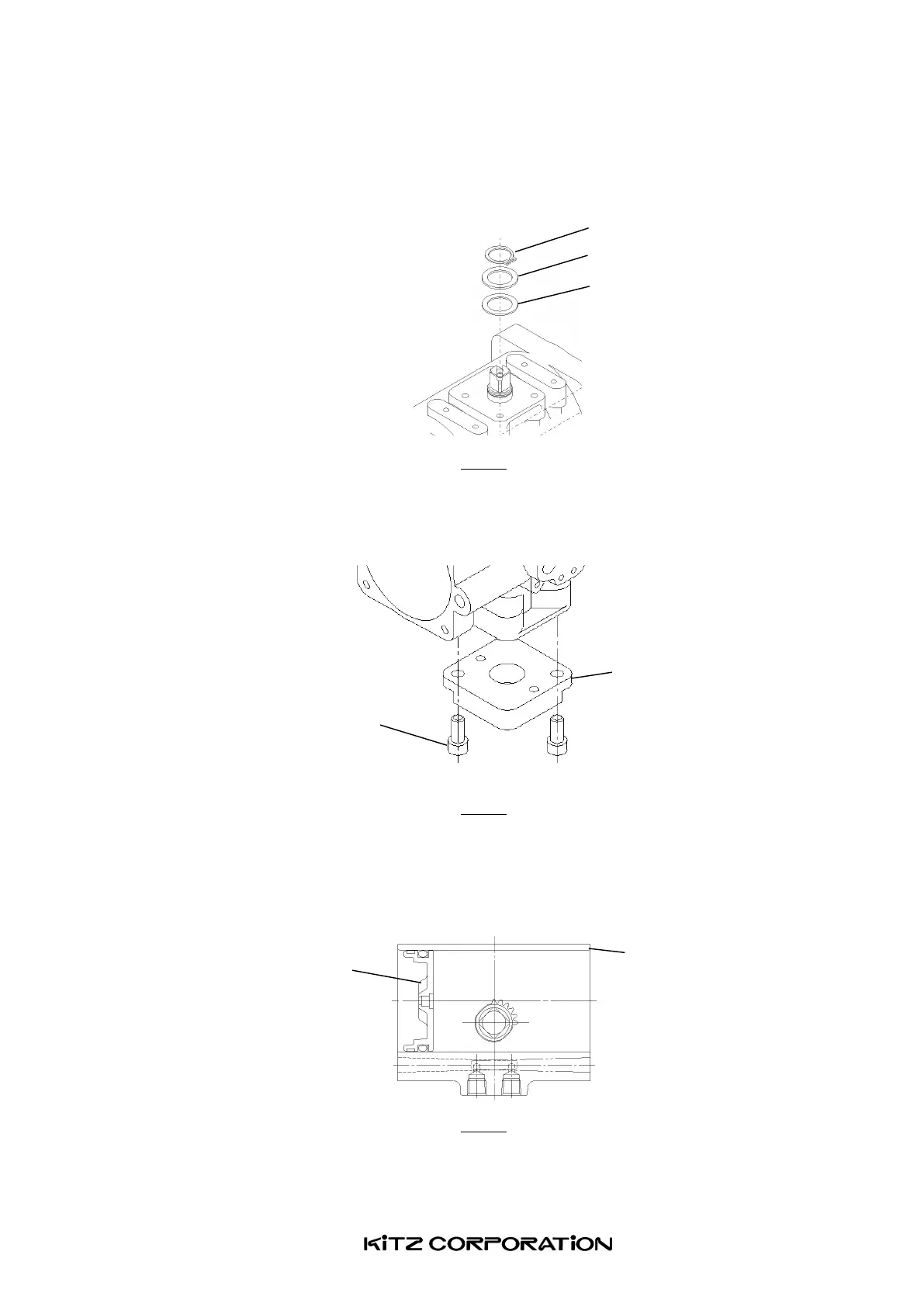

(4) Lubricate the shaft assembled with the housing. Mount a thrust washer and a thrust
bearing on the shaft securely with a snap ring (Fig.16).
Fig.16
(5) Assemble the cover with the housing (Fig.17).
Fig.17
(6) Lubricate the internal surface of the housing and assemble the piston ( complete with O-
rings, a bearing and a back-up ring ) with the housing (Fig.18).
Fig.18
Snap ring <48A>
Thrust washer <47A>
Bolt <35B>
Cover <2C>
