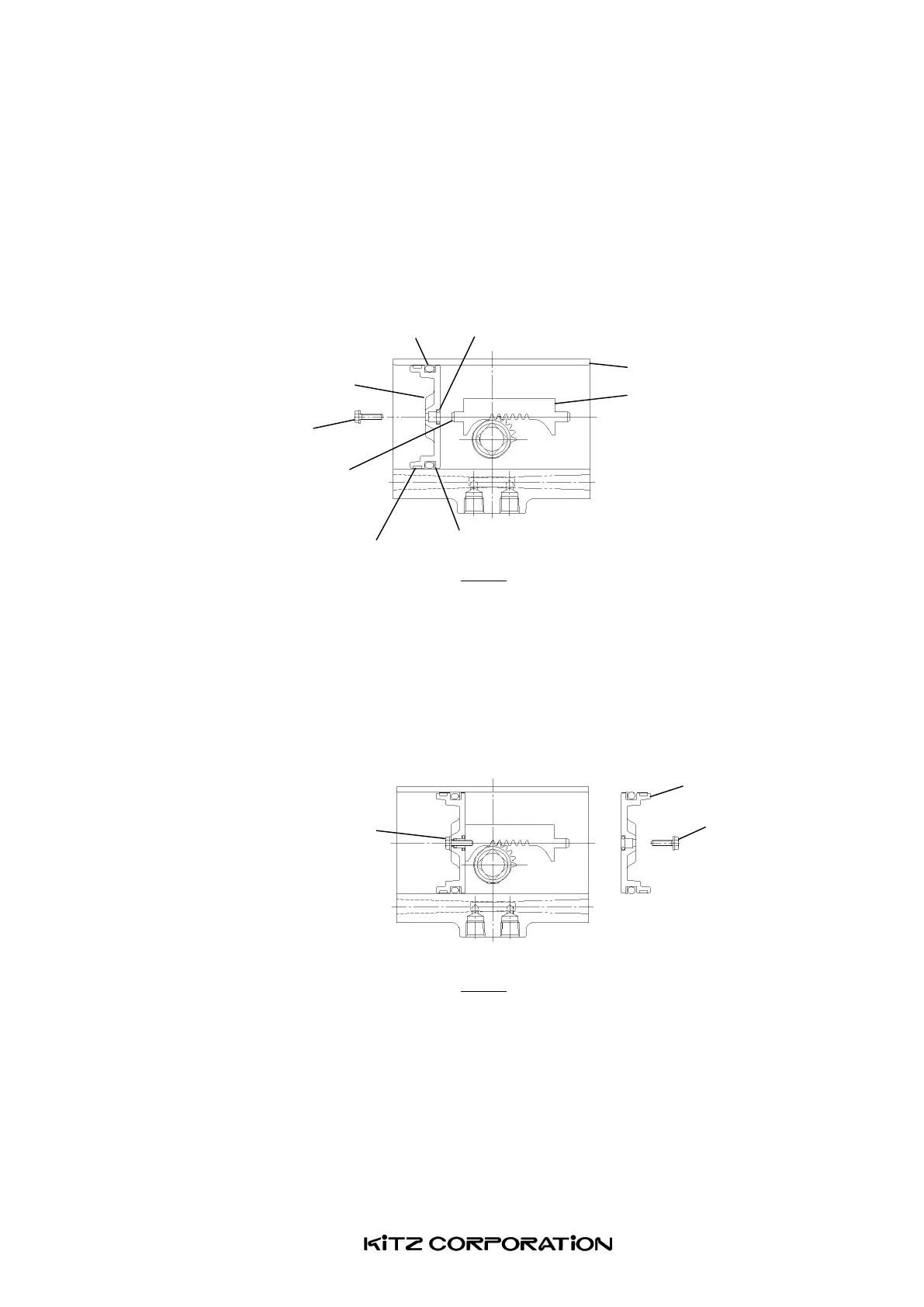

(7) Lubricate the gear rack teeth and assemble it with the piston as follows: Mesh the first
tooth of the pinion with the first space (bottom of tooth) of the rack, and insert the
projection of the rack into the center hole of the piston. Temporarily assemble the piston
and the rack with a hexagon headed bolt. Apply LOCKTITE No.262 or the equivalent to
the bolt beforehand for secured assembly (Fig.19).
Fig.19
(8) Assemble another piston with another projection of the rack. Securely tighten it with a
hexagon headed bolt and a flat washer. Also at this time tighten the first piston and the
first rack projection securely (Fig.20).
Fig.20
Housing <1>
Projection of
the gear rack
O-ring <45A>
O-ring <45D>
Back-up ring <146>
