2 Reserve a certain length of drain hose and power cord for installation when binding
them. When binding to a certain degree, separate the indoor power and then
separate the drain hose.
3 Bind them evenly.
4 The liquid pipe and gas pipe should be bound separately at the end.
Note: The mains power cable and the control cable must not be crossed or wrapped
around each other. The drain hose should be located on the underside.

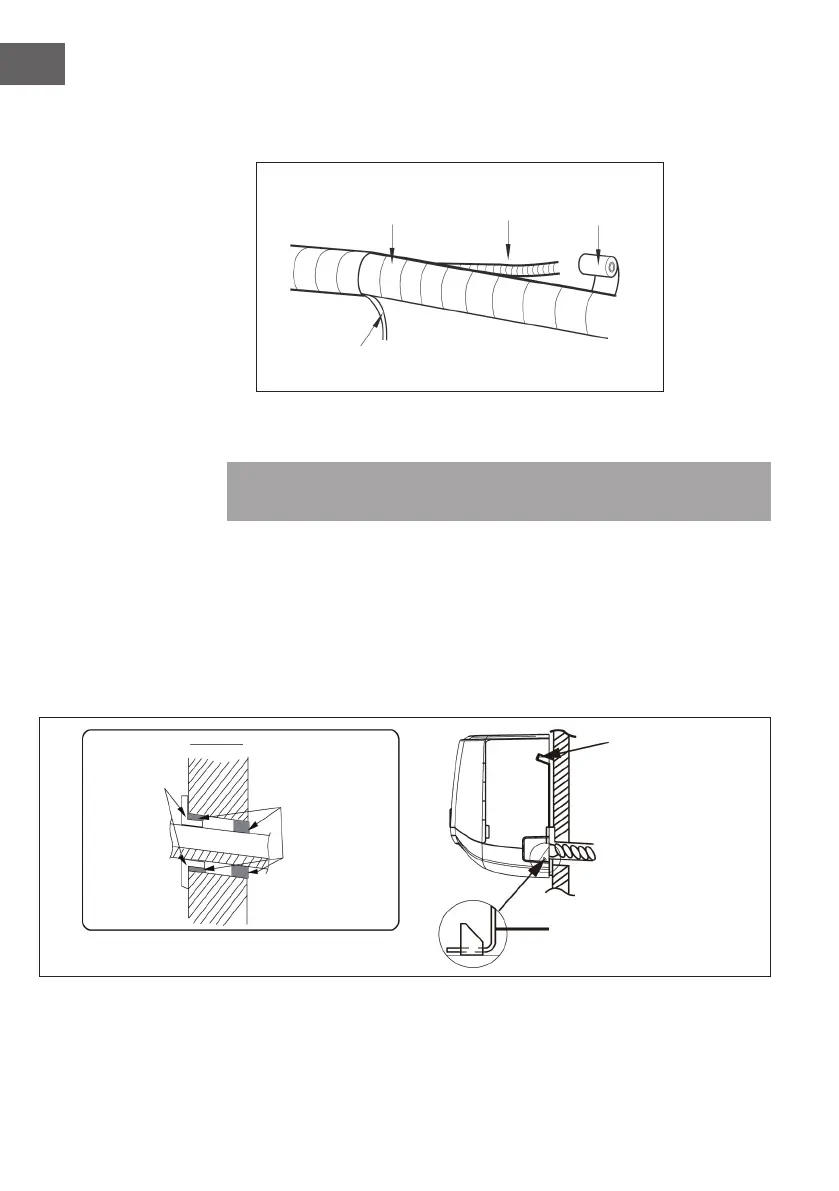

Step 9: Suspend the Indoor Air Conditioner
1 Put the bound pipes in the wall pipe and then make them pass through the wall
hole.
2 Hang the indoor unit on the wall-mounting frame.
3 Stuff the gap between pipes and wall hole with sealing gum.
4 Fix the wall pipe.
5 Check if the indoor unit is installed rmly and closed to the wall.
Connection pipe
Drain hose
Tape
Indoor power cord
Indoor Outdoor
Wall pipe
Sealing gum
Upper hook
Lower hook of
wall-mounting frame
To Next Page
