Step 2: Installation of the Drain Nozzle
(only for outdoor air conditioning systems with cooling and heating function)

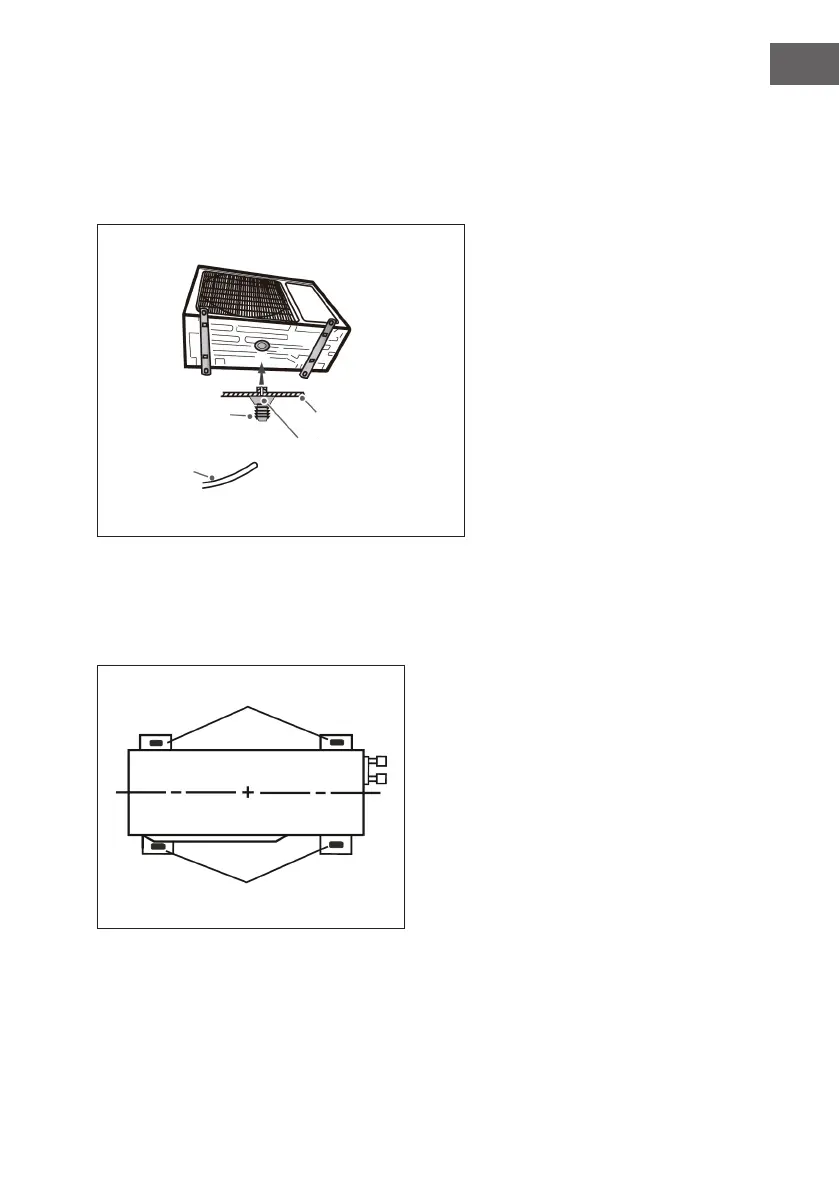

1 Connect the outdoor drain joint into the hole on the chassis, as shown in the picture
below.
2 Connect the drain hose into the drain vent.
Step 3: Fixing the Outdoor Air Conditioner
1 Place the outdoor unit on the support.
2 Fix the foot holes of outdoor unit with bolts.
Drain vent
Drain hose
Outdoor drain joint
Chassis
Foot holes
Foot holes
