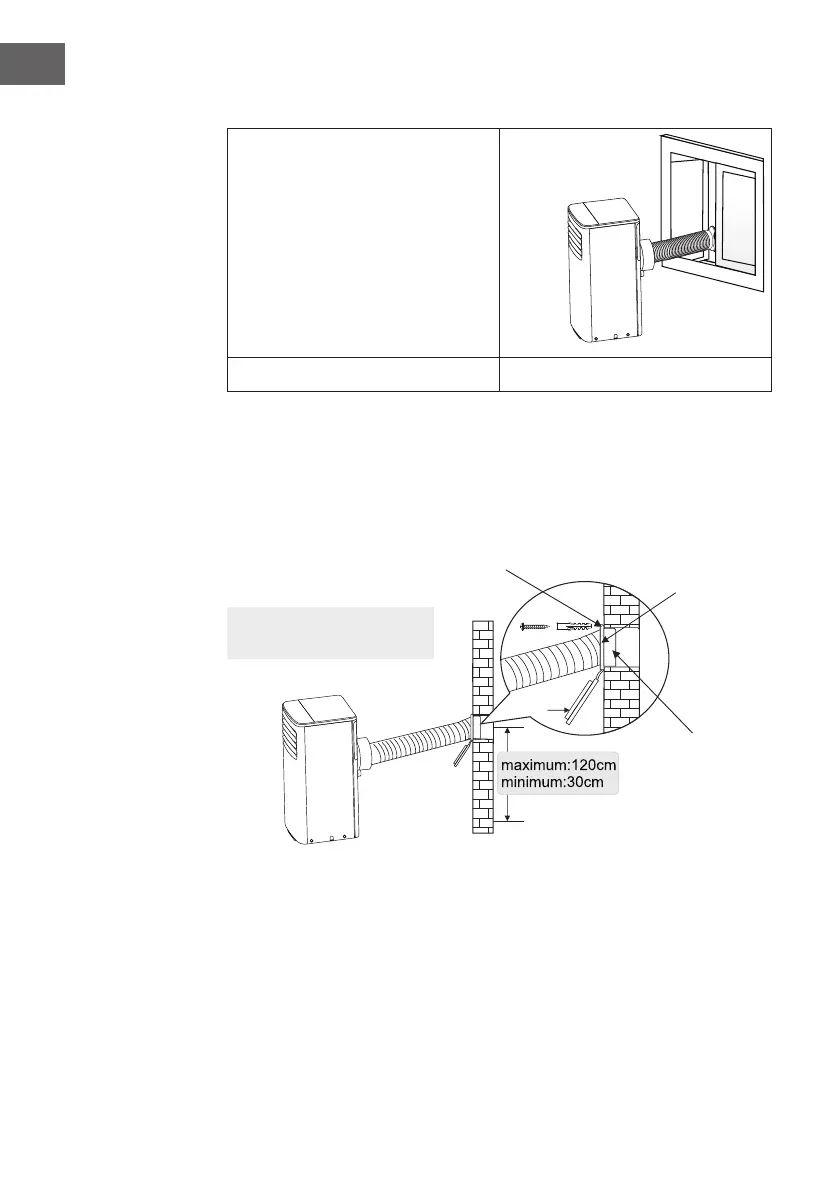

Install the exhaust duct into the window
Remove the unit with the packed
exhaust duct next to the window,
and then connect the adaptor B (at
mouth) of the exhaust duct with the
window. (Fig.E)
E
Install the exhaust duct into the wall
1. Prepare a hole in the wall. Install the wall exhaust adaptor onto the wall by
using 4 expansion screw sleeve and type C screws, be sure to x thoroughly.
2. Connect the exhaust duct to wall exhaust adaptor. (Fig.G)
wall exhaust
adaptor
expansion screw sleeve position
adaptor B
(round mouth)
Note: Cover the hole using the
adapter cap when not in use.
G
