Klein Tools CL120KIT User Manual

8 9
ENGLISH

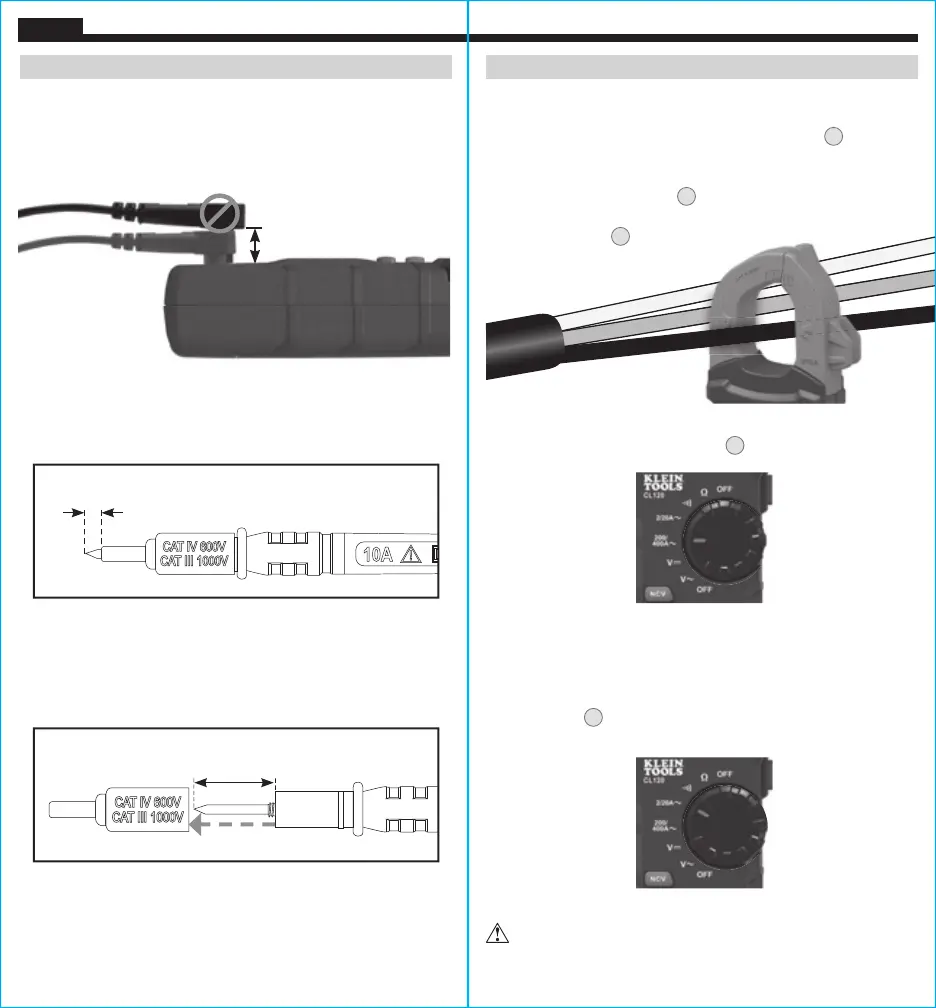

OPERATING INSTRUCTIONS
AC CURRENT (LESS THAN 400A)
AC Current is measured by pressing the clamp trigger
10
to open
the clamp and placing it around a current-carrying wire. When
measuring, care should be taken to ensure that the clamp is
completely closed with trigger
10
fully released, and that the wire
passes perpendicularly through the center of the clamp in line with
the arrow markings
11
.
To measure current:
1. Rotate the Function Selector switch
2
to the 200/400 A setting.
2. Place clamp around wire. The current measurement will be shown
in the display.
NOTE: If the measurement is less than 20A, rotate the Function
Selector switch
2
to the 2/20 A setting for improved resolution.
Disconnect test leads when measuring with the clamp.
OPERATING INSTRUCTIONS
CONNECTING TEST LEADS
Do not test if leads are improperly seated. Results could cause
intermittent display readings. To ensure proper connection, firmly
press leads into the input jack completely.
TESTING IN CAT III MEASUREMENT LOCATIONS
Ensure the test lead shield is pressed firmly in place. Failure to use
the CATIII / CATIV shield increases arc-flash risk.
TESTING IN CAT II MEASUREMENT LOCATIONS
CAT III / CAT IV shields may be removed for CAT II locations. This
will allow testing on recessed conductors such as standard wall
outlets. Take care not to lose the shields.
INCORRECT
CORRECT
0.7" (18 mm)
5/32"
(4 mm)
HOT WIRE
GROUND WIRE
LIVE
CABLE
NEUTRAL WIRE

Klein Tools CL120KIT Specifications

General

Measuring category	CAT III 600V
AC current maximum resolution (probe)	600 A
Product color	Black, Orange
Battery type	AAA
Number of batteries supported	3
Carrying case	Yes

Weight and Dimensions

Depth	77 mm
Width	41 mm
Height	221 mm
Weight	426 g
