14
ENGLISH
Red leadBlack lead

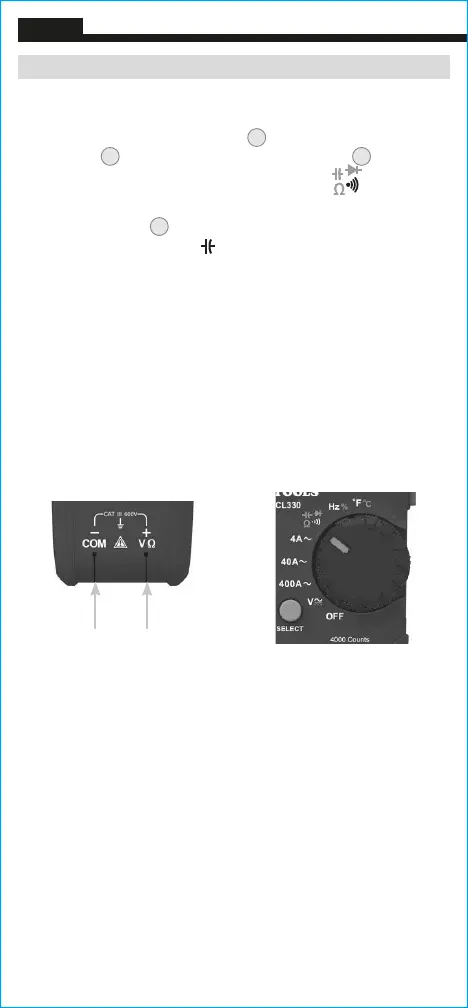

CAPACITANCE
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/Capacitance/Diode-Test
setting.
NOTE: The meter defaults to Continuity testing in this mode. Press
the "SELECT" button
12
three times to enter Capacitance testing
mode. The Capacitance icon
will appear on the display. The
meter should read 0 nF with test leads open.
2. Remove power from circuit.
3. Measure capacitance by connecting test leads across the
capacitor. The meter will auto-range to display the measurement
in the most appropriate range.
NOTE: When measuring low capacitance (<1nF), the actual
capacitance value is the measured value minus the test lead open
circuit value.
OPERATING INSTRUCTIONS
