5

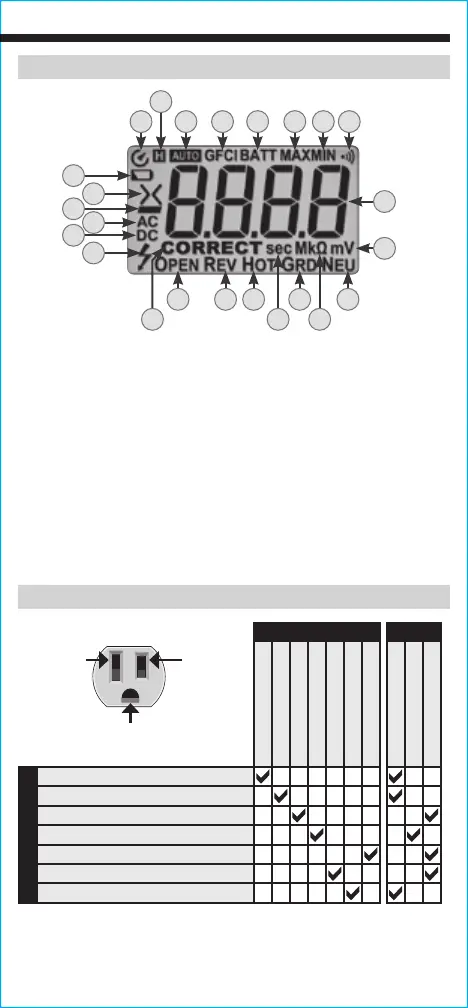

FEATURE DETAILS - LCD
WIRING CONDITIONS
A Auto Power-Off Indicator
B Data Hold Indicator
C Automatic Ranging Indicator
D GFCI Indicator
E Battery Test Indicator
F Maximum Value Indicator
G Minimum Value Indicator
H Audible Continuity Indicator
I Low Battery Indicator
J Greater Than / Less Than
Indicators
K Negative Polarity Indicator
L AC Voltage Indicator
A
P
O S U
Q R T V
W
X
B
J
L
N
K
M
I
C D E F G H
LCD WILL DISPLAY
VOLTAGE*
"CORRECT"
"OPEN GRD"
"OPEN NEU"
"OPEN HOT"
"REV HOT GRD"
"REV HOT NEU"
"OPEN GRD NEU"
LINE VOLTAGE
NO VOLTAGE
>30V VOLTAGE
WIRING CONDITION
WIRED CORRECTLY
OPEN GROUND
OPEN NEUTRAL
OPEN HOT
DUAL OPEN (NEUTRAL & GROUND)
REVERSED HOT/GROUND
REVERSED HOT/NEUTRAL
Hot
(Black)
Ground (Green)
Neutral
(White)
*Expected voltage reading on LCD based on the indicated wiring condition.
M DC Voltage Indicator
N Hazardous Voltage Warning Indicator
O Correct Wiring Indicator
P Open Circuit Indicator
Q Reversed Polarity Indicator
R Hot Conductor Indicator
S Seconds Indicator
T Ground Conductor Indicator
U Megaohms / Kiloohms Indicator
V Neutral Conductor Indicator
W Volts / Millivolts Indicator
X Measurement
