SYMBOLS ON TESTER
AC Alternating Current DC Direct Current
+
Positive DC Polarity or
Positive Lead Inupt
–
Negative DC Polarity
COM Common / Negative Lead Input
Double Insulated Class II Ground
Warning or Caution
Risk of Electrical Shock
LoZ Indicates that this is a low-impedence tester

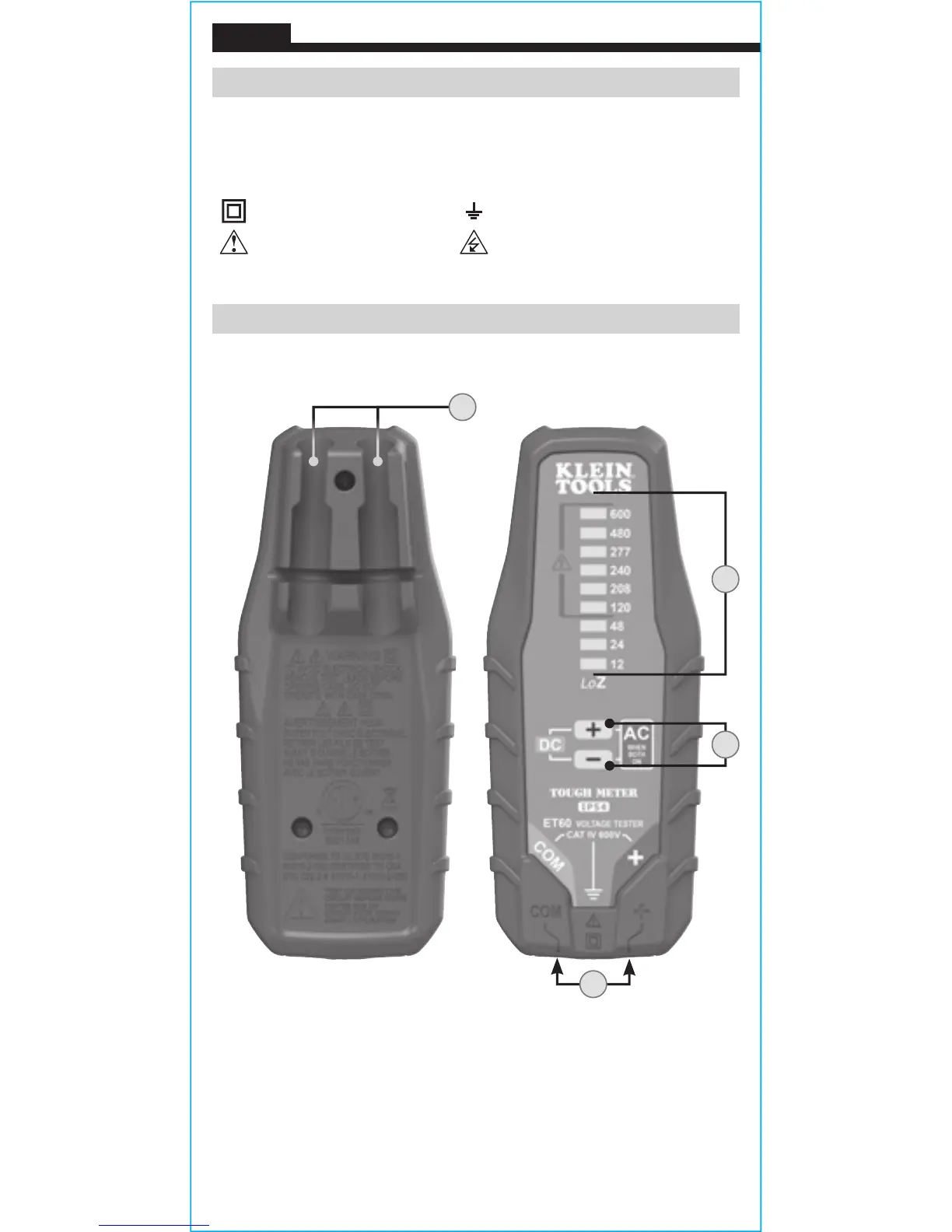

FEATURE DETAILS
ENGLISH
NOTE: There are no user-serviceable parts inside tester.
1.
Test Lead Holders
2.
Voltage Indicator LEDs
3.
DC Polarity Indicators (indicates AC when both are illuminated)
4.
Test Lead Jacks (bottom of tester)
Back of Tester
1
4
Front of Tester
2
3
