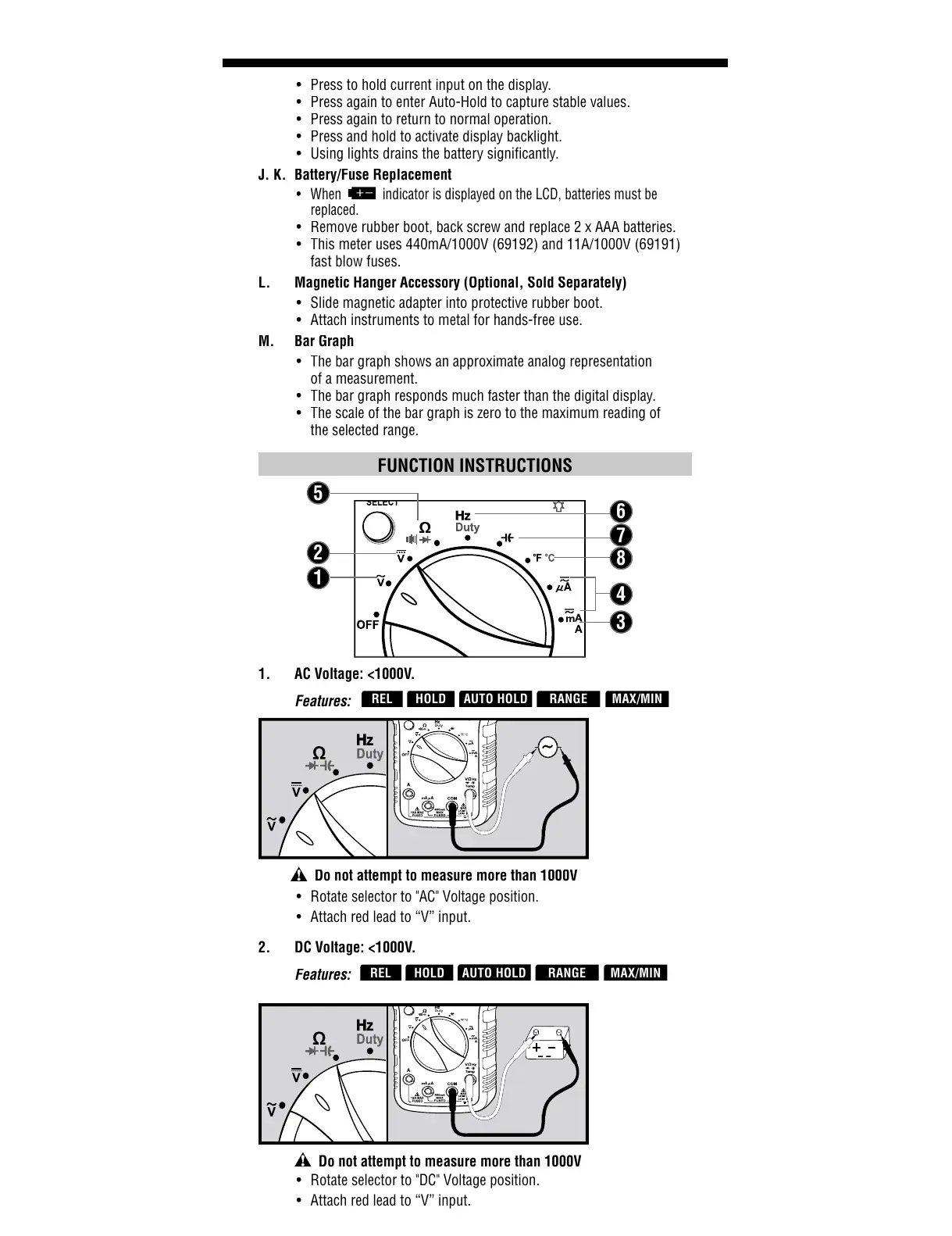

Klein Tools MM1300 - FEATURE DETAILS; Battery;Fuse Replacement; Magnetic Hanger Accessory; Bar Graph

•
Press to hold current input on the display.
•
Press again to enter Auto-Hold to capture stable values.
•
Press again to return to normal operation.
•
Press and hold to activate display backlight.
•
Using lights drains the battery signifi cantly.
J. K. Battery/Fuse Replacement
•
When
indicator is displayed on the LCD, batteries must be
replaced.
•
Remove rubber boot, back screw and replace 2 x AAA batteries.
•
This meter uses 440mA/1000V (69192) and 11A/1000V (69191)
fast blow fuses.
L. Magnetic Hanger Accessory (Optional, Sold Separately)
•
Slide magnetic adapter into protective rubber boot.
•
Attach instruments to metal for hands-free use.
M. Bar Graph
•
The bar graph shows an approximate analog representation
of a measurement.
•
The bar graph responds much faster than the digital display.
•
The scale of the bar graph is zero to the maximum reading of
the selected range.
FUNCTION INSTRUCTIONS
1. AC Voltage: <1000V.
Features:
Do not attempt to measure more than 1000V
•
Rotate selector to "AC" Voltage position.
•
Attach red lead to “V” input.
5
1
8
3
4
7
6
MAX/MINRANGEHOLDREL
AUTO HOLD
2
2. DC Voltage: <1000V.
Features:
Do not attempt to measure more than 1000V
•
Rotate selector to "DC" Voltage position.
•
Attach red lead to “V” input.
MAX/MIN
RANGEHOLDREL
AUTO HOLD
