Klipsch R-10SW User Manual

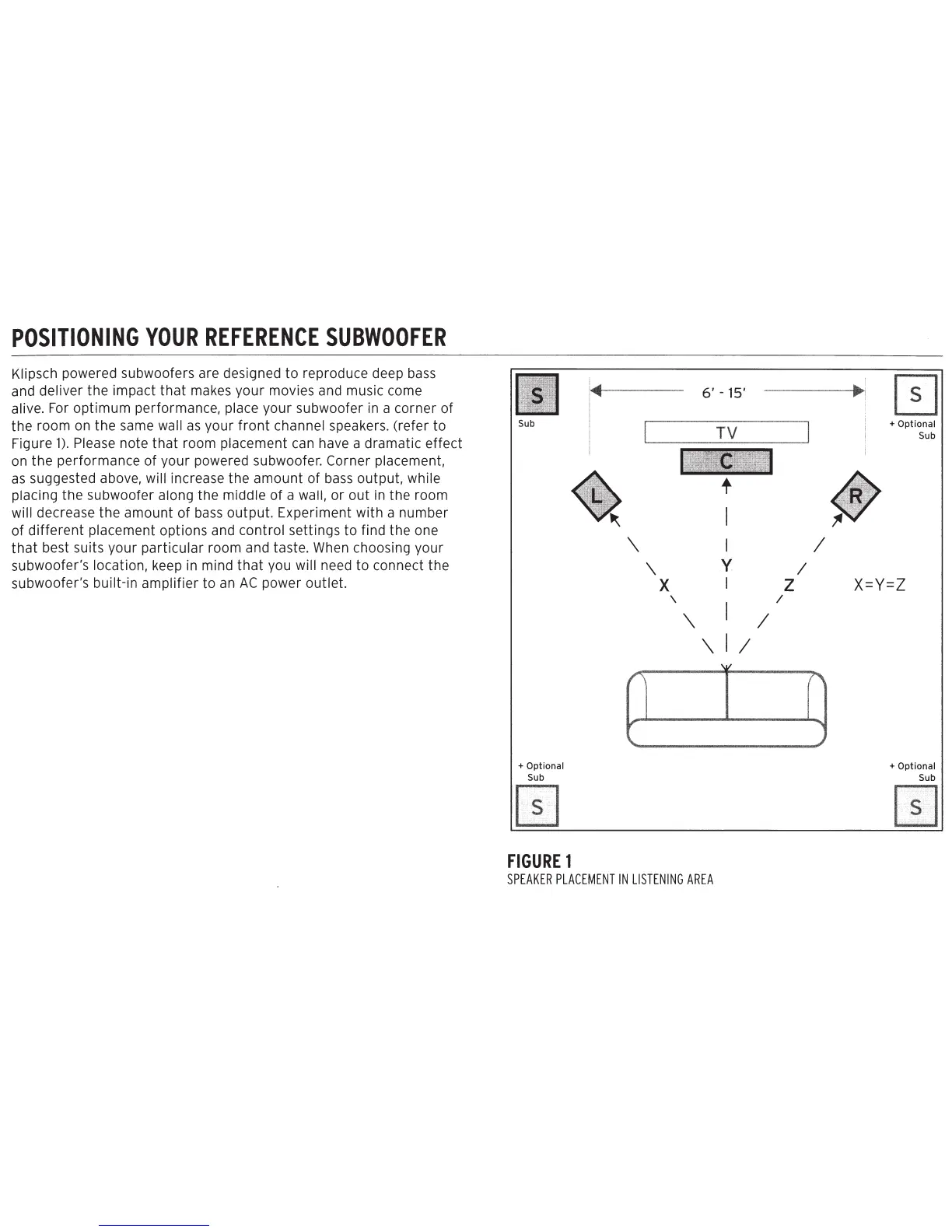

POSITIONING YOUR REFERENCE SUBWOOFER
Klipsch powered subwoofers are designed to reproduce deep bass
and
deliver the impact that makes your movies and music come
alive. For
optimum performance, place your subwoofer in a corner of
the room on the same wall as your front channel speakers. (refer to
Figure 1). Please note that room placement can have a dramatic effect
on the performance of your powered subwoofer. Corner placement,
as suggested above, will increase the amount of bass output, while
placing
the subwoofer along the middle of a wall, or out in the room
will decrease
the amount of bass output. Experiment with a number
of different placement options and control settings to find the one
that best suits your particular room and taste. When choosing your
subwoofer's location, keep in mind that you will need to connect the
subwoofer's built-in amplifier to an AC power outlet.
Sub
+Optional
Sub
FIGURE 1
6' -15'
t
I
\ I
n
r
""
\ y
X I
\
\ I
\I/
'\I
SPEAKER PLACEMENT IN LISTENING AREA
I
z
I
I
["'
""
_.J
+Optional
Sub
X=Y=Z
+Optional
Sub

Klipsch R-10SW Specifications

General

Frequency Response	32Hz - 120Hz +/- 3dB
Maximum Acoustic Output	112dB
Enclosure Material	MDF
Phase	Switchable 0-180 degrees
Auto Power On/Off	Yes
Amplifier Power	150W RMS, 300W Peak
Driver	10-inch
Enclosure Type	Bass-reflex
Inputs	Line level/LFE RCA jacks
Amplifier	Digital
Low Pass Crossover	40-120Hz
Woofer	10" (25.4 cm) spun-copper IMG woofer
