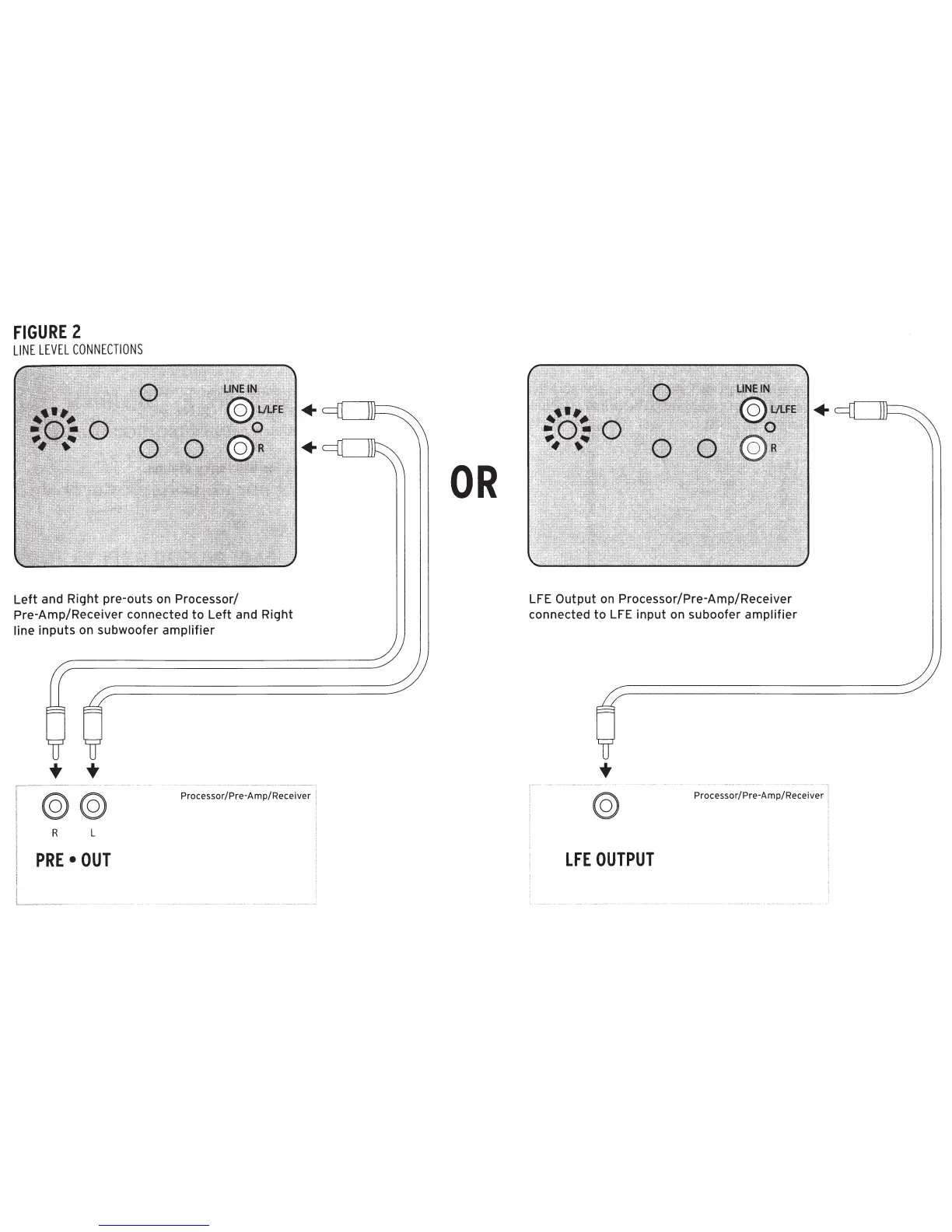

FIGURE
2
LINE
LEVEL
CONNECTIONS
Left
and Right pre-outs
on
Processor/
Pre-Amp/Receiver connected
to
Left and Right
line inputs
on
subwoofer amplifier
Processor/Pre-Amp/Receiver
R L
PRE
•
OUT
OR
LFE
Output
on
Processor/Pre-Amp/Receiver
connected
to
LFE
input
on
suboofer amplifier
•
@
Processor/Pre-Amp/Receiver
LFE
OUTPUT
