INITIAL START-UP
System configuration
Before commissioning the appliance it is advisable to choose which type of system it has been connected to, by
accessing “Menu 06 – System type”.
The available configurations are given here below:

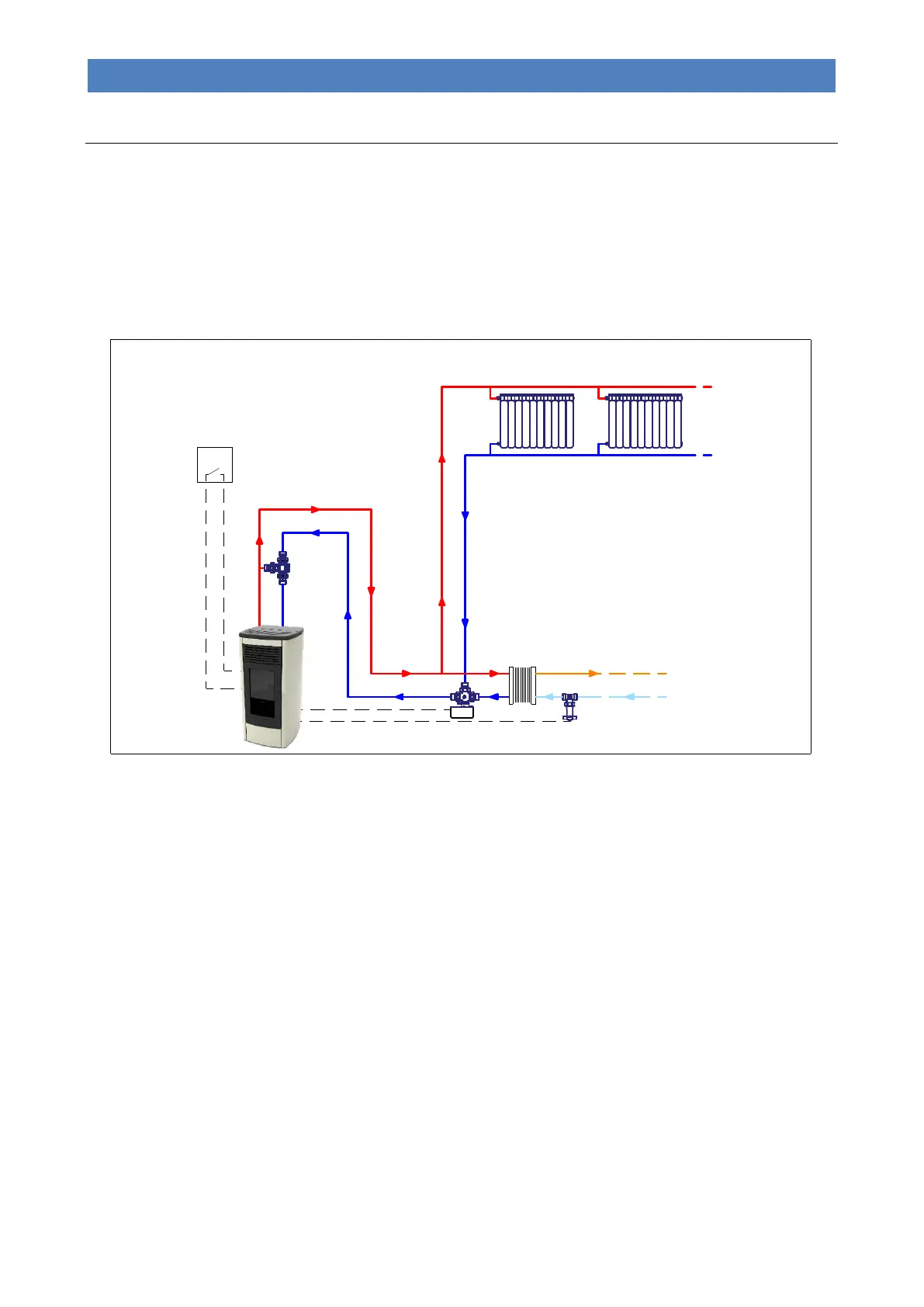

PLUMBING LAYOUT “1” – Boiler stove connected to a heating system and (potentially) an external plate heat
exchanger for the production of DHW.
T.A.
AB B
A
Plumbing layout 1 involves connecting the boiler stove to a heating system (or centralised puffer) managed by one or
more room thermostats. These are connected to the terminal located inside the appliance’s left technical compartment.
DHW generation, where required, will be obtained through a plate heat exchanger fitted outside of the boiler stove and
controlled by a flow switch, which is also connected to a terminal on the boiler stove. This function of this switch is to
bring the appliance immediately to the DHW output working mode and to switch a three-way motor-driven valve to give it
priority.
PLUMBING LAYOUT “2” – Not used
PLUMBING LAYOUT “3” – Boiler stove connected to a heating system and a DHW cylinder.
