THE DISPLAY
The appliance's operating mode is displayed on the console. After turning on the menu, it is possible to choose from
many types of display and available settings according to the selected menu.

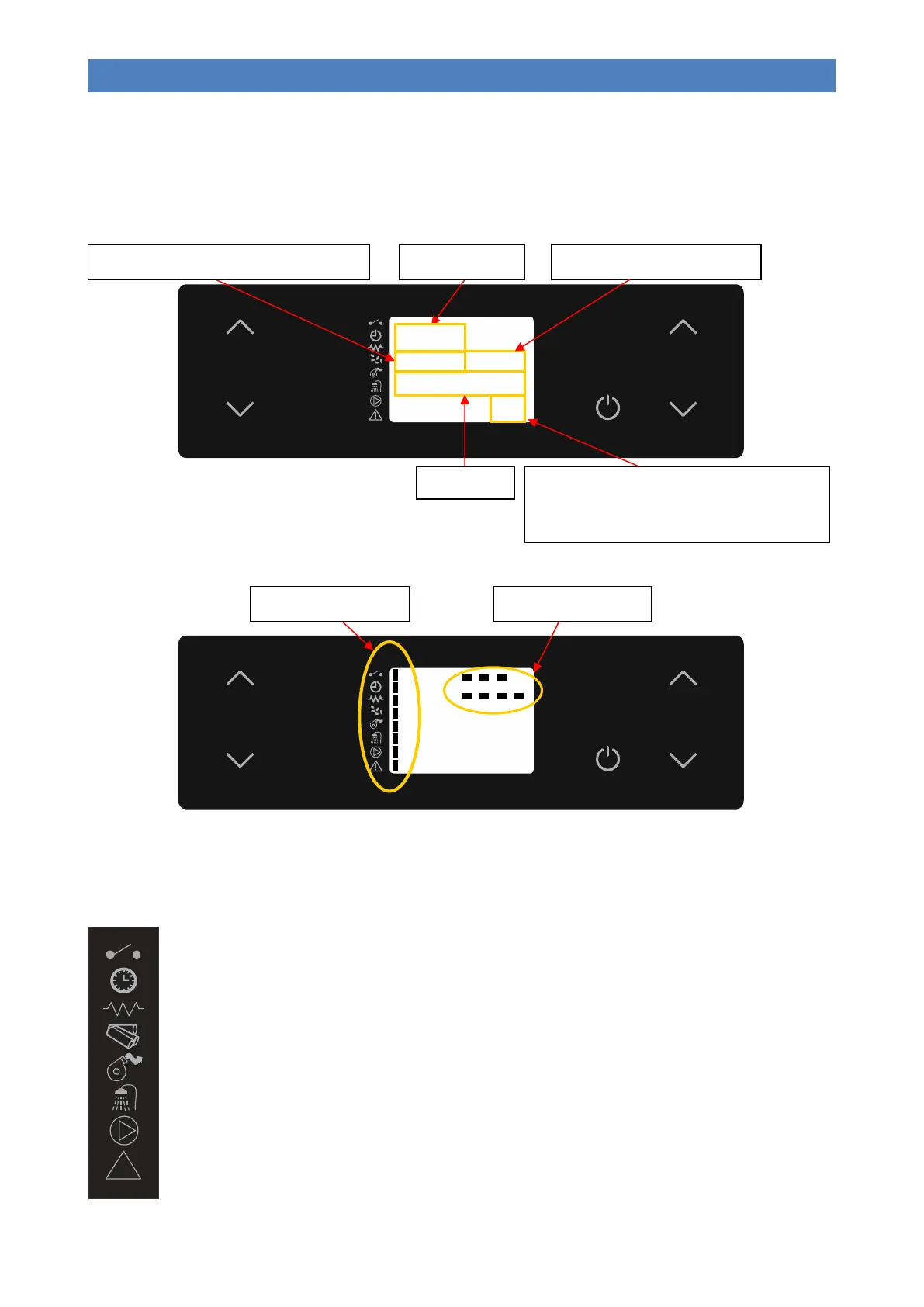

The figures below show the display when the appliance is in ON mode.
The following figure describes the meanings of the status signals appearing on the left side of the display (1st LED
SERIES).
ROOM THERMOSTAT: the LED is on when the thermostat contact is open.
PROGRAMMABLE THERMOSTAT: the LED lights up when at least one start-up and switch-off program is active.
IGNITION PLUG: the LED is on when the ignition plug is active.
SCREW FEED: the LED lights up when the pellet loading gear motor is started.
FLUE GAS EXTRACTOR: the LED lights up when the flue gas extractor is active.
DHW DEMAND: the LED lights up when the DHW flow switch contact is closed (which means there is demand for
hot water) or the DHW cylinder or puffer (where fitted) is in demand.
PUMP: the LED lights up when the system circulation pump is active.
ALARM: the LED lights up when the boiler is in a state of alarm.
ROOM TEMPERATURE (optional)
17:19
- - - - 60°
C
WORK 3
2
REAL WORK POWER
(It is shown flashing only when it is different
from the one actually set)
