MEP-4xxx Direct-Coupled Actuators (40 to 90 in-lb.) 8 Applications Guide, AN0513A Rev. J
The HPO-5073 repair kit is designed to replace link-
ages on VEP-43/45/83/85 and VEB-43/46 ball valves
for use with any standard (not quick-mounting “V”
series) MEP-4xxx actuator:
• VEP-43ABB7xx through VEP-43GBB7xx
• VEP-45A1x7xx through VEP-45H4x7xx
• VEB-43/46 series ending in CK or CF
Hardware for mounting the linkage to the valve, and
the actuator to the linkage, are included with the kit.
The actuator must be ordered separately.

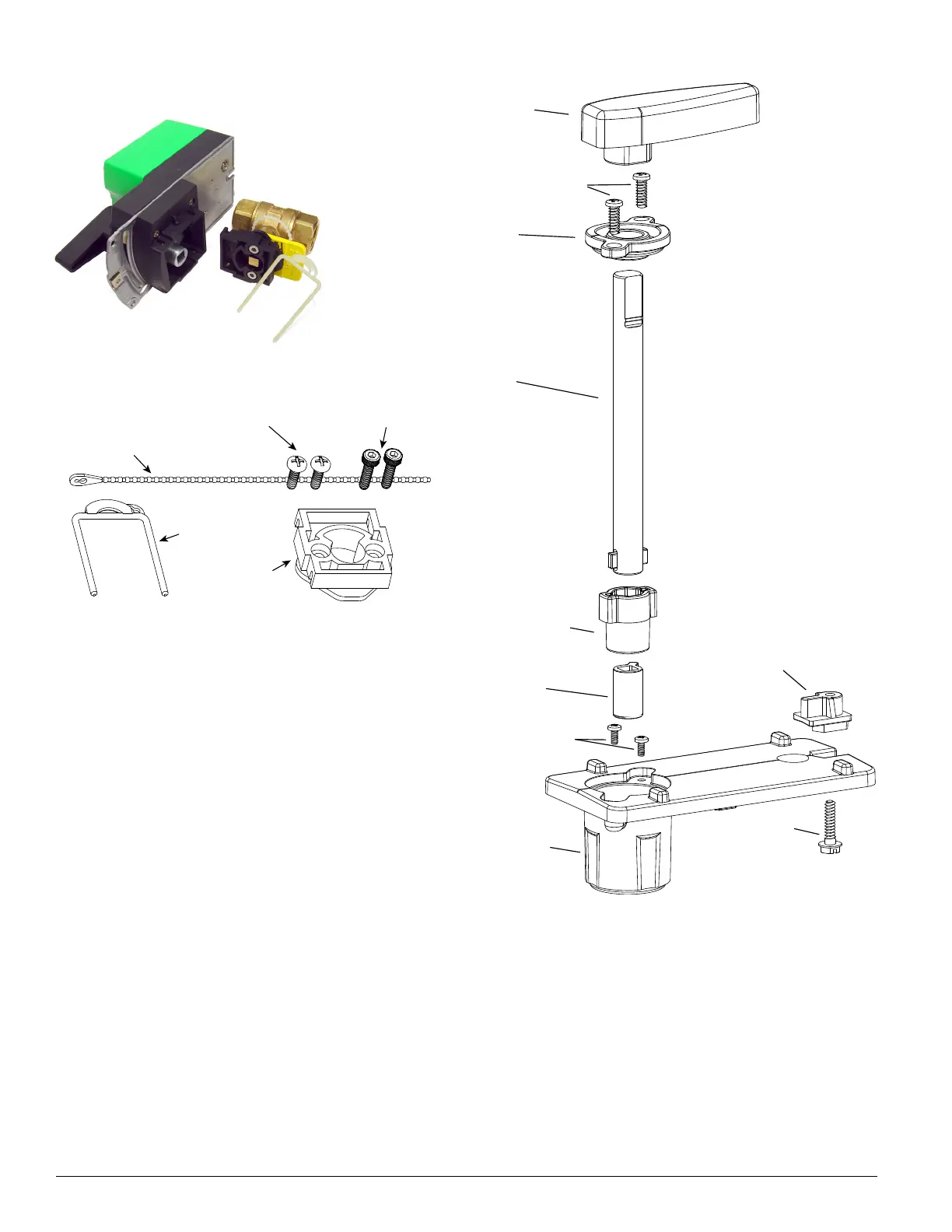

Handle
Shaft
High-Low Screws
Cover
Sub Shaft
Thermal Break
Machine Screws
Plate Mount
Non-Rotation Bracket
Screw
The HPO-5074 kit is for adapting valve bodies for
use with (only) “quick mounting” MEP-4xxxV actu-
ators. MEP-4xxxV actuators have an aached handle
and shaft as well as a plastic mounting bracket on
the boom of the actuator. See the relevant data
sheet for more information.
Beaded Tie
Locking
Bail/Clip
Valve Base
12 mm Screws
(VFB-4303_SX Bodies
and VEB-4303_SDL Valves)
15 mm Screws
(VFB-4____BX Bodies
and VEB-4____B__ Valves)
HPO-5074
assembled on
a Valve Body
and an MEP-
4xxxV Actuator
VEB-4x Series Valves Mounting/Repair Kits
