KMT Streamline SL-V 50 Plus User Manual

Section 9
High Pressure Water System
20412997
8-2012/Rev 12
9-5
9.4 System Components
The following figures illustrate the individual high pressure water system components.
NOTE
System components, specifications, and some maintenance procedures are
determined by the horsepower rating and/or plunger diameter. The information in
this section is organized and presented accordingly.

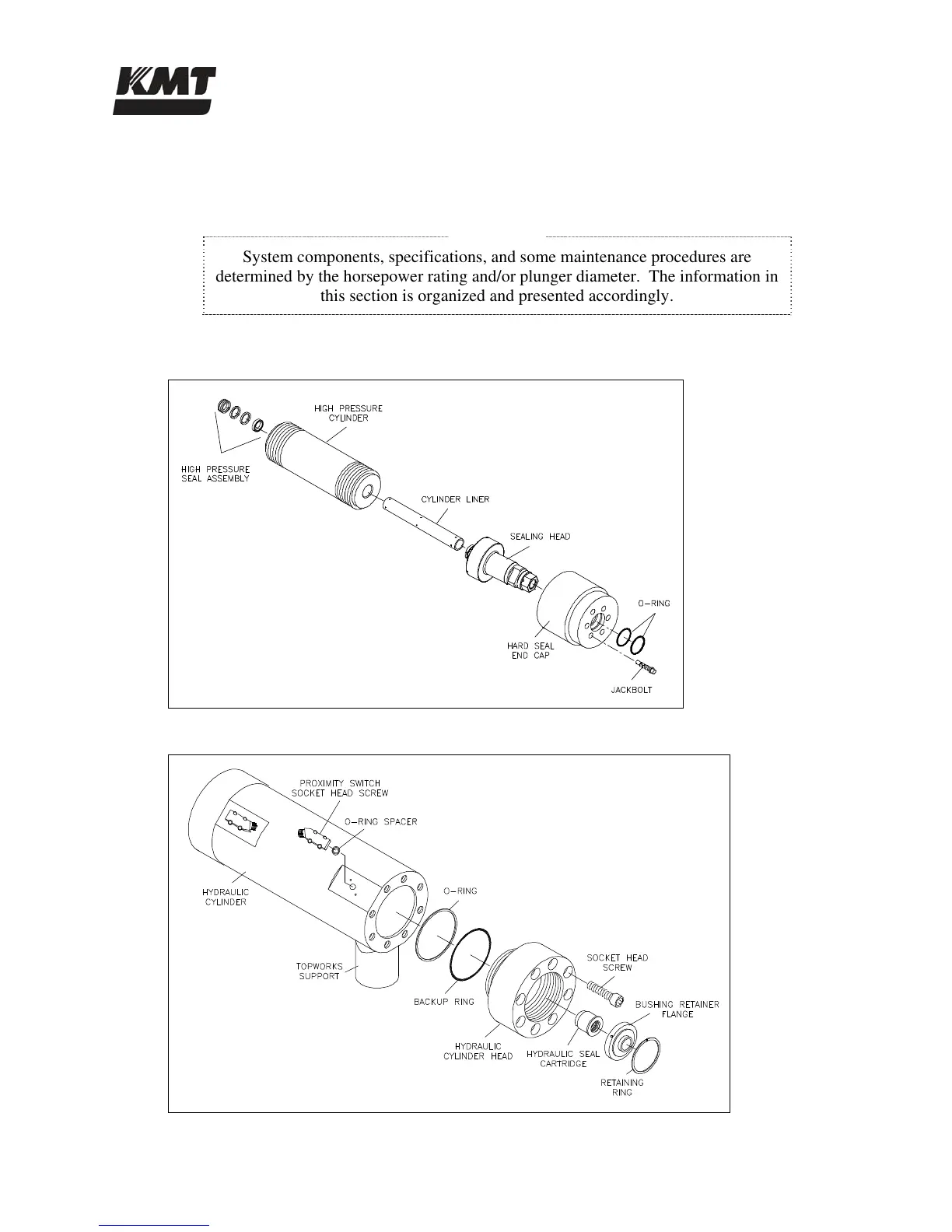

Figure 9-4: High Pressure Cylinder Assembly
Figure 9-5: Hydraulic Cylinder Assembly
