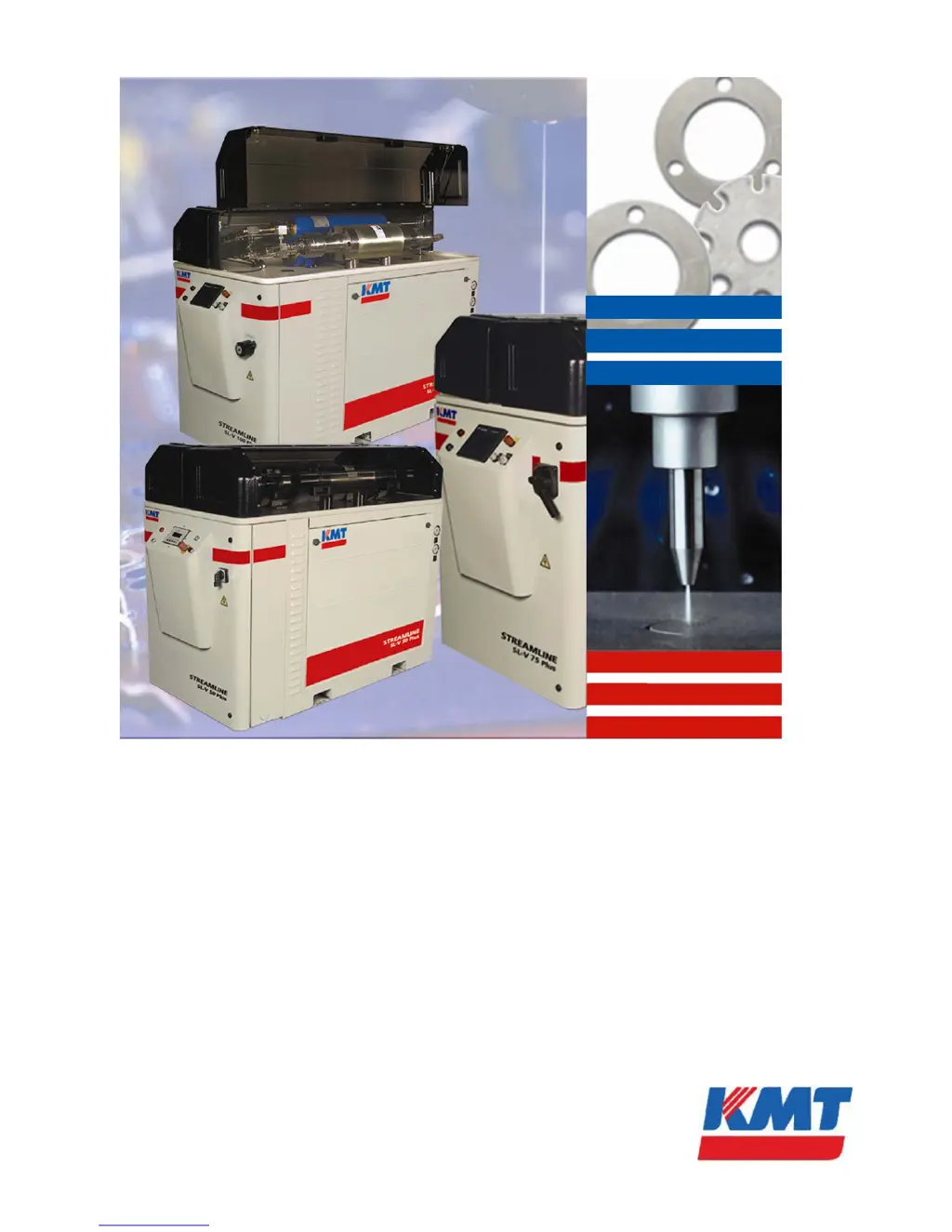

KMT Streamline SL-V Plus series

Questions and Answers

T
Traci JamesNov 21, 2025
Why is my KMT Streamline SL-V Plus pump not starting?
- M
  mark23Nov 21, 2025
  The pump may not start due to several reasons: * The emergency stop button may be depressed, in which case you should pull the e-stop button out. * The main power may be disconnected, so check the main power and verify that the main power disconnect is on. * The control power may have been interrupted, so check the power supply circuit for a tripped breaker. * Check the input and output of the 24 volt DC power supply. * Check the 2K1 relay. * A protection fault may have been activated, so check the display panel for fault messages. * The motor overload relay may have been tripped; identify the source of the overload, remedy the problem, and reset the overload relay. * The inlet water valve may be turned off; press the reset button on the Run Screen to reset the water valve...
R
Richard KellyAug 25, 2025
What to do if the KMT Streamline SL-V Plus Cutter pump quits running?
- H
  hardinkelliAug 26, 2025
  If the pump quits running, it could be due to: * Unsafe operation being detected, so check the display panel for fault messages. * Electrical power interruption, so check the power supply circuit for a tripped breaker. * Check the input and output of the 24 volt DC power supply. * Verify that power is available at the main power source. * Check the 2K1 relay coil. * Check the 4K0 relay. * The motor overload relay has been tripped; identify the source of the overload, remedy the problem, and reset the overload relay.
H
Hannah BrooksAug 27, 2025
Why is there no control power to my KMT Cutter?
- R
  Richard BernardAug 27, 2025
  If there is no control power, the possible causes are: * A tripped circuit breaker, so check the input and output of all circuit breakers. * A power supply fault, so check the input and output voltages at the power supply. * The emergency stop button is depressed, so pull the e-stop button out. * The master control relay is not energized, so verify that the contactor coil is pulling in on the master control relay. * Contact set failure on the master control relay, so verify that the contact sets on the master control relay are changing states when the relay is energized.
M
Monica FosterAug 27, 2025
What to do if the console display and lights do not illuminate on KMT Streamline SL-V Plus?
- S
  Samuel LittleAug 27, 2025
  If the console display and lights do not illuminate, check for the following: * Ensure the emergency stop button is not depressed; pull it out if it is. * Verify main power is connected and the main power disconnect is on. * Check the power supply circuit for a tripped breaker. * Check the input and output of the 24 volt DC power supply. * Check the 2K1 relay.
D
dhowardAug 28, 2025
What causes high oil temperature resulting in shutdown in KMT Streamline SL-V Plus?
- C
  cobbgeneAug 28, 2025
  High oil temperature leading to a shutdown can be caused by: * Restricted cooling water flow, so check the cooling water source for proper temperature and flow rate. * A water modulating valve stuck open or closed, in which case you should replace the valve. * Scale build-up in the heat exchanger restricting the flow, so the heat exchanger will need to be flushed or replaced. * Air cooler temperature switch not operating properly, so replace the switch. * No power to cooler fan motor, so check the power supply to the fan motor.
J
Joshua CarpenterSep 14, 2025
What causes water leaking from the weep hole on the hydraulic cylinder head flange of KMT Cutter?
- R
  ryan40Sep 15, 2025
  If water is leaking from the weep hole on the hydraulic cylinder head flange, it could be due to: * A failed high pressure seal assembly, so replace the high pressure seal assembly. * A damaged plunger, so check the plunger for longitudinal scratches or flaws. If detected, replace the plunger or return to KMT Waterjet for evaluation and rework. * Seal material buildup on plunger, so polish the plunger surface. * A damaged high pressure cylinder, so check for scratches, grooves or material buildup on the inside diameter of the cylinder.
S
stephanie07Sep 12, 2025
What causes water leaking from the weep hole in the sealing head gland nut of KMT Streamline SL-V Plus Cutter?
- J
  Jordan BlevinsSep 12, 2025
  Water leaking from the weep hole in the sealing head gland nut can be caused by: * High pressure piping gland nut is not tight and is not sealing properly, so tighten the gland nut to the proper torque specification. * Improper high pressure piping connection, so check the number of exposed threads past the collar on the high pressure piping. Only 1- 1/2 to 2-1/2 threads should be exposed. * Damaged sealing head gland nut, so check the gland nut for cracks due to fatigue. If cracks are detected, replace the gland nut.
B
Brian PowellSep 13, 2025
What causes hydraulic oil leaking from the weep hole in the hydraulic cylinder head of KMT Streamline SL-V Plus Cutter?
- S
  stacy54Sep 13, 2025
  If hydraulic oil is leaking from the weep hole in the hydraulic cylinder head, it's likely due to a failed hydraulic cartridge seal. Replace the cartridge seal. If the leak persists, check the plunger for linear scratches or scoring.
E
Elizabeth HerreraSep 5, 2025
What causes erratic pressure fluctuations in the KMT Streamline SL-V Plus?
- S
  Susan LevineSep 6, 2025
  Erratic fluctuations in operating pressure, or the inability to reach or maintain set pressure, can occur if the screen in the proportional pressure valve is blocked with debris. Remove the valve and clean the screen.
K
Kevin WaltersSep 3, 2025
What to do if the KMT Cutter pump shaft will not turn?
- K
  keith45Sep 3, 2025
  If the pump shaft will not turn, it could be due to: * The flexible coupling has failed, so replace the flexible coupling. * The hydraulic pump has seized, so replace the hydraulic pump.

Summary

SECTION 1 INTRODUCTION

1.1 Overview

Provides a general introduction to the Streamline SL-V Plus series waterjet cutting systems.

1.2 Performance Features and Options

Details the performance capabilities, design advantages, and optional features of the SL-V series.

1.3 Operational Overview

1.4 Safety

Outlines critical safety precautions, including lockout/tagout procedures and warning labels.

SECTION 2 INSTALLATION

2.1 Overview

Introduces installation and commissioning requirements, safety issues, and operation.

2.2 Installation Summary

2.4 Power Requirements

Details electrical power and voltage requirements, and ampacity.

2.5 Service Connections

Describes required water, drain, and air supply line connections.

Cutting Water

2.7 High Pressure Piping

Covers installation procedures for high pressure tubing and fittings.

2.8 High Pressure Connections

Essential steps for installing high pressure discharge piping.

2.9 Commissioning

Procedure for initial startup and testing of the machine.

SECTION 3 MAINTENANCE

3.1 Overview

3.2 Maintenance

Highlights the importance of routine and preventive maintenance for reliable operation.

Daily Inspection

Daily inspection procedures to identify and remedy problems before operation.

Periodic Maintenance

High Pressure System Maintenance

Details maintenance procedures for the high pressure system components.

3.3 Maintenance Precautions

Lists essential precautions to ensure safety and prevent equipment damage during maintenance.

SECTION 4 OPERATION

4.1 Overview

Introduces the PLC system, operator interface, and optional controls.

4.2 Startup Sequence

Details startup procedures based on previous stop conditions.

4.5 Run Screens

Describes the functions and configurations of the Run Screen.

4.6 Pressure Control Screen

4.7 Setup Screens

4.8 Stroke Rate Screens

4.10 Run Screen Alarms

Lists and explains alarms that appear on the Run Screen.

4.11 Alarm Banners

Describes alarm banners that appear during shutdown conditions and possible remedies.

4.12 Alarms Screen

Allows viewing of multiple alarms and describes their conditions and results.

SECTION 5 LOW PRESSURE WATER SYSTEM

5.1 Overview

5.3 Operation

Describes how cutting water is introduced, its pressure, and monitoring.

5.4 Service and Maintenance Procedures

Details routine servicing and maintenance for water quality and supply.

Filter Assembly and Strainer Maintenance

Procedure for replacing the filter element and cleaning the strainer.

Booster Pump Adjustment

Procedure for adjusting the booster pump discharge pressure.

SECTION 6 RECIRCULATION SYSTEM

6.1 Overview

6.2 Operation (Oil-to-Water Models)

Describes cooling water introduction and regulation for heat exchangers.

6.3 Operation (Oil-to-Air Models)

Details the function of the oil-to-air heat exchanger and fan regulation.

6.4 Service and Maintenance Procedures

Covers routine servicing for oil supply to the main hydraulic system.

Hydraulic Oil Maintenance

Procedure for replacing hydraulic oil and maintaining the air breather.

Oil Filter Maintenance

Criteria and procedure for replacing the hydraulic oil filter element.

Operating Temperature Adjustment (Oil-to-Water Models)

SECTION 7 HYDRAULIC SYSTEM

7.1 Overview

Describes the main hydraulic power circuit supplying oil to the intensifier assembly.

7.2 Optional System Components

7.3 Operation

Explains the operation of the electric motor, pumps, and hydraulic fluid flow.

7.4 Service and Maintenance Procedures

Covers inspection and maintenance of the hydraulic system components.

Hydraulic Operating Pressure

Guidelines for checking and adjusting hydraulic operating pressure settings.

High Pressure Control Valve

Low Pressure Control Valve

Flexible Coupling Replacement

Procedure for replacing a failed flexible coupling between motor and pump.

Hydraulic Compensator Maintenance

Hydraulic Pump or Electric Motor Replacement

Procedures for replacing the hydraulic pump or electric motor.

Hydraulic Oil Replacement

Procedure for replacing hydraulic oil, emphasizing cleanliness.

SECTION 8 ELECTRICAL SYSTEM

8.1 Overview

Describes the integral motor starter, control circuitry, and operator interface.

8.3 Operation

Sensors and Solenoids

Softstarter

Proximity Switch Maintenance

SECTION 9 HIGH PRESSURE WATER SYSTEM

9.1 Overview

9.3 Operation

Redundant Intensifiers

9.5 Service and Maintenance Overview

General precautions for high pressure system maintenance.

Torque Specifications

Details torque specifications and tightening sequences for high pressure components.

9.6 High and Low Pressure Water Piping

High Pressure Cylinder Assembly Removal

High Pressure Cylinder Assembly Installation

High Pressure Cylinder Maintenance

Hard Seal End Cap Removal

Hard Seal End Cap Installation

High Pressure Discharge Check Valve

Low Pressure Inlet Check Valve

9.10 High Pressure Seal Assembly

High Pressure Seal Removal

9.11 Hydraulic Cartridge Seal and Plunger Removal

Hydraulic Cartridge Seal Installation

Hydraulic Piston Removal

Hydraulic Piston Installation

9.15 High Pressure Dump Valve

3-Port Pneumatic Control Dump Valve (SL-V 30, 50 and 60)

2-Port Pneumatic Control Dump Valve (SL-V 100)

9.16 Weep Holes

SECTION 10 TROUBLESHOOTING

10.1 Overview

Guide to identifying probable causes of system malfunctions and corrective actions.

10.2 Troubleshooting Guide

Table correlating malfunctions with indications and recommended comments.

Softstarter

SECTION 11 SPECIFICATIONS

11.1 Overview

11.3 Water Specifications

Cooling Water Supply (Recirculation System)

Water Quality Standards

11.4 Electrical Specifications

Details motor type, control voltage, power supply, and ampacity requirements.

11.5 Hydraulic and High Pressure Water System Specifications

Provides specifications for hydraulic and high pressure water systems.

11.6 Torque Specifications

Details torque specifications and tightening sequences for high pressure components.
