4.7 Setup Screens
Setup screens are configured for the specific machine, displaying only the available functions.

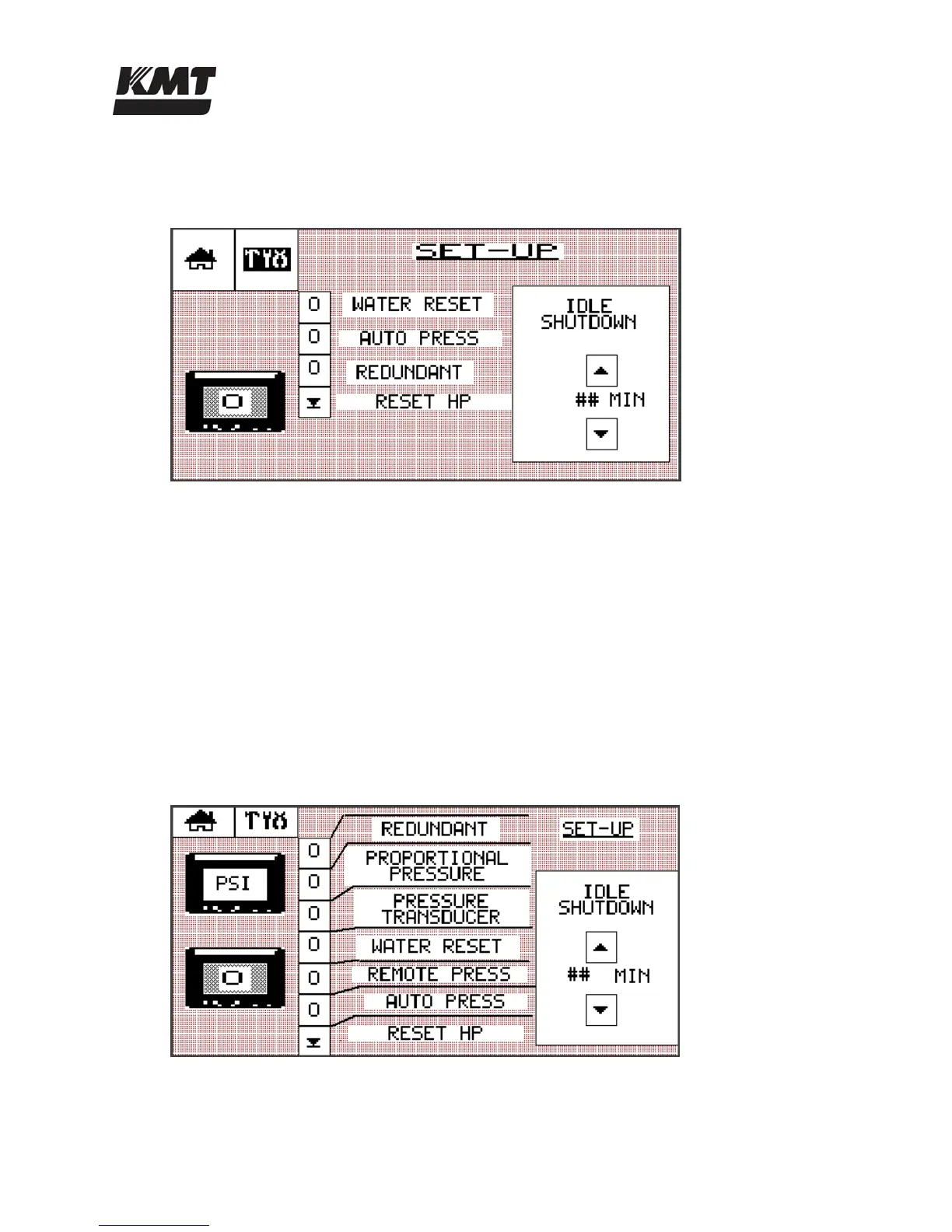

Figure 4-8: Setup Screen - Standard Units
The Setup Screen for a standard machine displays the following functions:
WATER RESET automatically shuts the inlet water solenoid valve five minutes after the
machine shuts down; press the control to turn it
ON or OFF
AUTO PRESS momentarily opens the dump valve on each transition from high to low
pressure for rapid pressure relief independent of the cutting orifice; press the control to
turn it
ON or OFF
REDUNDANT specifies if the machine is a single or redundant model; press the control to
turn it on for redundant or off for single
RESET HP is only pressed when a new version of the display program is installed
IDLE SHUTDOWN automatically stops the motor after a deadhead condition occurs; press
the ▲ or ▼ arrow to select an idle time from 5-60 minutes
Figure 4-9: Setup Screen - Pressure Transducer and Proportional Pressure Control
The Setup Screen in Figure 4-9 and the following functions will display if the machine is
equipped with analog control modules:
