KMT Streamline SL-V Plus series

Section 1
Introduction
20412914
8-2012/Rev 09
1-4

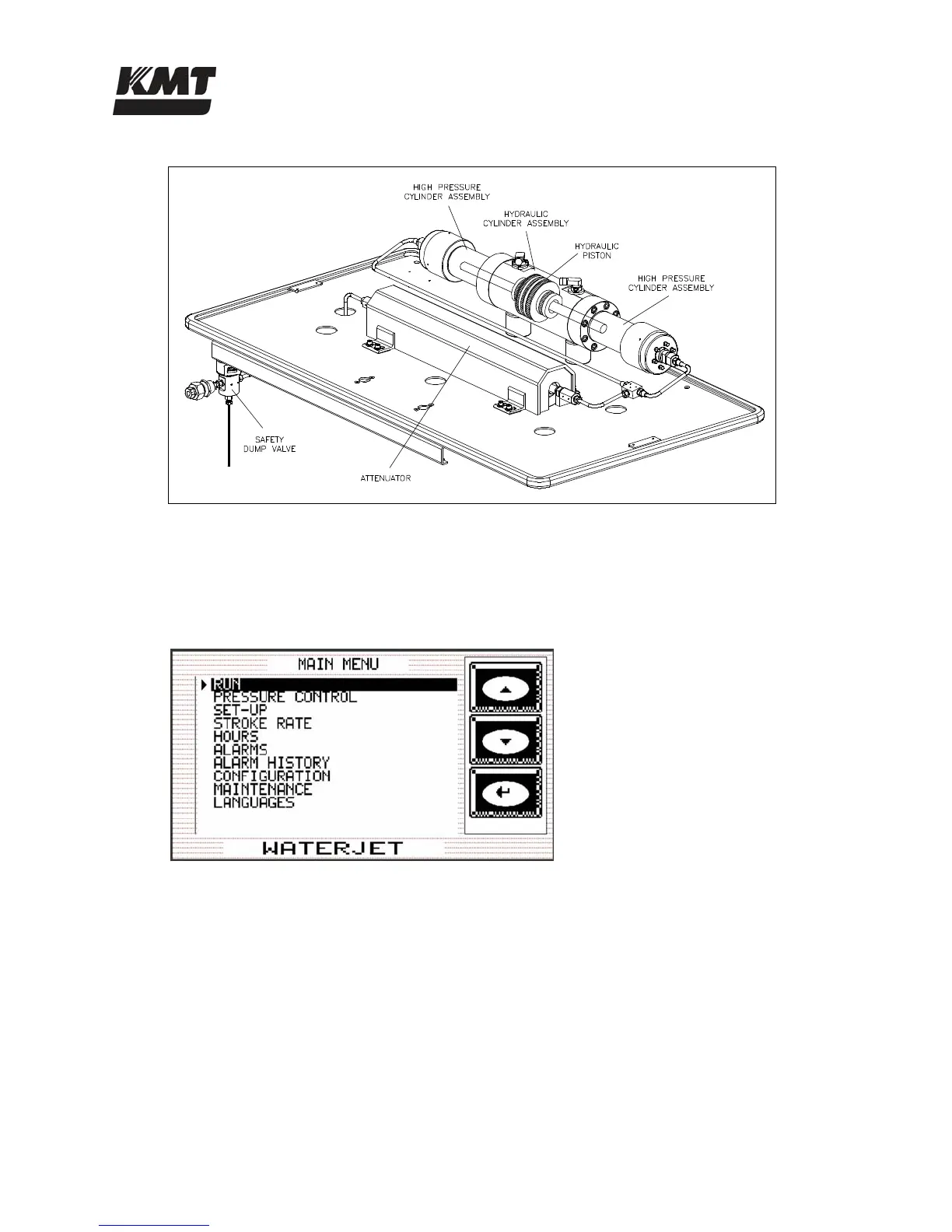

Figure 1-2: High Pressure Water System Components
Operating System
A programmable logic controller (PLC) provides basic intensifier shift control and monitors out
of limit conditions. Operator interface is through the control panel display where operating
parameters are set and monitored.
Figure 1-3: Control Panel Main Menu
