Section 2
Installation
20412922
8-2012/Rev 10
2-3
Table 2-1
Equipment Dimensions and Weight
Horsepower Length Width Height Weight
Redundant Models (same dimensions as above)
30 HP 2,200 lbs (998 kg)
50 HP 3,000 lbs (1,360 kg)
60 HP 3,500 lbs (1,588 kg)
100 HP 4,600 lbs (2,087 kg)
Transporting
The weight of the machine is not evenly distributed from one end to the other, particularly on the
larger horsepower models. Do not attempt to lift the machine from either end. Note the warnings
stamped on the crate. The center of gravity is clearly identified on the sides of the crate. The
forklift should be positioned accordingly.
When the machine has been removed from the crate, note the position of the fork pockets on the
bottom of the machine. The pockets are positioned in relationship to the center of gravity to
balance the weight on the forklift.

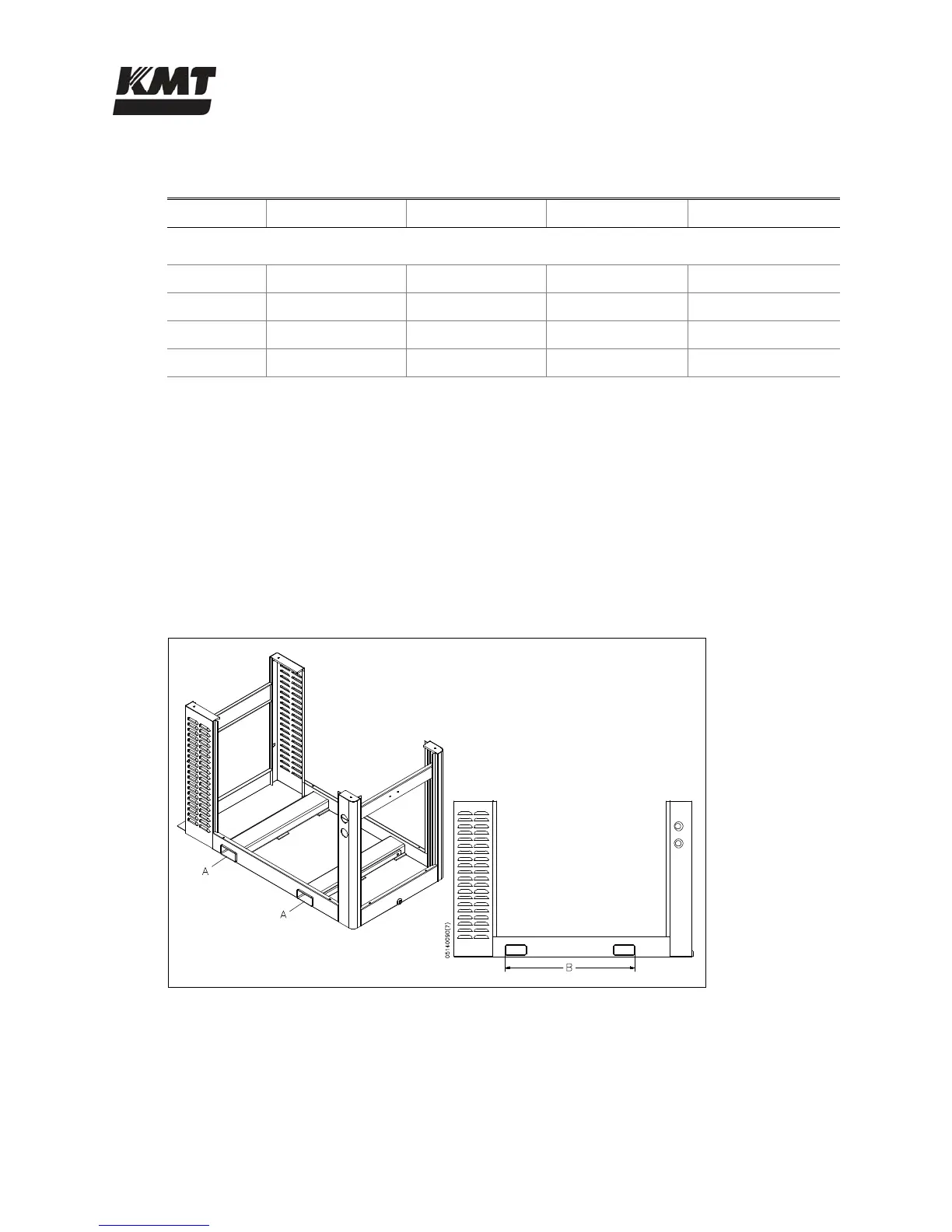

Figure 2-2: Fork Pockets
