Section 4
Operation
20412948
8-2012/Rev 04
4-18

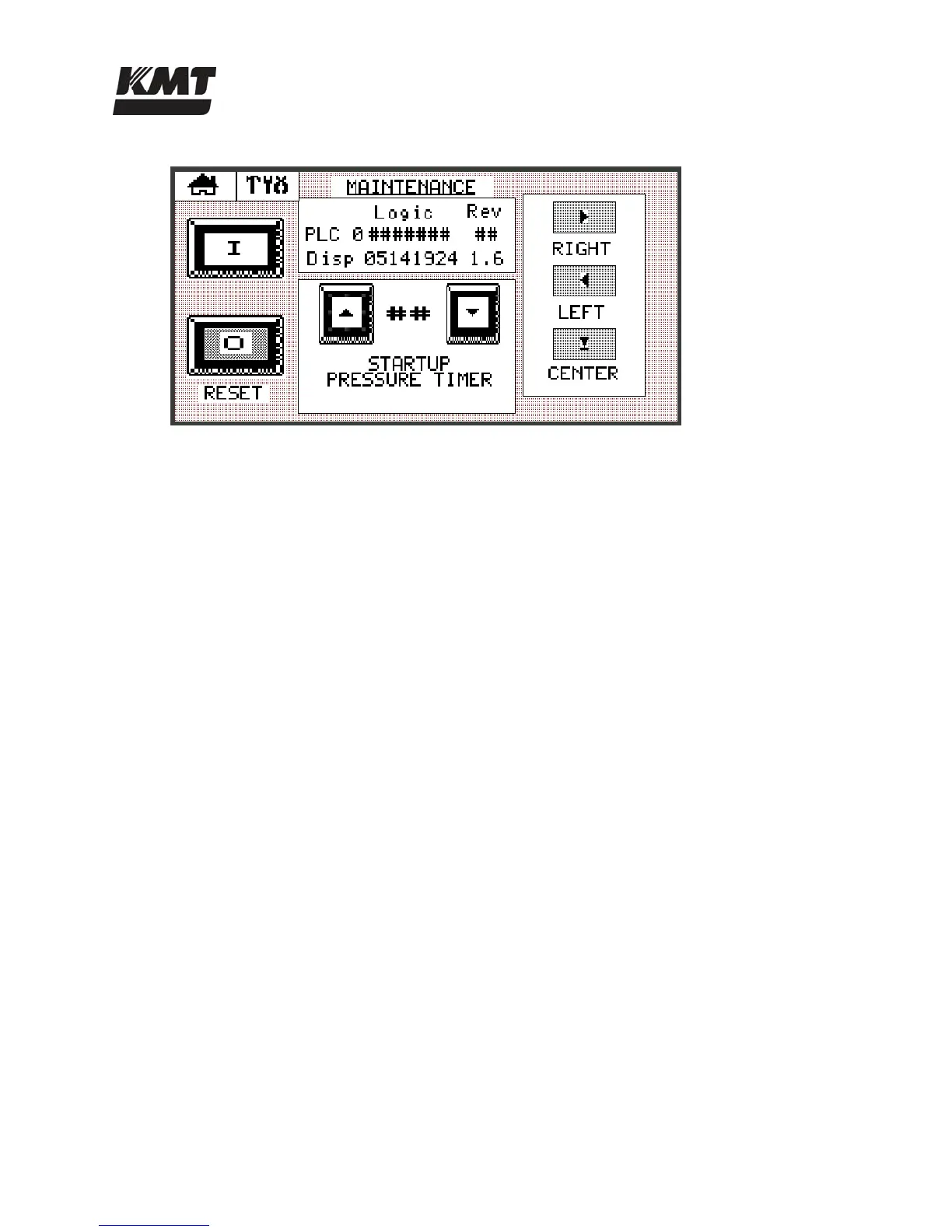

Figure 4-19: Maintenance Screen
The machine must be started from the Maintenance Screen to access the following functions:
START button will start the machine in recirculation mode and open the dump valve
STOP button will stop the machine
RESET is the inlet water solenoid indicator. The inlet water solenoid valve is automatically
closed five minutes after the machine shuts down. When it flashes, press the stop button
to reset and open the valve.
STARTUP PRESSURE TIMER; press the ▲ or ▼ arrow to select a startup time from 5-60
seconds. This will determine the startup time between low and high pressure operation.
RIGHT arrow will open the dump valve and extend the piston to the right, allowing full
exposure to the right plunger when the unit is disassembled. The unit must be completely
assembled to use this jog function.
LEFT arrow will open the dump valve and extend the piston to the left, allowing full
exposure to the left plunger when the unit is disassembled. The unit must be completely
assembled to use this jog function.
CENTER symbol will open the dump valve and position the piston in the center of the
hydraulic cylinder. To center the piston, first press the right arrow to extend the plunger
to the right, and then press the center symbol to center the piston. The unit must be
completely assembled to use this jog function.
4.16 Language Screen
The Language Screen lists the available display languages. Press the ▲ or ▼ arrow to highlight
the desired language. Press enter () to select.
