4.5 Run Screens
The Run Screen is the only location where the machine can be started to create pressure. After
five minutes on any other screen, the display will default to the Run Screen.
Run screens are configured according to equipment options. If machines are connected to a
header system that is controlled by the KMT Waterjet Balancing System, a number displays on
the top of the Run Screen to indicate the machine’s position within the system, as illustrated in
Figure 4-3.

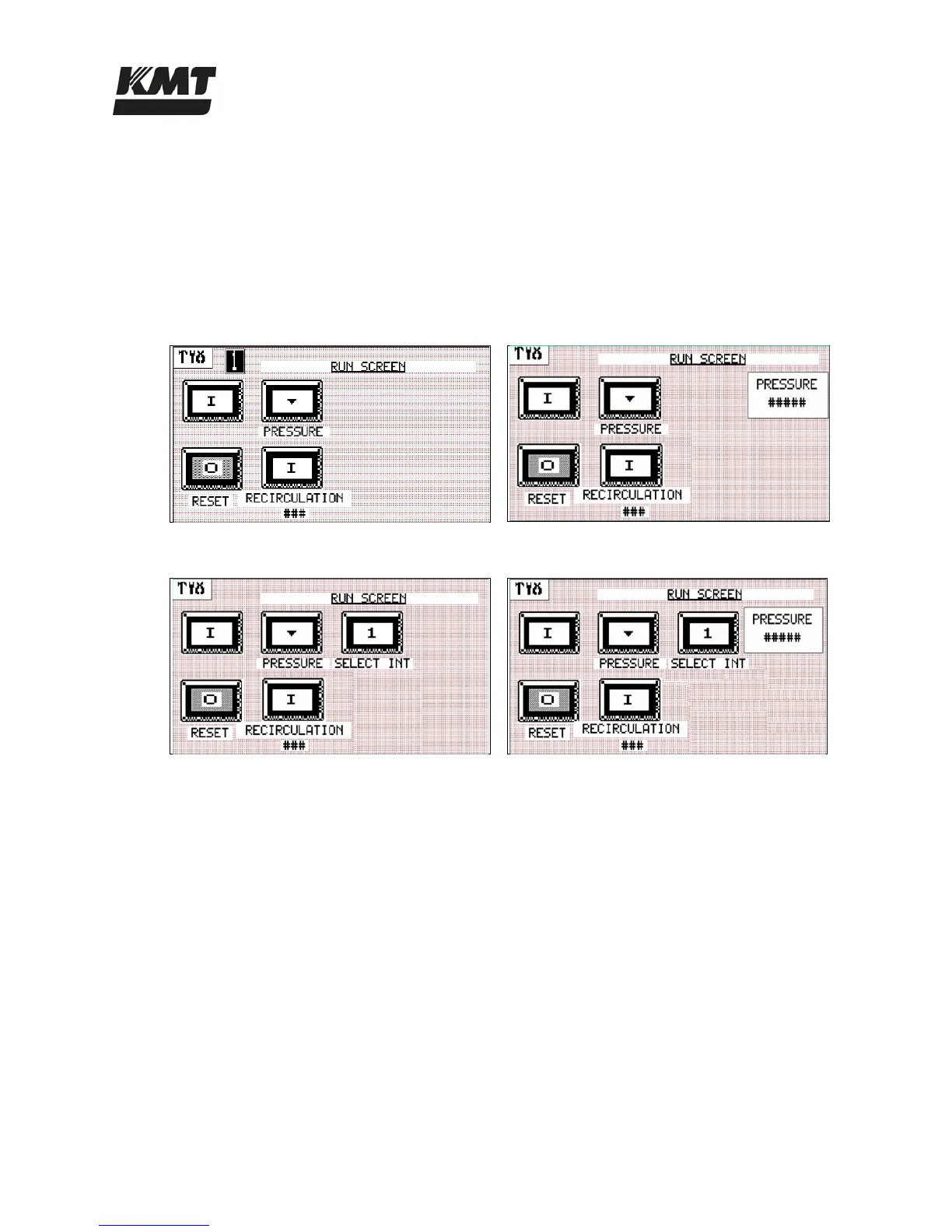

Figure 4-3: Run Screen - Standard Machine Figure 4-4: Run Screen - Pressure Transducer
Figure 4-5: Run Screen - Redundant Figure 4-6: Redundant and Pressure Transducer
The Run Screen displays the following functions:
START button flashes when the machine is ready to start. After the machine has been
stopped, there is a five-second delay before startup.
STOP button flashes to indicate the machine is on and can be stopped by pressing this
button
RESET is the inlet water solenoid indicator. The inlet water solenoid valve is automatically
closed five minutes after the machine shuts down. When it flashes, press the
STOP button
to reset and open the valve. This function can be disabled on the Set-Up Screen
PRESSURE switch; press the ▲ or ▼ arrow to select high or low pressure. When stopped
and restarted the machine will always start in low pressure. After 5-60 seconds,
depending on the interval selected by the operator, it will go to high pressure or remain in
low pressure, depending on the previous high/low pressure setting.
