Section 2
Installation
20412922
8-2012/Rev 10
2-10
Table 2-8
Coning and Threading Tools
Part Number
Hand Tools Power Tools
1/4” Coning Tool 05108832 05109897
3/8” Coning Tool 05108857 05109889
9/16” Coning Tool 05108840 05109871
1/4” Threading Tool 05108865 05122742
3/8” Threading Tool 05108873 05120258
9/16” Threading Tool 05108881 05122759
1/4” Tube Vise 05108782
3/8” Tube Vise 05108790
9/16” Tube Vise 05108774
Measurements and Dimensions
Tubing must be cut to the proper length, both ends of the tubing must then be coned, threaded and
deburred.
To determine the tube length, measure the distance between the fittings, and add two times the
engagement allowance shown in Table 2-9. Table 2-10 lists the required cone and thread
dimensions illustrated in Figure 2-6.

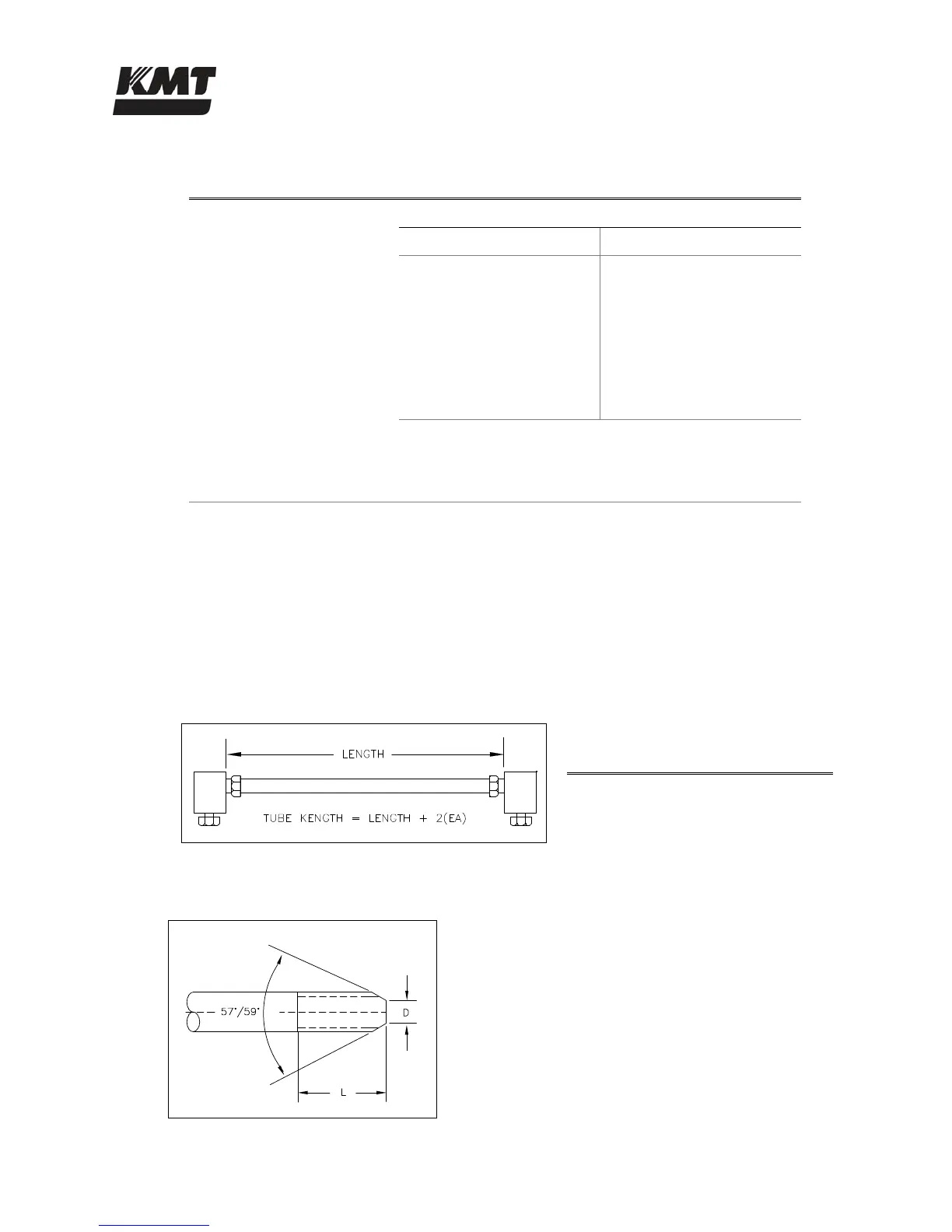

Figure 2-5: Tube Length
Table 2-9
Engagement Allowance (EA)
1/4” Tubing 0.49” (12.4 mm)
3/8” Tubing 0.68” (17.3 mm)
9/16” Tubing 0.86” (21.8 mm)
Figure 2-6: Cone and Thread Dimensions
