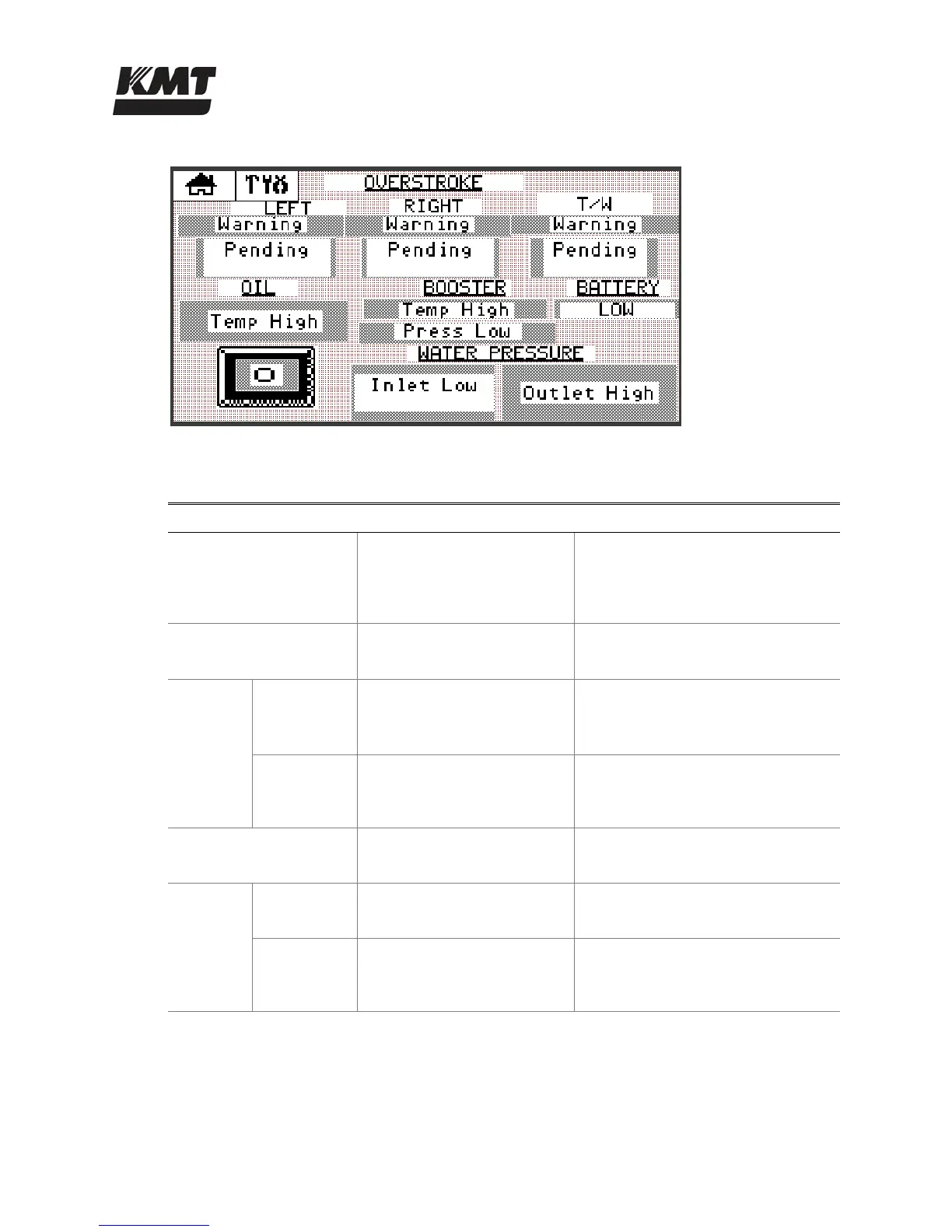

Figure 4-16: Alarms Screen
Table 4-5
Alarms Screen
Alarm Indication Result
Overstroke High stroke rate caused by
external or internal leak
First a warning, and then a pending
shutdown alarm will occur. If the
condition persists a shutdown will
occur.
Oil High oil temperature, in excess
of 150 F (65 C)
Shutdown will occur 60 seconds after
detection.
Booster
Temp High High booster water
temperature, in excess of 128
F (53 C)
Shutdown will occur 30 seconds after
detection.
Press Low Low water pressure from
booster pump, less than 60 psi
(4 bar)
Shutdown will occur 20 seconds after
detection.
Battery Low
Battery is low and needs to be
replaced
The battery will last approximately
seven days after the alarm occurs.
Water Pressure
Inlet Low Low inlet water pressure, less
than 30 psi (2 bar)
Shutdown will occur if condition
persists for 5 continuous seconds.
Outlet High Excessively high outlet water
pressure, in excess of 64,000
psi (4,413 bar)
Alarm available only if pressure
transducer is installed. Does not result
in a shutdown.
