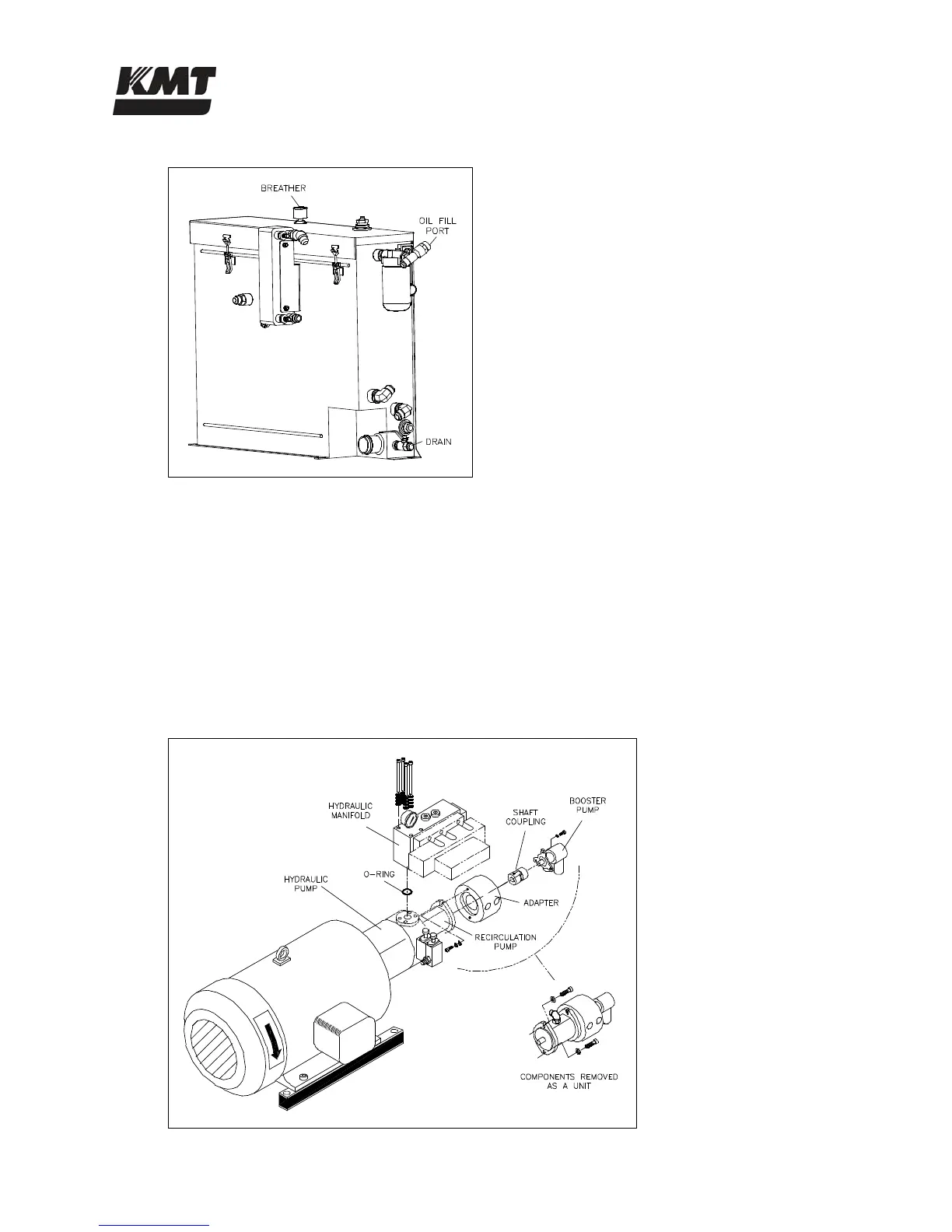

Figure 7-8: Hydraulic Reservoir
4. Disconnect all hydraulic hoses and connections to the case drain, hydraulic pump,
hydraulic manifold and recirculation pump.
5. Loosen the hydraulic gauge and turn it out of the way. Remove all electrical sensors and
connections to the hydraulic manifold.
6. Remove the four bolts on the top of the hydraulic manifold and remove the manifold and
o-ring.
7. Remove the booster pump, adapter and recirculation pump. These components can be
removed individually or as a unit by removing the two bolts that attach the recirculation
pump to the hydraulic pump.
Figure 7-9: Component Removal
