Table 12-3

Hydraulic Cartridge Seal

05146584

Item

Part

Number Description Quantity Item

Part

Number Description Quantity

1 05144530 Seal Bushing 1 5 10168912 O-Ring, 1.25 x 1.38 x .06 1

2 10142032 Packing Ring, 1.38 x 1.13 x .25 2 6 05116124 O-Ring, 1.50 x 1.63 x .06 1

3 10145431 O-Ring, 1.44 x 1.63 x .09 1 7 05116132 U-Cup Seal, 1.13 x 1.38 x .13 1

4 05116140 Backup Ring, 1.44 x 1.63 1

80085061 Rebuild Kit

Includes Items 2-7

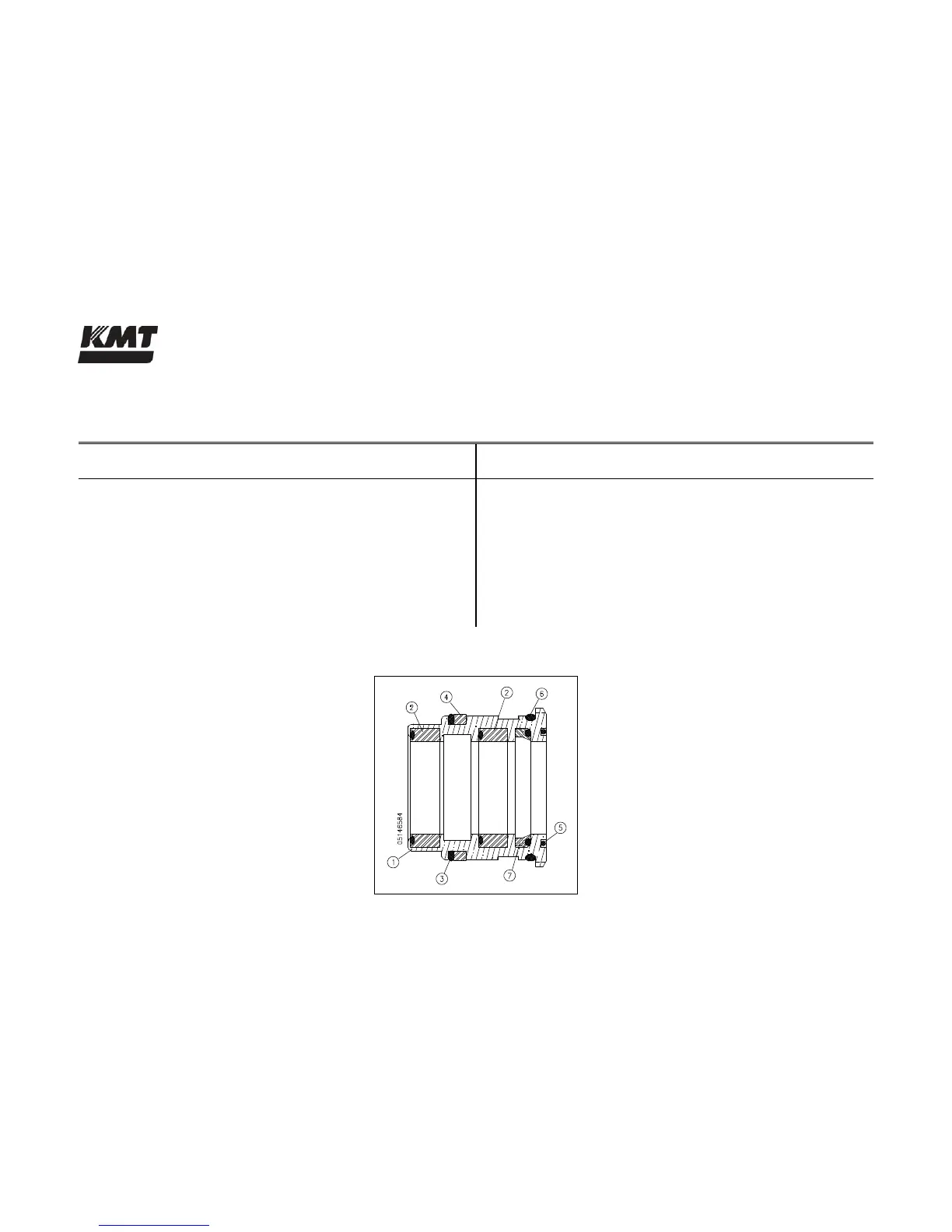

Figure 12-3: Hydraulic Cartridge Seal
