Design and function Diaphragm pump N85, N86
12 Translation of original Operating and Installation Instructions, english, KNF 121258-121528 01/20
5. Design and function

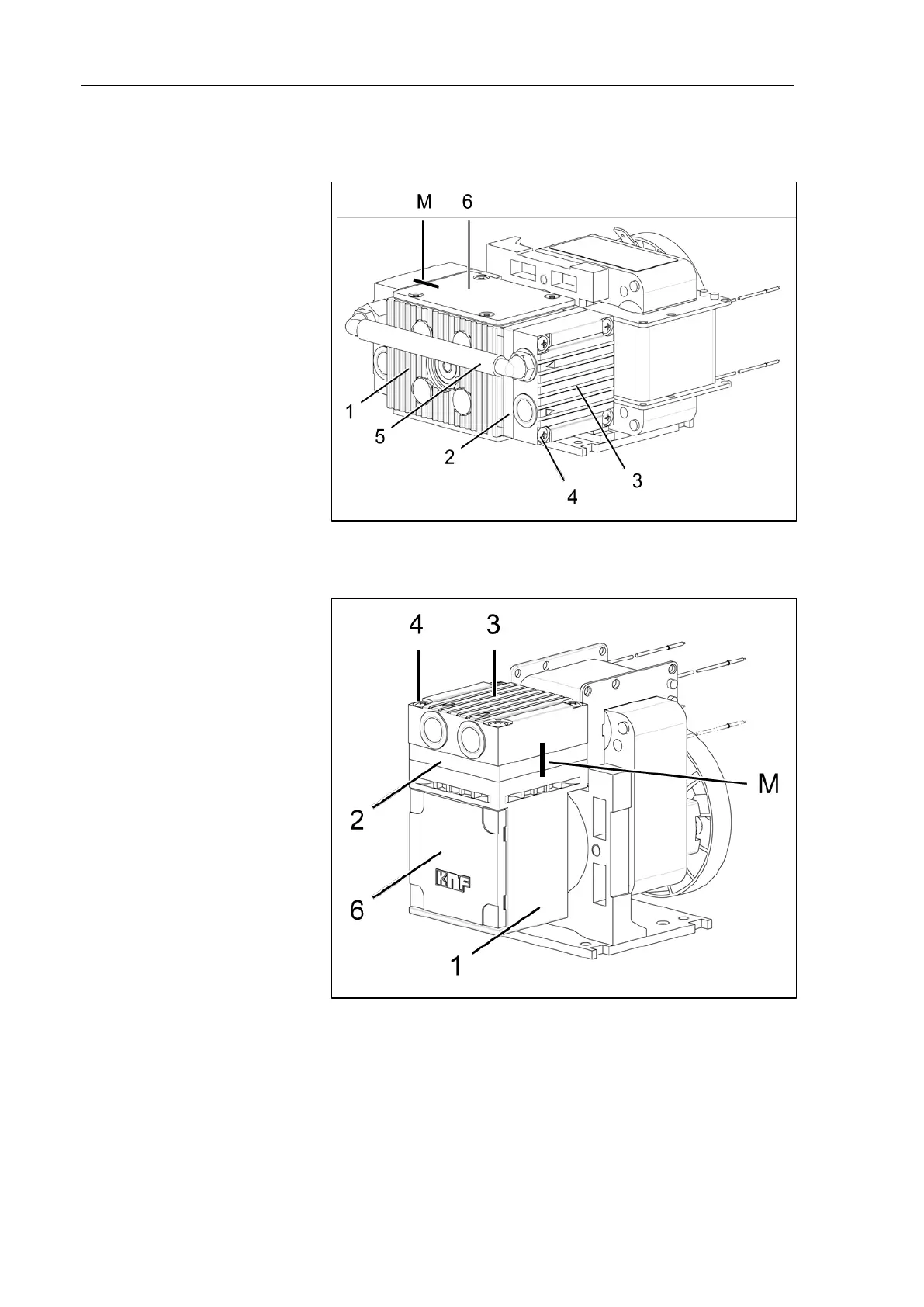

Design N85.3K_E
Fig. 1: Design N85.3K_E
Design N86K_E
Fig. 2: Design N86K_E
1 Inlet (suction side)
2 Pneumatic connection
3 Outlet (pressure side)
4 Motor
5 Electrical connection
1 Outlet (pressure side)
2 Inlet (suction side)
3 Motor
4 Electrical connection
