Diaphragm pump N85, N86 Installation and connection
Translation of original Operating and Installation Instructions, english, KNF 121258-121528 01/20 17

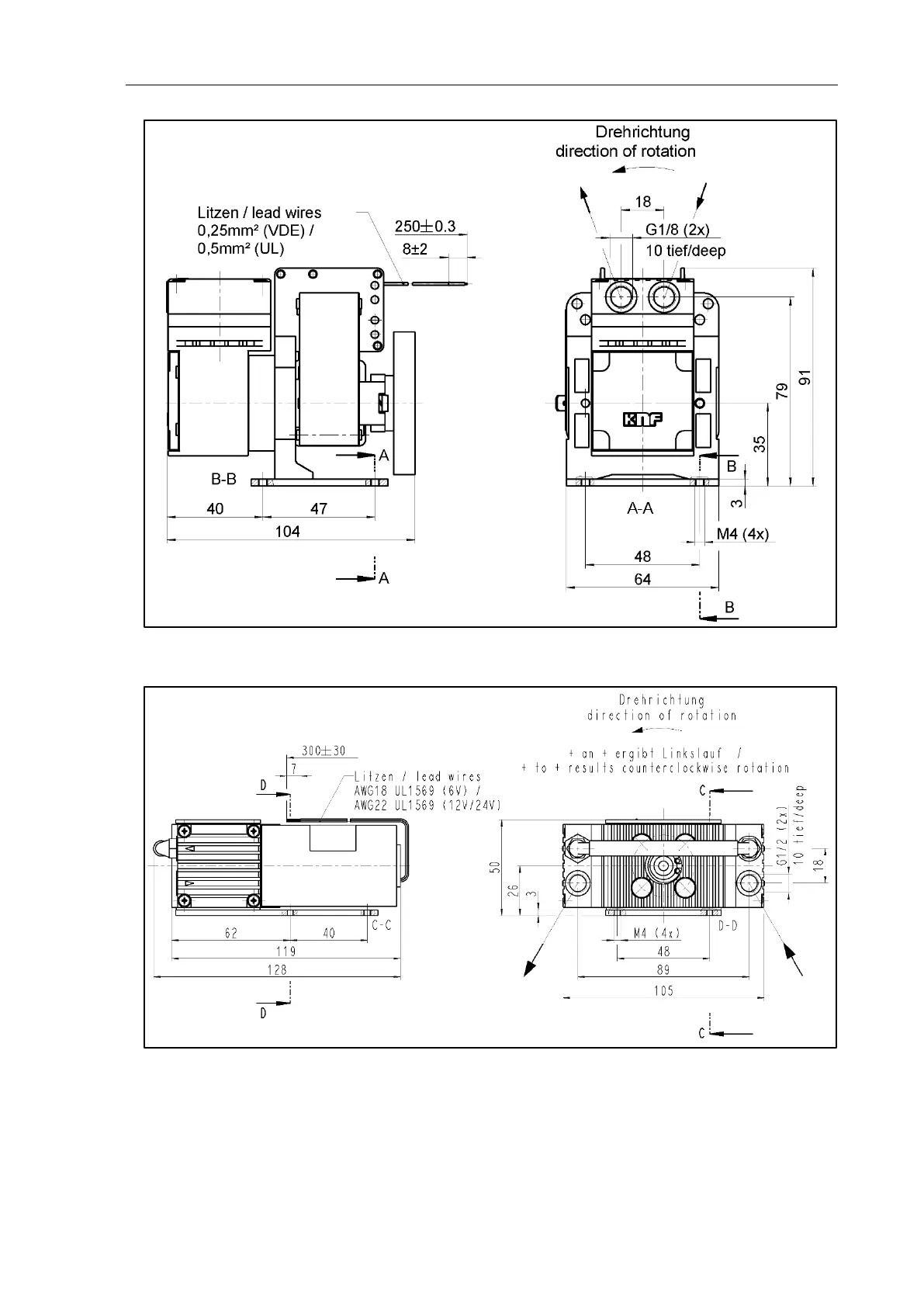

Fig. 8: Mounting dimensions pump series N86K_E
Fig. 9: Mounting dimensions pump series N85.3K_DC
