PREPARATION
SPRAY GUN SET-UP
TO PREVENT SERIOUS INJURY FROM EXPLOSION:
Use only clean, dry, regulated, compressed air to power this tool. Do not use
oxygen, carbon dioxide, combustible gases, or any other bottled gas as a
power source for this tool.
Lubricators should not be used with spray guns. The use of inline
lubricators will contaminate the material and will ruin the paint finish.
Before beginning assembly or operation of product, make sure all parts are
present. Compare parts with package contents list. If any part is missing or
damaged, do not attempt to assemble the product.
Estimated Assembly Time: 1-3 minutes.
Tools Required for Assembly (not included):
• 9/16 in. or Adjustable Wrench
• Thread Sealant Tape
• Female Plug
WARNING:
Air Supply Set-up
1. Not all accessories shown are included, but are recommended for best
performance (See Figure 1).
2. It is recommended that an in-line air filter be incorporated into the air supply.
1
1
o
w
l
F
r
i
A
3
H
4 3 4
7
5
6
6

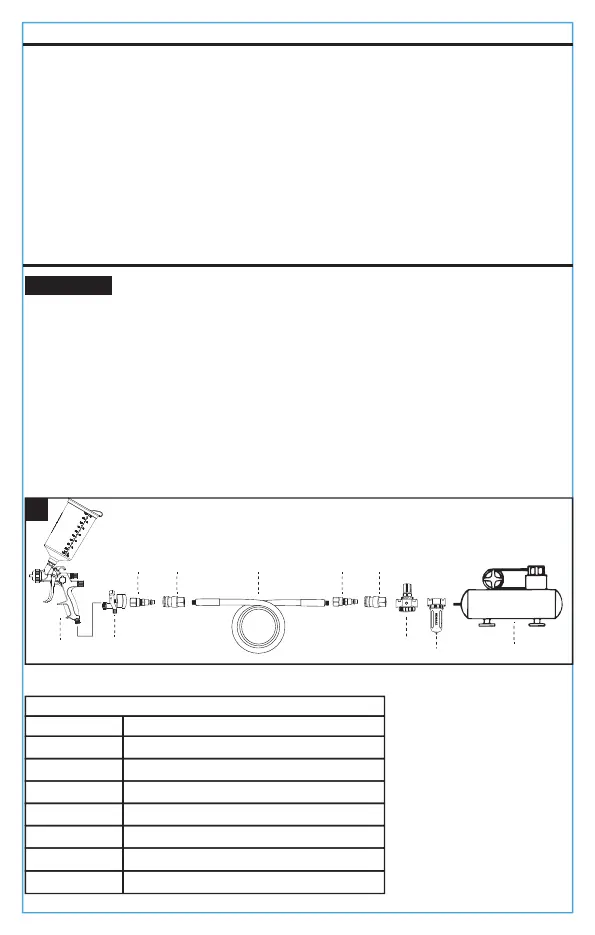

Recommended Air Line Set-Up
PART NO. Description
1
H
3
4
5
6
7
HVLP Spray Gun
Air Pressure Regulator
Female Plug (not included)
Female Coupler (not included)
Air Hose (not included)
In-Line Filter (not included)
Air Compressor (not included)
To Next Page
