SPRAYER SET-UP
NOTE: Please reference the Package Contents section when following the sprayer
setup instructions.
WARNING: Improper tool setup could cause serious personal injury and/or can
damage the tool.
WARNING: Do not overtighten any attachment when installing. Overtightening can
cause severe damage to the tool.

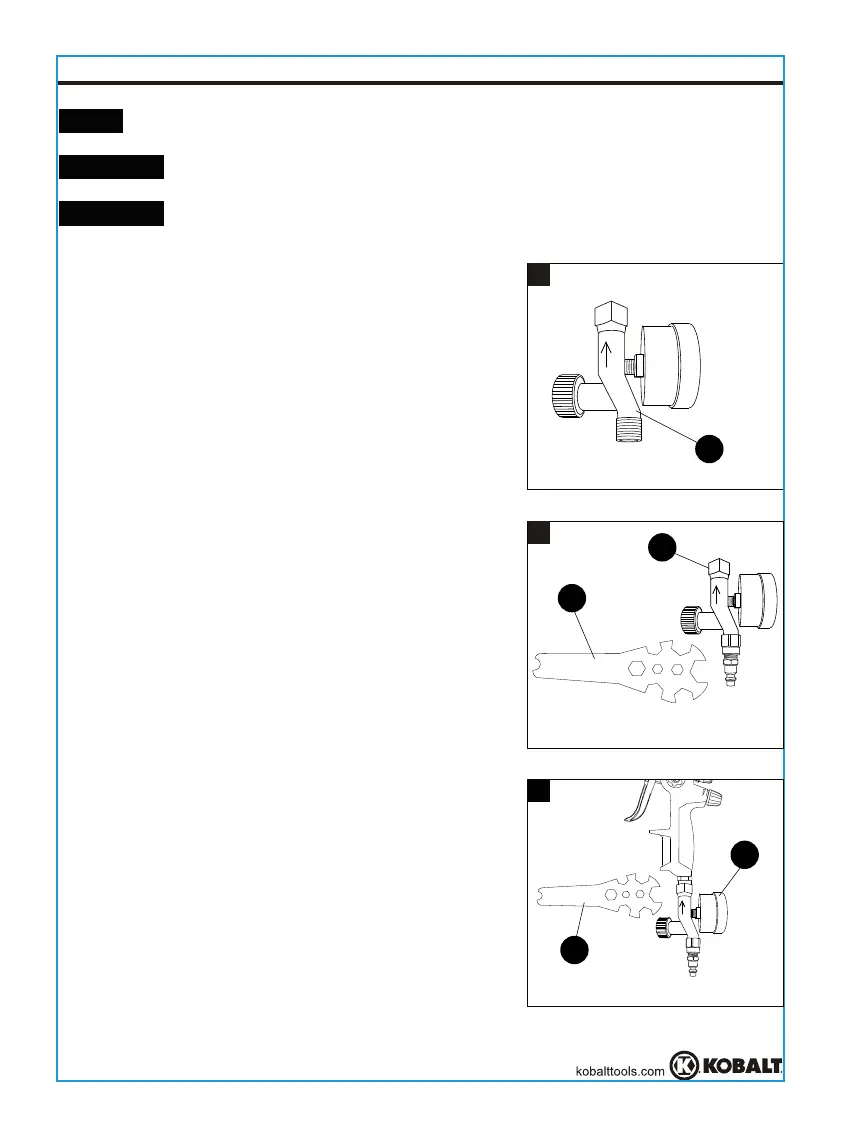

1. Apply 2-3 wraps of Thread Seal Tape (not included)
around the air inlet threads of the Air Pressure
Regulator (H).
2. Attach the Female Plug (not included) to the air
inlet on the Air Pressure Regulator (H). Tighten
by turning clockwise, using the wrench (J) (17mm)
to tighten securely.
3. Attach the Air Pressure Regulator (H) to the Air
Intake on the handle bottom. Tighten by turning
clockwise, using the wrench (J) (17mm) to tighten
securely.
1
2
3
AIR SUPPLY SET-UP
Air Flow
Air Flow
Air Flow
H
H
J
H
J
To Next Page
