10
PREPARATION / PRE-ASSEMBLY INSTRUCTIONS
AIR SUPPLY SET-UP
Before beginning assembly or operation of product, make sure all parts are present.
Compare parts with package contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 3 minutes.
NOTE: The life of this product and the efficiency of its operation depends upon the
knowledge of its construction, usage and maintenance. Not all accessories shown
are included, but recommended for best performance (See Figure 1).
WARNING: TO PREVENT SERIOUS INJURY FROM EXPLOSION:
Use only clean, dry, regulated, compressed air to power this tool. Do not use oxygen,
carbon dioxide, combustible gases, or any other bottled gas as a power source for
this tool.
WARNING: TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Do not install a female coupler directly onto the tool. This type of coupler will allow
the air tool to retain pressure and operate accidently after the air supply is
disconnected.
WARNING: Lubricators should not be used with spray guns, the use of inline
lubricators will contaminate the material and will ruin the paint finish.

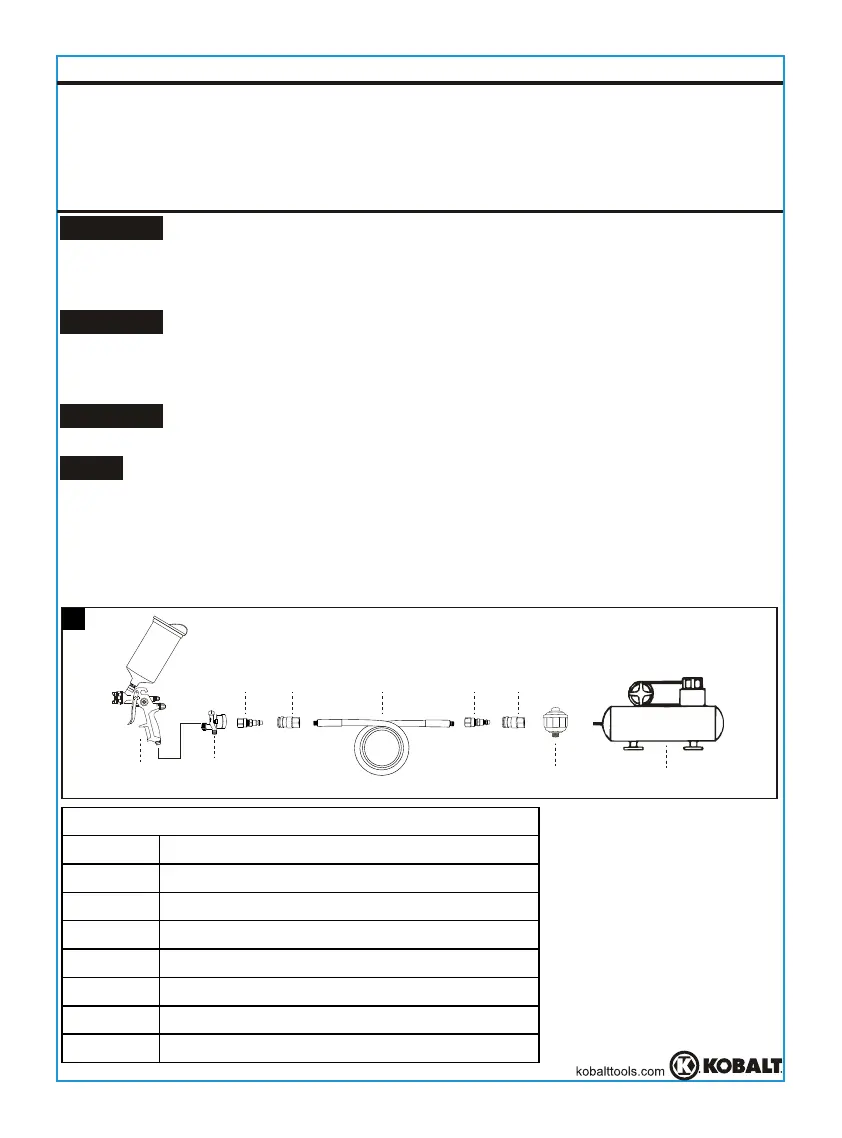

Recommended Air Line Set-Up
DPART NO. escription
H
1
1
H
3
4
5
6
7
VLP Spray Gun
Air Pressure Regulator
Female Plug (not included)
Female Coupler (not included)
Air Hose (not included)
In-Line Filter (not included)
Air Compressor (not included)
H
3 4 5 3 4
6 7
Air Supply Set-up
1. It is recommended that an in-line air filter be incorporated into the air supply.
1
wo
l
F
r
i
A
