17

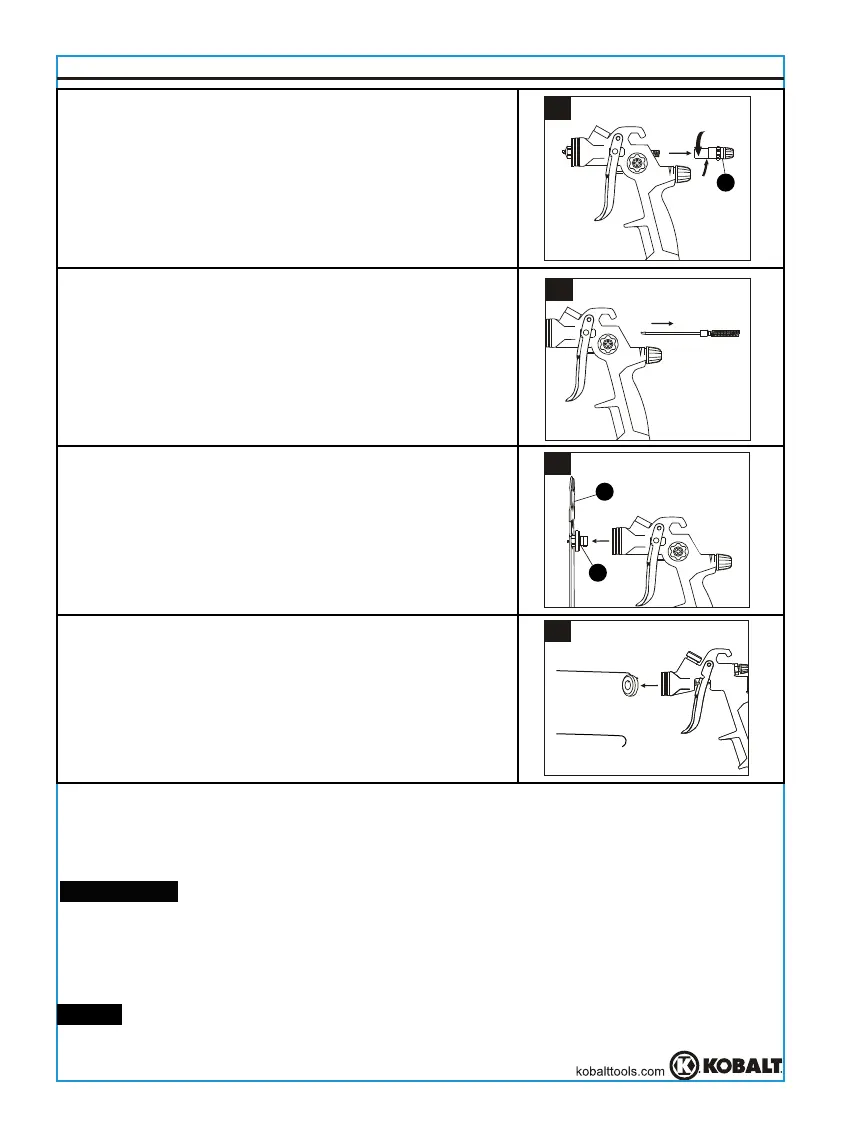

CARE AND MAINTENANCE
8
9
Wire Hook
8. Unscrew the Fluid Nozzle (B) by turning
counterclockwise using the wrench (J) (13 mm)
and place it in the secondary container to soak
3 – 5 minutes.
9. Pull out the Air Distribution Ring using Wire Hook
(not included), using a damp cloth with cleaning
solution on it wipe off the Air Distribution Ring
and set it aside.
10. After 3-5 minutes, remove each item and use a clean dry towel to wipe off the
entire item and inspect it for any remaining paint or dirt to wipe remains.
11. If paint or dirt debris is still present, use a non-wire soft bristle brush and brush
the area.
IMPORTANT: To ensure all residue of material is removed from the part, use a
blow gun with an approved OSHA gun tip to blow any excess cleaning solution off
the part that a rag cannot get to.
NOTE: Steps 10 and 11 may need to be repeated multiple times depending on the
paint and cleaning solution used.
6. Unscrew the Fluid Adjustment Knob (D) by turning
counterclockwise, using a damp cloth with
cleaning solution on it wipe off the fluid adjustment
knob and set it aside.
7. Pull out needle spring and the paint needle. Using
a damp cloth, wipe off the paint needle and set
them aside.
7
Counterclockwise
6
D
J
B
To Next Page
